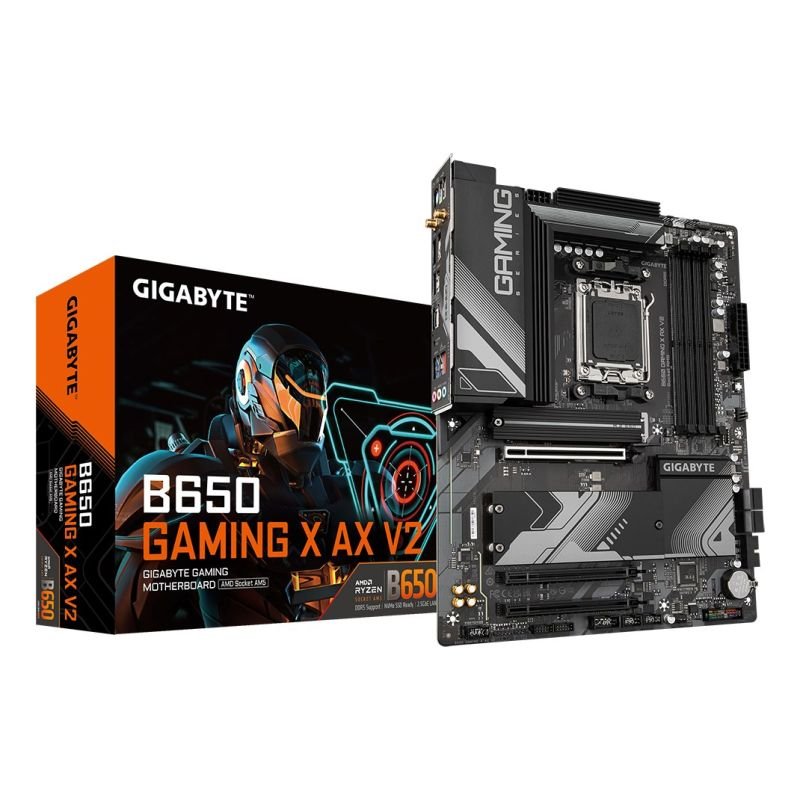

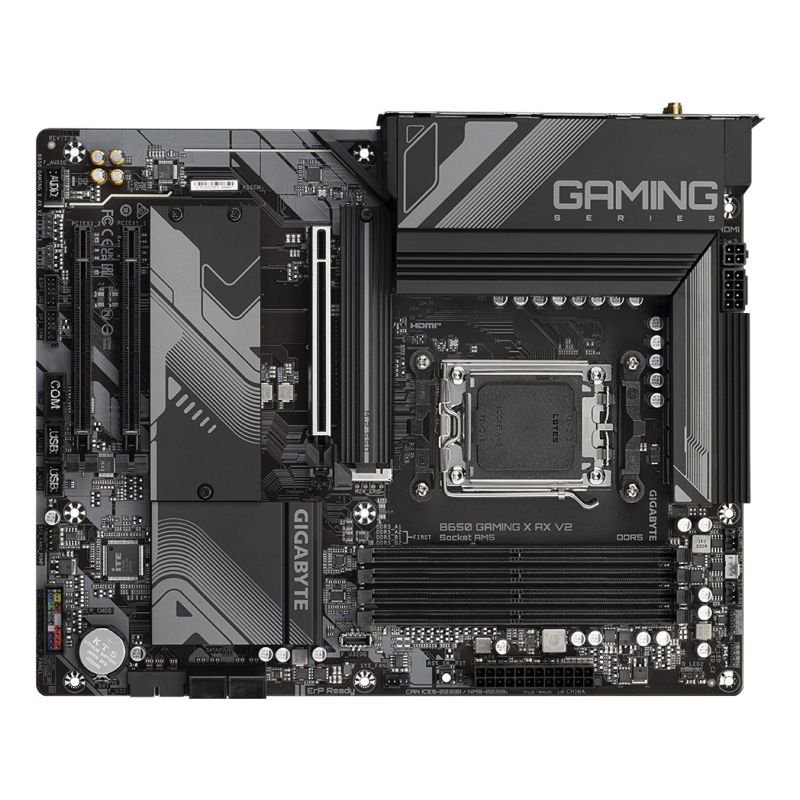

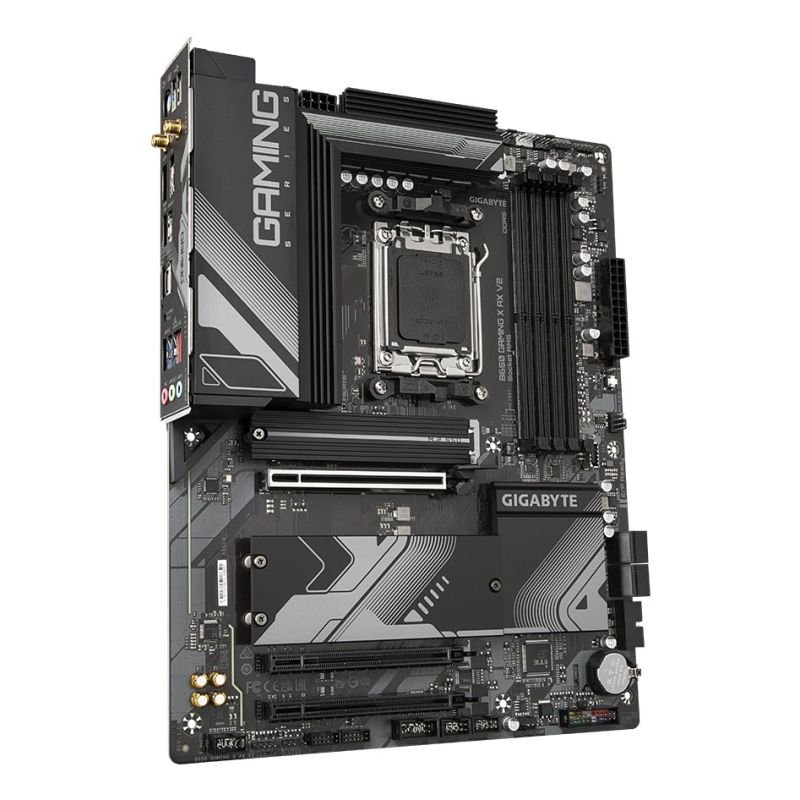

Gigabyte B650 GAMING X AX V2 motherboard

Technical details Warranty period: 3 years Processor Supported CPU sockets: Socket AM5 Processor AMD Ryzen 8000 Series AMD Ryzen 9000 Series AMD Ryzen 7000 Series Processor manufacturer: AMD Processor socket: Socket AM5 Graphics HDCP: Yes DirectX Version: 12.0 Maximum resolution: 4096 x 2160 px Parallel Processing Support: Not Supported Memory Unbuffered memory: Yes Memory slot type: DIMM Maximum memory capacity: 256 GB Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory Channel Support: Dual Channel Maximum internal memory per slot: 64 GB Supported memory clock speed (max): 8000 MHz ECC Compatibility: Non-ECC Supported memory clock speeds 4400 MHz 8000 6600 6800 4800 MHz 7000 6200 MHz 7200 6000 MHz 5200 MHz 5600 MHz 6400 MHz 7800 7600 Characteristics Supported Windows operating systems Windows 11 x64 Windows 10 x64 Audio chip: Realtek ALC897 Chipset Board Family: AMD Audio output channels: 7.1 ch. Monitoring computer status Tension Temperature Fan Water cooling Product color: Brown Power supply type: ATX Motherboard format: ATX Motherboard Layout: AMD B650 Weight and dimensions Product width: 305 mm Product height: 35 mm Product depth: 244 mm Internal I/O Serial port connector: 1 ATX power socket (24-pin): Yes Number of USB 2.0 ports: 2 Number of SATA III connectors: 4 12V power connector: Yes Front panel connector: Yes Number of case fan connectors: 3 USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 TPM Connector: Yes EPS power supply connector (8-pin): Yes RGB LED: Yes CPU fan connector: Yes Front panel audio connector: Yes Number of CPU fan connectors: 2 Number of RGB LED connectors: 5 Number of water pump connections: 2 USB 3.2 Gen 2×2 ports: 1 Number of EPS power connectors (8-pin): 1 Network Basic Wi-Fi standard: Wi-Fi 6E (802.11ax) Wi-Fi standards Wi-Fi 6E (802.11ax) Wi-Fi 5 (802.11ac) 802.11g 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 4 (802.11n) 802.11b Wired LAN: Yes WLAN controller model: Realtek RTL8852CE Bluetooth version: 5.3 Wi-Fi: Yes Ethernet interface type: 2.5 Gigabit Ethernet Bluetooth: Yes LAN controller: Realtek RTL8125 BIOS BIOS Type: UEFI AMI Desktop Management Interface (DMI) Version: 2.7 Clear CMOS Jumper: Yes Packaging data Package depth: 270 mm Package width: 335 mm Package height: 80 mm Weight with packaging: 2.16 kg Package contents Antenna Included: Yes Screws Included: Yes Batteries included: Yes Memory drivers RAID Service: Yes RAID levels 0 10 1 Number of supported storage drive sizes: 7 Number of supported HDDs: 4 Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD Rear Panel I/O Ports DisplayPort Quantity: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 DisplayPort version: 1.4 HDMI version: 2.1 Line Input: Yes Headphone outputs: 1 Number of Ethernet LAN ports (RJ-45): 1 WiFi-AP Antenna Jack Plug: 2 Number of USB 2.0 ports: 3 Number of HDMI ports: 1 Microphone: Yes Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Expansion slots Number of M.2 (M) slots: 3 PCI Express x16 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 2nd largest M.2 key size: 25110 1. M.2 highest generation PCI Express: 5.0 1. largest M.2 key size: 25110 2. M.2 highest generation PCI Express: 4.0 3. largest M.2 key size: 25110 3. M.2 highest generation PCI Express: 4.0 Battery Battery type: Lithium-Manganese Dioxide (LiMnO2) Supported battery type: CR2032 Number of battery compartments: 1 Battery weight: 3 g Lithium battery weight: 0.07 g Logistics data Products per shipping crate (inner): 1 pc. Country of origin: China Safety warning Warnings Dispose of in accordance with local regulations for electronic waste. Do not disassemble to avoid damage to internal components and voiding the warranty. Avoid contact with liquids to prevent electronic damage.
