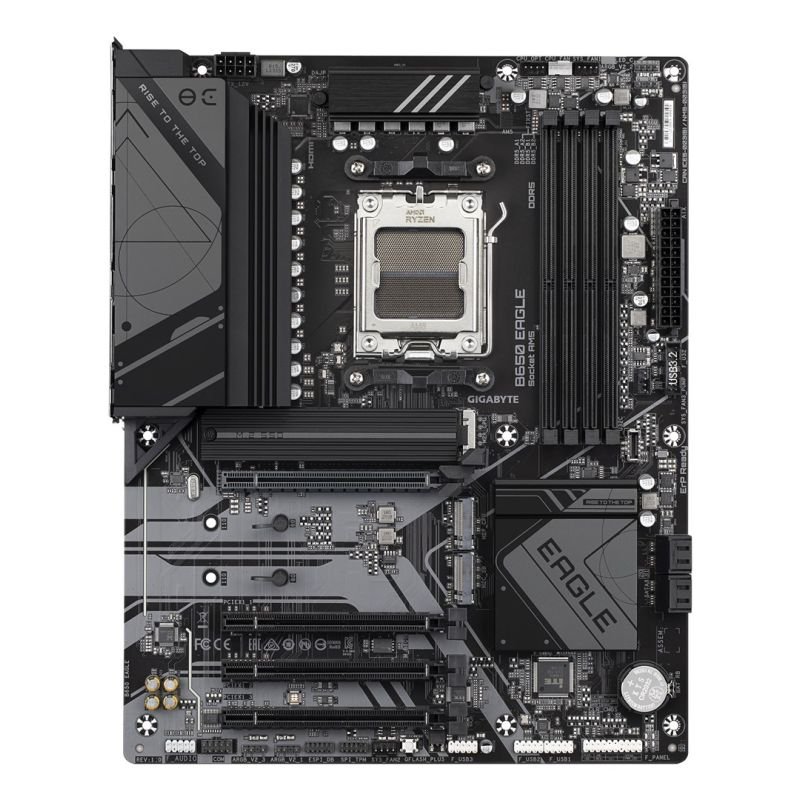

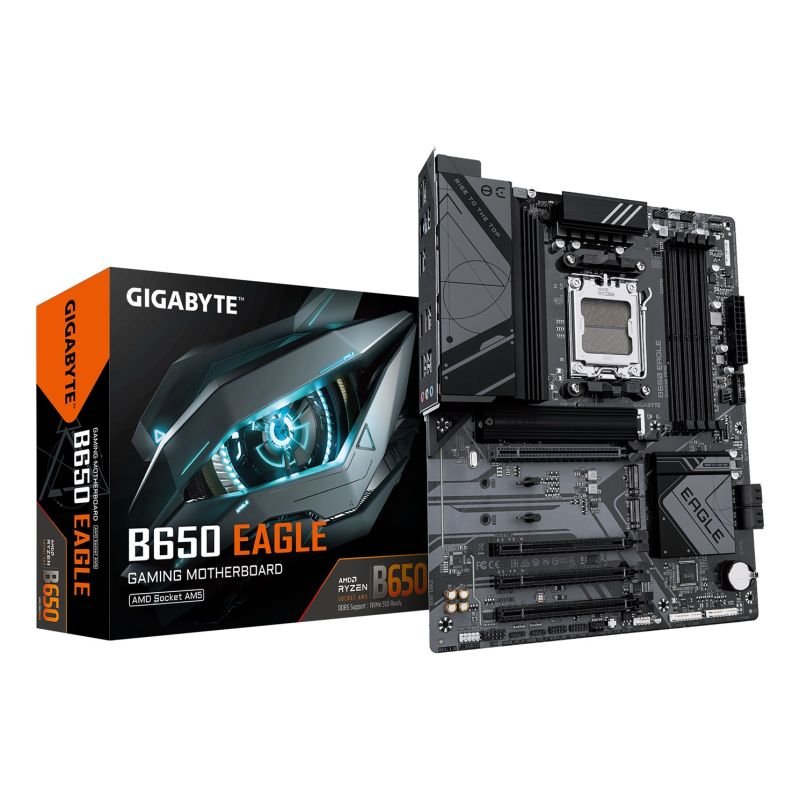

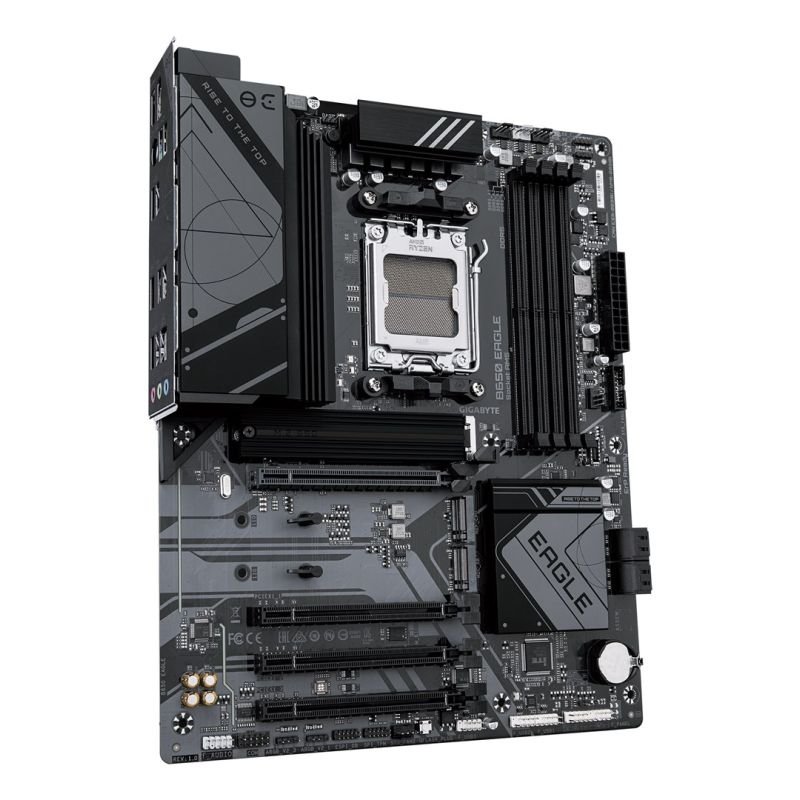

Gigabyte B650 EAGLE motherboard

Technical details Warranty period: 3 years Processor Processor manufacturer: AMD Supported CPU sockets: Socket AM5 Processor AMD Ryzen 8000 Series AMD Ryzen 9000 Series AMD Ryzen 7000 Series Processor socket: Socket AM5 Graphics Parallel Processing Support: Not Supported Maximum resolution: 4096 x 2160 px HDCP: Yes DirectX Version: 12.0 Memory Maximum memory capacity: 256 GB Number of memory slots: 4 Memory Channel Support: Dual Channel Memory slot type: DIMM Unbuffered memory: Yes Supported memory types: DDR5-SDRAM Supported memory clock speed (max): 7600 MHz Supported memory clock speeds 4400 MHz 6600 6800 6000 MHz 5200 MHz 5600 MHz 6400 MHz 7200 7600 4800 MHz 7000 6200 MHz ECC Compatibility: Non-ECC Maximum internal memory per slot: 64 GB Characteristics Supported Windows operating systems Windows 10 x64 Windows 11 x64 Audio chip: Realtek ALC897 Monitoring computer status Tension Fan Temperature Water cooling Chipset Board Family: AMD Power supply type: ATX Product color: Brown Motherboard Layout: AMD B650 Audio output channels: 7.1 ch. Motherboard format: ATX Weight and dimensions Product width: 305 mm Product height: 35 mm Product depth: 244 mm Internal I/O Number of SATA III connectors: 4 ATX power socket (24-pin): Yes CPU fan connector: Yes 12V power connector: Yes Front panel audio connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 Front panel connector: Yes USB 3.2 Gen 2 (3.1 Gen 2) ports: 1 TPM Connector: Yes Serial port connector: 1 Number of case fan connectors: 3 RGB LED: Yes EPS power supply connector (8-pin): Yes Number of USB 2.0 ports: 3 Number of CPU fan connectors: 2 Number of water pump connections: 2 Number of RGB LED connectors: 4 Network Ethernet interface type: Gigabit Ethernet Wi-Fi: No Wired LAN: Yes LAN Controller: Realtek RTL8111H BIOS BIOS Type: UEFI AMI Clear CMOS Jumper: Yes Desktop Management Interface (DMI) Version: 2.7 Packaging data Package depth: 270 mm Weight with packaging: 1.82 kg Package width: 335 mm Package height: 80 mm Package contents Screws Included: Yes Batteries included: Yes Memory drivers RAID Service: Yes Number of supported HDDs: 4 Supported hard drive interfaces: M.2, SATA III RAID levels 10 0 1 Supported drive types: HDD & SSD Number of supported storage drive sizes: 7 Rear Panel I/O Ports DisplayPort Quantity: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2 Number of USB 2.0 ports: 6 Microphone: Yes Line Input: Yes Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 1 HDMI version: 2.1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 DisplayPort version: 1.4 Number of PS/2 ports: 1 Headphone outputs: 1 Expansion slots Number of M.2 (M) slots: 3 PCI Express x16 (Gen 3.x) slots: 3 PCI Express x16 (Gen 4.x) slots: 1 3. M.2 highest generation PCI Express: 4.0 1. largest M.2 key size: 25110 2nd largest M.2 key size: 22110 2. M.2 highest generation PCI Express: 4.0 1. M.2 highest generation PCI Express: 5.0 3. largest M.2 key size: 22110 Battery Battery type: Lithium-Manganese Dioxide (LiMnO2) Supported battery type: CR2032 Battery weight: 3 g Number of battery compartments: 1 Lithium battery weight: 0.07 g Logistics data Country of origin: China Products per shipping crate (inner): 1 pc. Safety warning Warnings Avoid contact with liquids to prevent electronic damage. Do not disassemble to avoid damage to internal components and voiding the warranty. Dispose of in accordance with local regulations for electronic waste.
