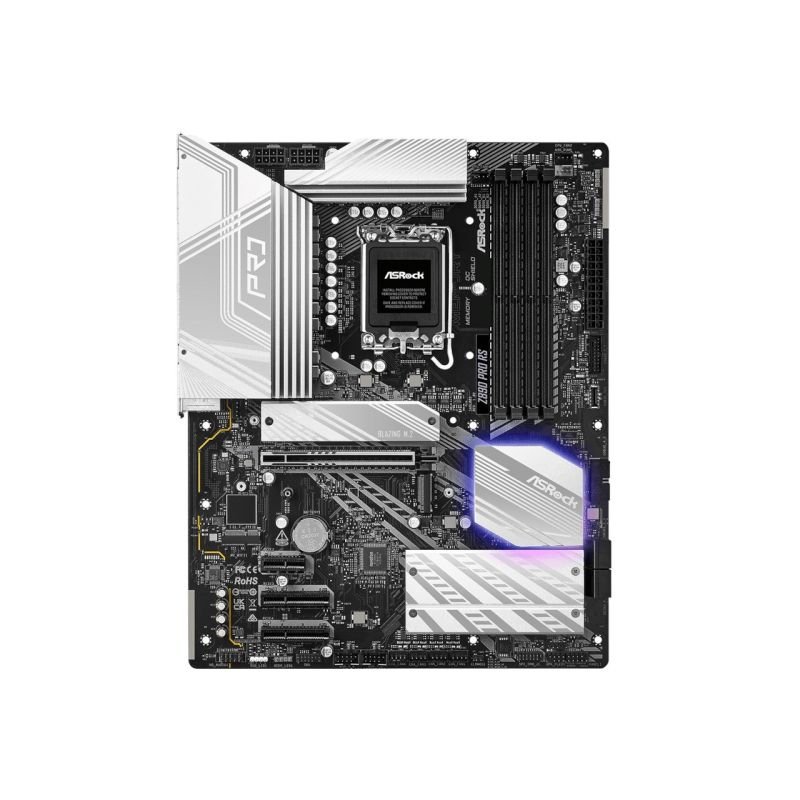

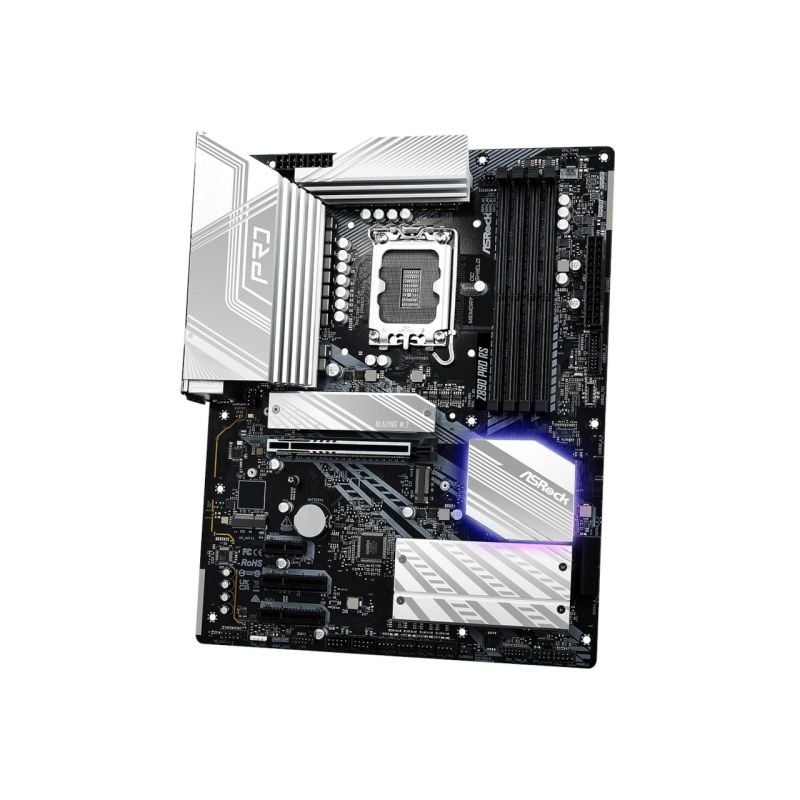

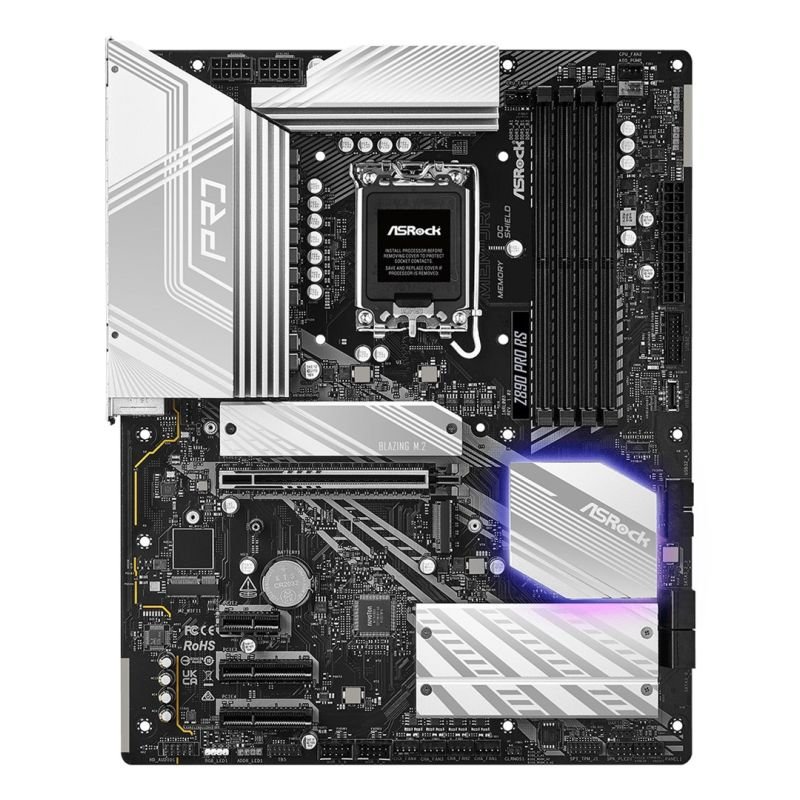

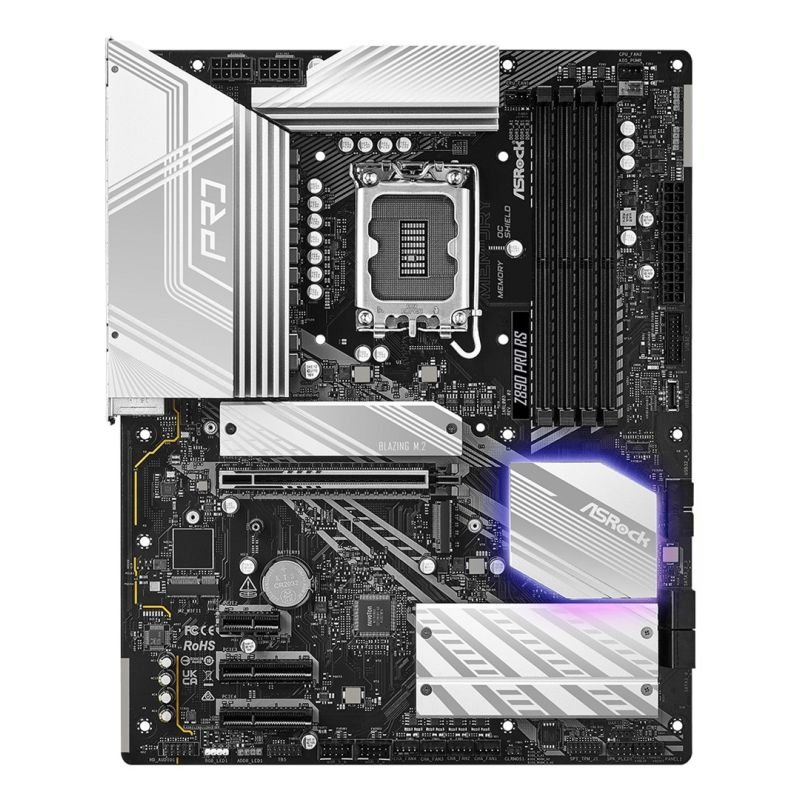

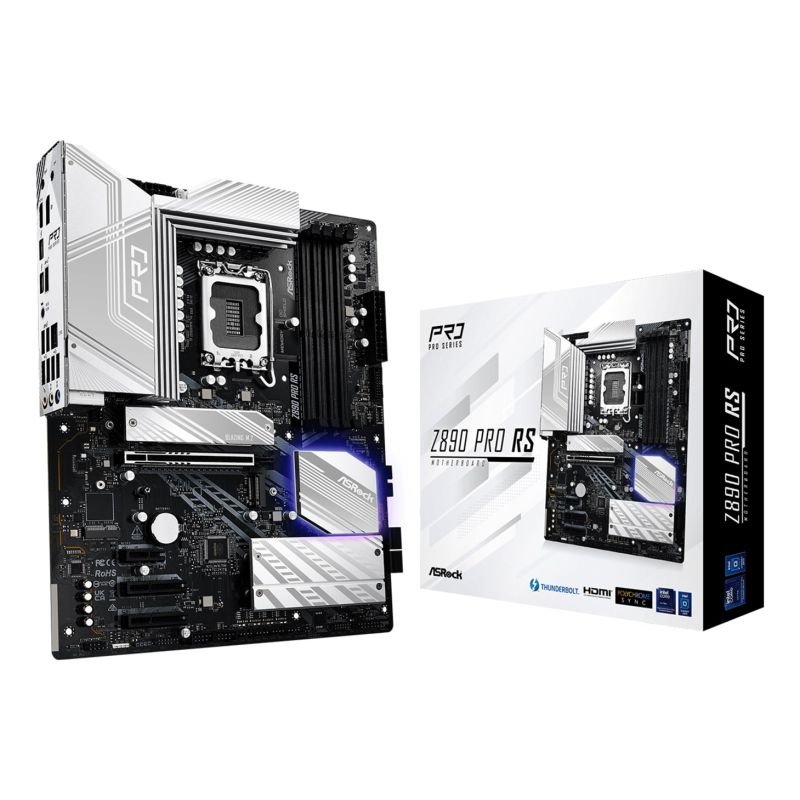

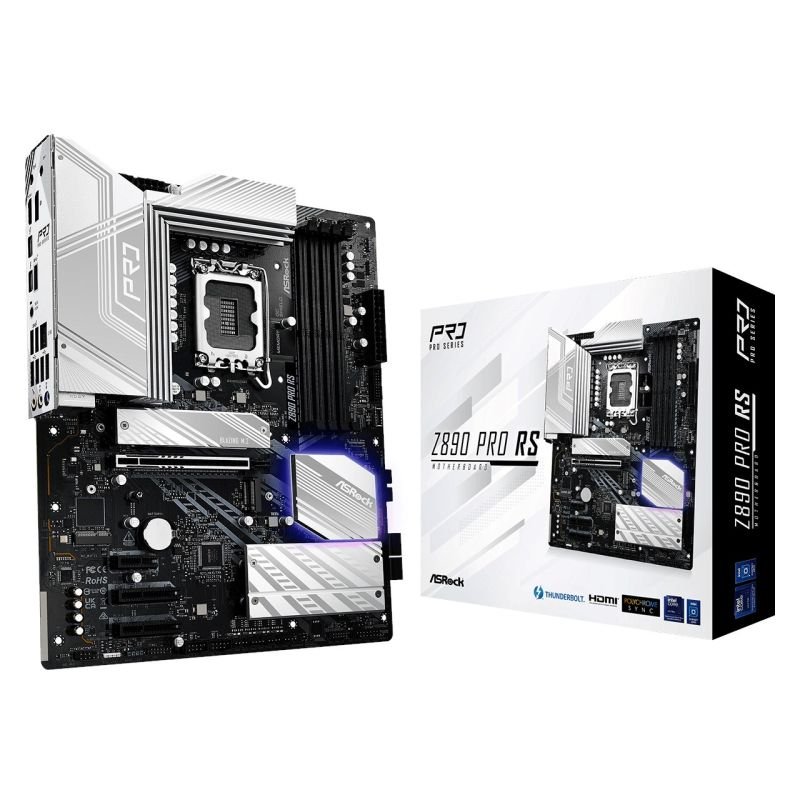

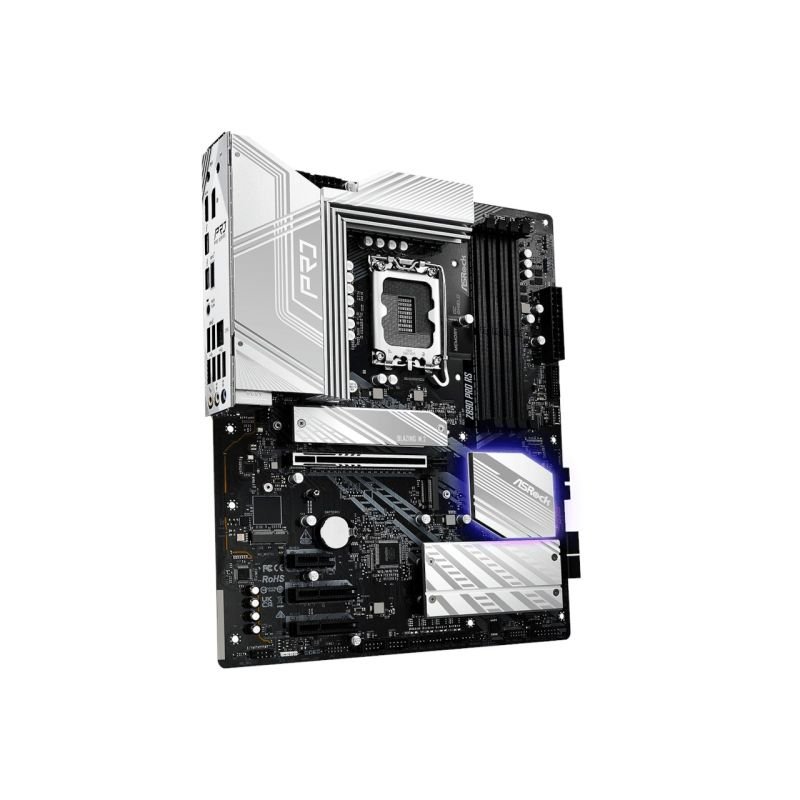

ASRock Z890 Pro RS Motherboard

Processor Processor socket: LGA 1851 (Socket V1) Processor manufacturer: Intel Processor: Intel Core Ultra (Series 2) Memory Unbuffered memory: Yes Number of memory slots: 4 Memory slot type: DIMM Maximum memory capacity: 256 GB Supported memory clock speed (max): 9066 MHz Memory Channel Support: Dual Channel Supported memory types: DDR5 non-ECC Characteristics Audio chip: Realtek ALC897 Audio output channels: 7.1 ch. Supported Windows operating systems: Windows 11 x64 Chipset Board Family: Intel Motherboard format: ATX Motherboard Layout: Intel Z890 Operating system architecture: 64-bit Internal I/O ATX power socket (24-pin): Yes Front panel audio connector: Yes LED and speaker power socket: 1 SPI TPM socket: 1 Number of SATA III connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Number of USB 2.0 ports: 2 AIO Pump Fan Connector: 1 CPU fan connector: 2 8-pin 12V power connector: 2 Case fan connector (4-pin): 5 Addressable LED connectors: 3 Number of USB 3.2 Gen 2×2 Type-C ports: 1 RGB LED: Yes Network LAN controller: Dragon RTL8125BG Wired LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet BIOS BIOS Type: UEFI AMI Memory drivers Supported hard drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 4 Microphone input: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 Speaker output: 1 DisplayPort 1.4: 1 Number of HDMI ports: 1 External Antenna Connector: Yes, x 2 Number of USB 3.2 Gen 1 ports: 2 Line out: Yes BIOS Flashback Button: Yes Number of Thunderbolt 4 ports: 2 Expansion slots PCI Express x16 (Gen 5.x) slots: 1 Safety warning Warnings Do not open or modify the motherboard to prevent damage. When disposing of this product, please follow local regulations for electronics recycling. If you experience any problems with installation, please contact a qualified service center.
