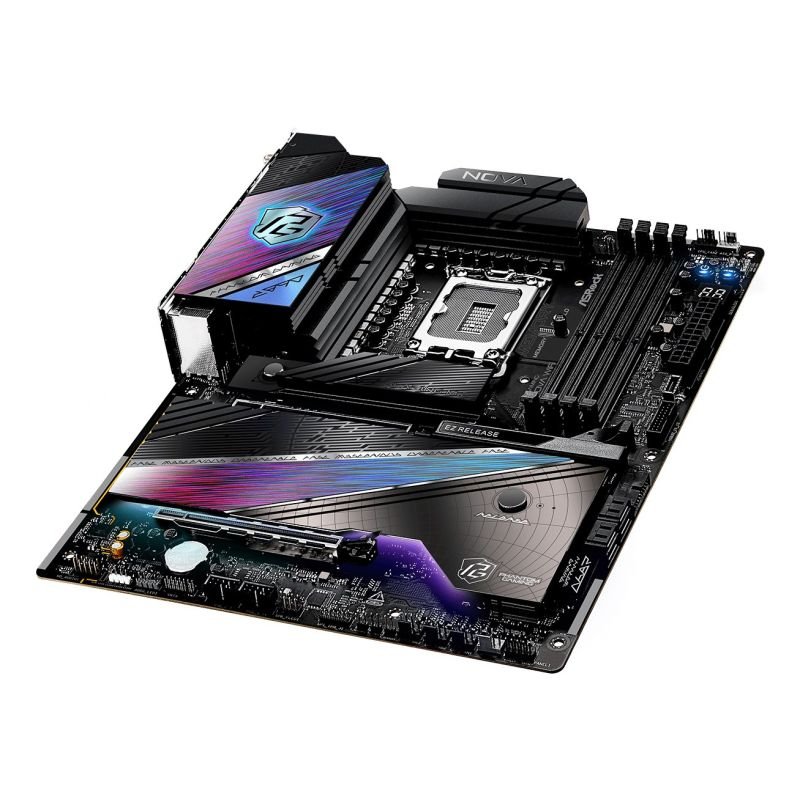

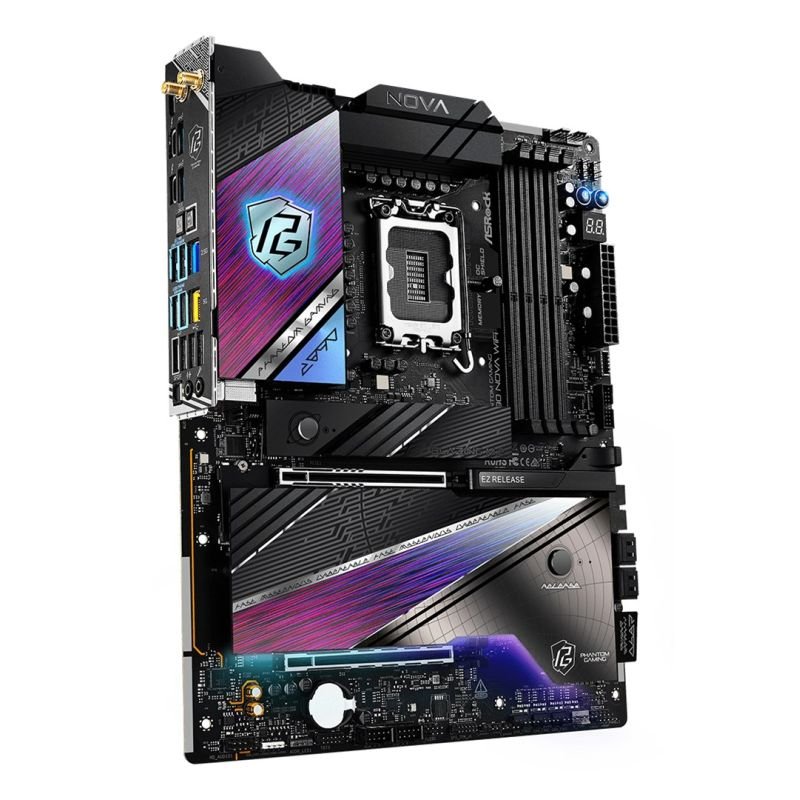

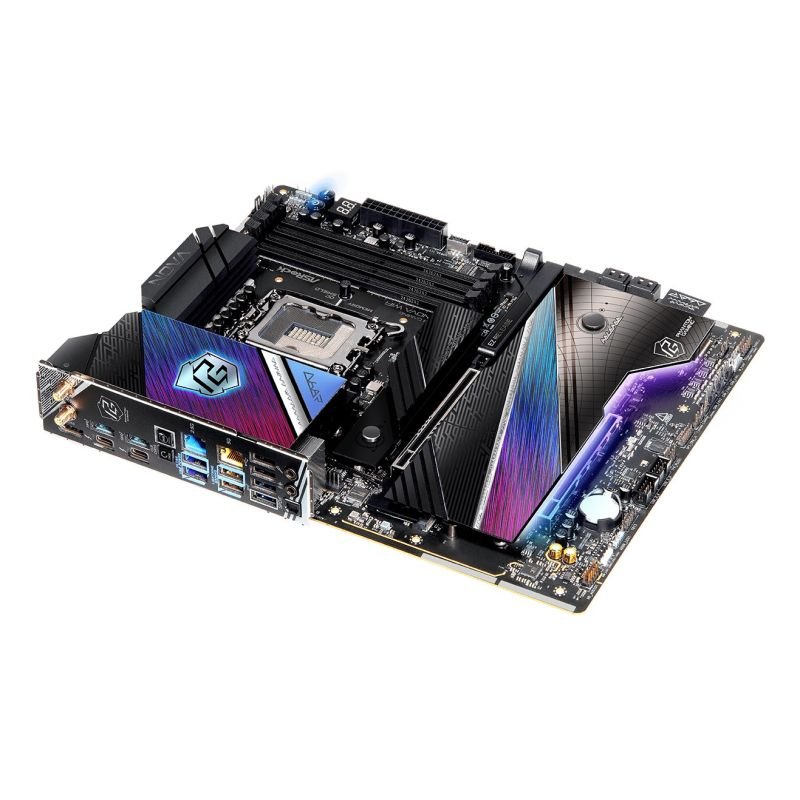

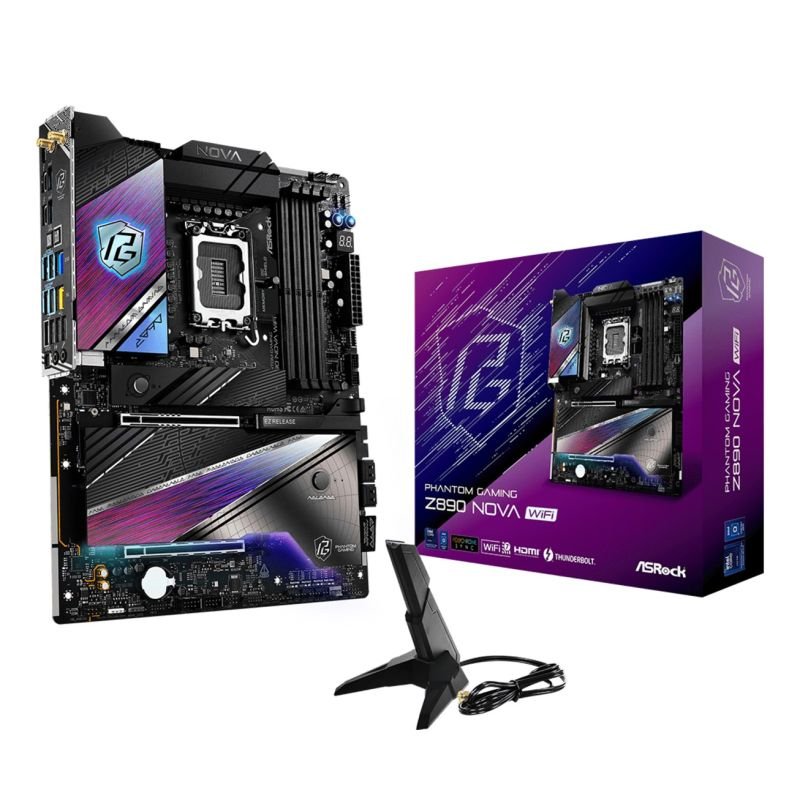

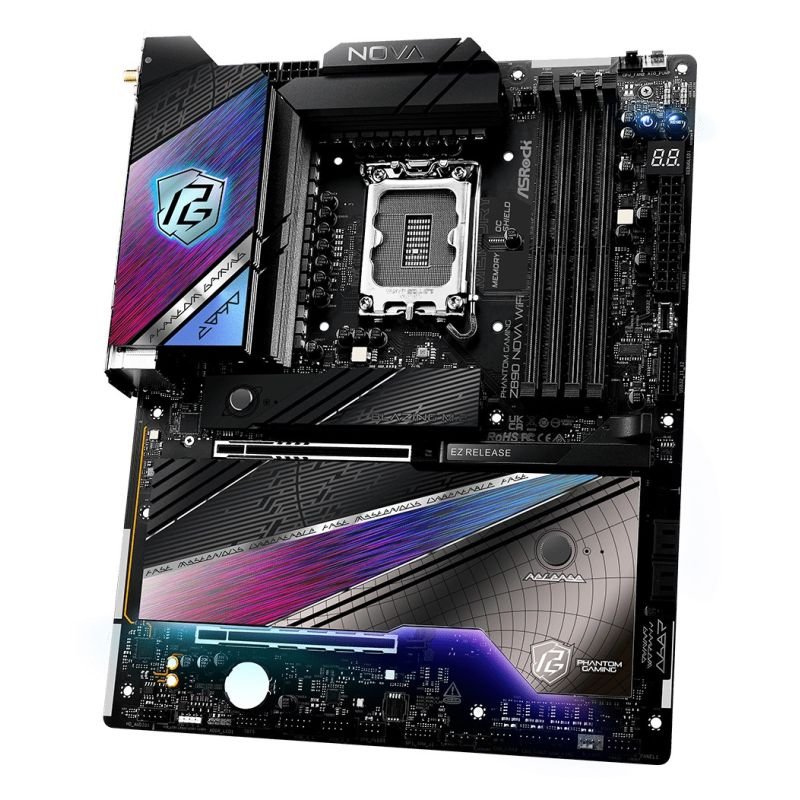

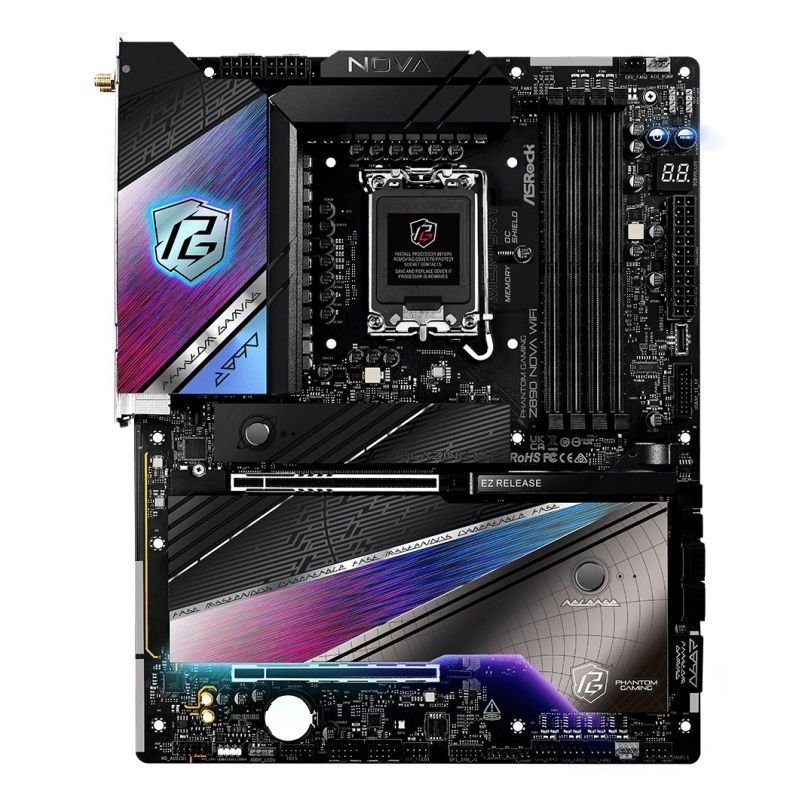

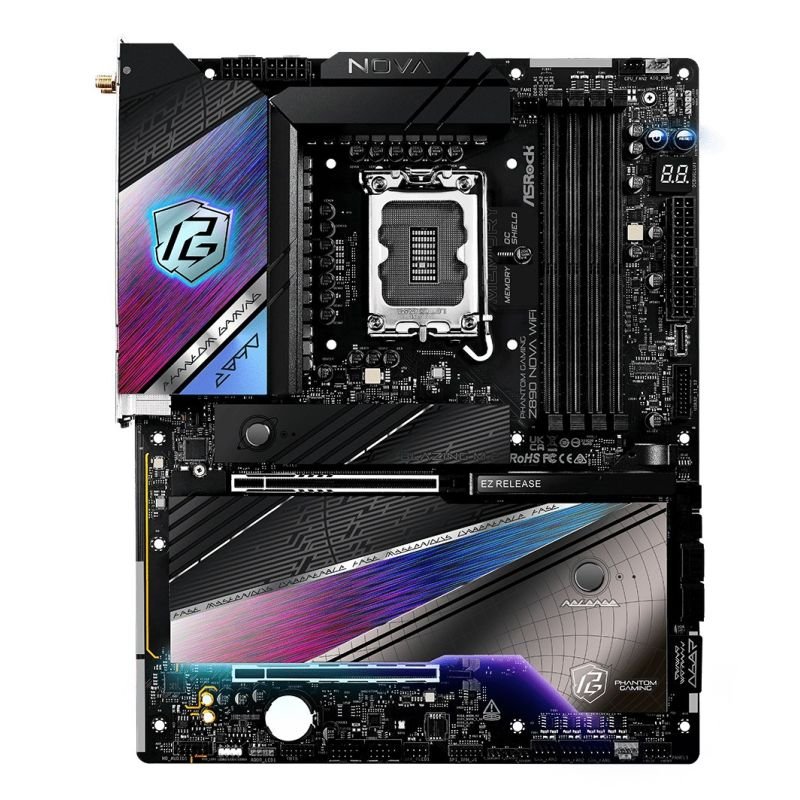

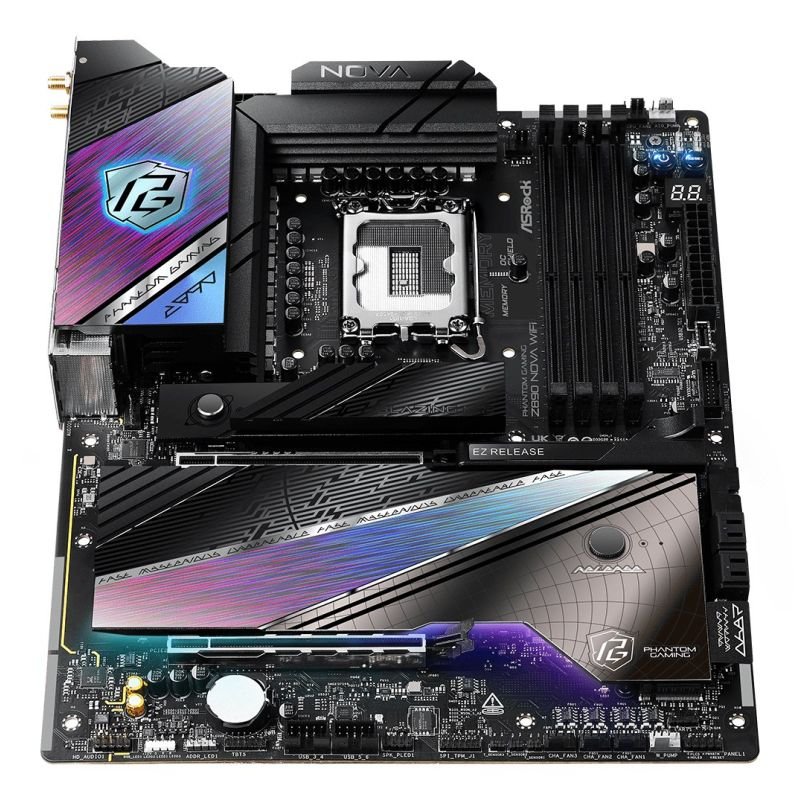

Asrock Z890 NOVA WIFI Motherboard

Processor Processor socket: LGA 1851 (Socket V1) Processor: Intel Core Ultra (Series 2) Processor manufacturer: Intel Supported CPU sockets: LGA 1851 Graphics HDCP: Yes Parallel Processing Support: Not Supported Maximum resolution: 7680 x 4320 px Memory Memory slot type: DIMM ECC Compatibility: Non-ECC Number of memory slots: 4 Supported memory types: DDR5-SDRAM Memory Channel Support: Dual Channel Maximum memory capacity: 256 GB Unbuffered memory: Yes Characteristics Supported Windows operating systems: Windows 11 x64 Chipset Board Family: Intel Audio chip: Realtek ALC4082 Motherboard Layout: Intel Z890 Motherboard format: ATX Audio output channels: 7.1 ch. Product color: Black Weight and dimensions Product depth: 244 mm Product width: 305 mm Internal I/O Number of RGB LED connectors: 4 Number of water pump connections: 1 Number of EPS power connectors (8-pin): 2 Number of case fan connectors: 4 12V power connector: Yes TPM Connector: Yes USB 3.2 Gen 2×2 ports: 1 RGB LED: Yes CPU fan connector: Yes Number of CPU fan connectors: 2 EPS power supply connector (8-pin): Yes ATX power socket (24-pin): Yes Number of USB 2.0 ports: 2 Number of SATA III connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Front panel audio connector: Yes Network Wi-Fi standards 802.11b Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 4 (802.11n) 802.11g 802.11a Wi-Fi 6E (802.11ax) Wi-Fi 5 (802.11ac) Wired LAN: Yes Bluetooth version: 5.4 Basic Wi-Fi standard: Wi-Fi 7 (802.11be) Ethernet network interface type 2.5 Gigabit Ethernet 5 Gigabit Ethernet Wi-Fi: Yes Bluetooth: Yes LAN controller Realtek RTL8126 Killer E3100G BIOS BIOS Type: UEFI AMI Clear CMOS Button: Yes Package contents Screws Included: Yes Cables: SATA M.2 Socket Included: Yes Antenna Included: Yes Memory drivers Number of supported storage drive sizes: 10 Supported drive types: HDD & SSD RAID levels 5 10 0 1 Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III RAID Service: Yes Rear Panel I/O Ports Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Headphone outputs: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4 Line Input: Yes WiFi-AP Antenna Jack Plug: 2 Number of Thunderbolt ports: 2 HDMI version: 2.1 Number of HDMI ports: 1 Supported USB type USB Type-C USB Type-A Number of Ethernet LAN ports (RJ-45): 2 S/PDIF Output Port: Yes Number of USB 2.0 ports: 2 Expansion slots 1. largest M.2 key size: 2280 2. M.2 highest generation PCI Express: 4.0 6. largest M.2 key size: 2280 4. Largest M.2 key size: 2280 3. largest M.2 key size: 2280 PCI Express x16 (Gen 4.x) slots: 1 3. M.2 highest generation PCI Express: 4.0 2nd largest M.2 key size: 2280 4. M.2 highest generation PCI Express: 4.0 1. M.2 highest generation PCI Express: 5.0 5. largest M.2 key size: 2280 6. M.2 highest generation PCI Express: 4.0 5. M.2 highest generation PCI Express: 4.0 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 6
