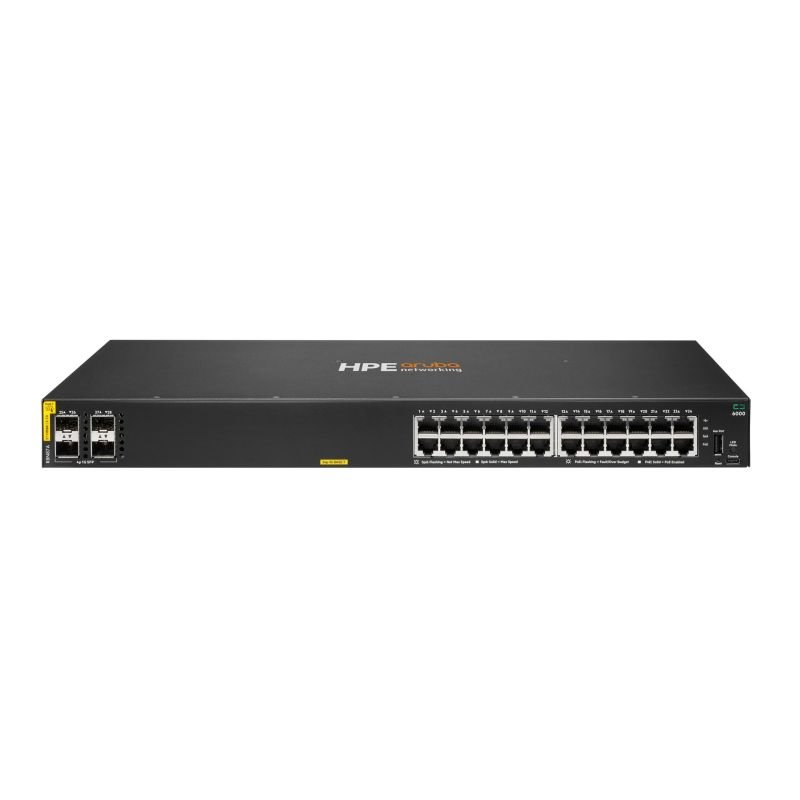

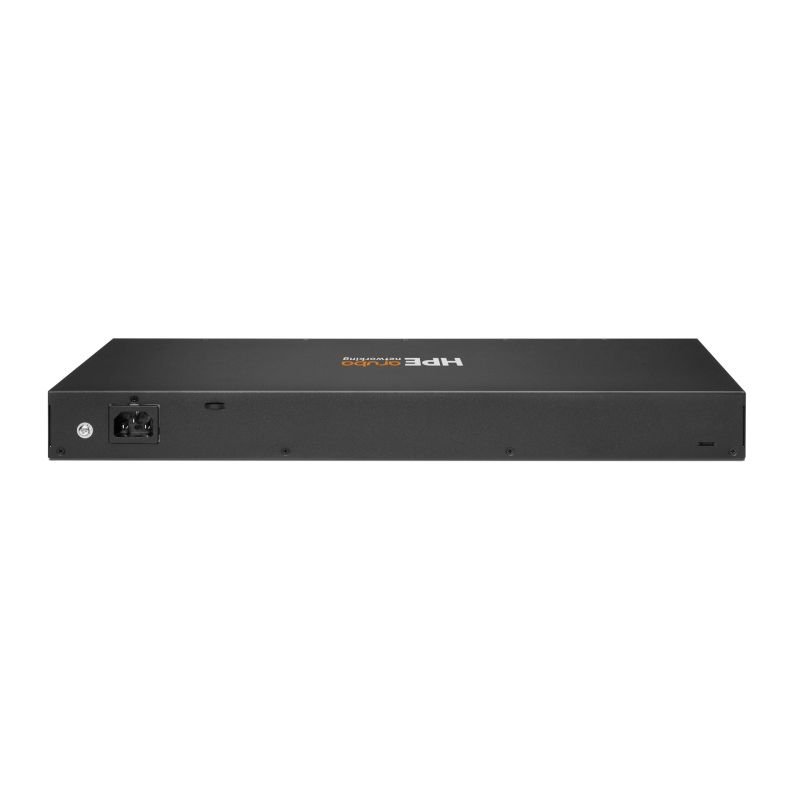

Aruba 6000 24G Class4 PoE 4SFP 370W Managed L3 Gigabit Ethernet (10/100/1000) PoE Support 1U

Design Stackable: No Layout: 1U Rack mounting options: Yes Power AC input voltage: 200 – 240 V AC input frequency: 50 – 60 Hz Power supply included: Yes Power source: AC Power consumption: Max. Power (with PoE): 32.7W Max. Power (with PoE): 455W Power consumption (max): 32.7 W Weight and dimensions Product depth: 442 mm Product height: 268 mm Product weight: 4.2 kg Product width: 44 mm Security Authentication: MAC-based authentication Access Control List (ACL): Yes IGMP snooping: Yes DHCP functions: DHCP client Management features Cloud-managed: Yes Website management: Yes Quality of Service (QoS) Support: Yes Switch Layer: L3 Switch type: Managed Working conditions Temperature range (storage): -40 – 70 °C Relative humidity range: 15 – 95% Temperature range (operation): 0 – 45 °C Permissible relative humidity: 15 – 90% Network Connection Aggregator: Yes Spanning Tree Protocol: Yes Communication standards IEEE 802.1s IEEE 802.1w IEEE 802.3 IEEE 802.1D IEEE 802.3af IEEE 802.3x IEEE 802.1p IEEE 802.3az IEEE 802.3at IEEE 802.1Q IEEE 802.3ad IEEE 802.3ab Auto MDI/MDI-X: Yes 10G Support: No Port Mirroring: Yes VLAN support: Yes Flow Control Support: Yes Efficiency Flash memory size: 16384 MB Memory type: DDR3-SDRAM Processor clock speed: 1016 MHz Internal memory capacity: 4 GB Built-in processor: Yes Processor model: ARM Cortex-A9 Protocols IPv4 FIB: 256 IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL) IPv6 FIB entries: 128 Ports and interfaces Console port: USB Basic RJ-45 Switching Number of Ethernet Ports: 24 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Number of SFP Module slots: 4 Other functions Latency: 1 Gbps: 1.5 μSec Memory and Processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC Weight (imperial): 4.19 kg (9.24 lbs) Dimensions (WxDxH) (imperial): 43.9 x 442 x 268.2 mm (1.73 x 17.4 x 10.6″) Logistics data Harmonized System (HS) code: 85176990 Data transfer Static Route: Yes Latency (1 Gbps): 1.5 µs Address table size: 8192 entries Throughput: 41.6 Mpps Jumbo Frame Compatible: Yes Routing/switching capacity: 56 Gbit/s Power over Ethernet (PoE) PoE Support: Yes Total Power over Ethernet (PoE) budget: 370 W Multicast functions Multicast Support: Yes Safety warning Warnings This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations. Do not open the casing or attempt to repair it yourself. Ensure the device is adequately ventilated during operation.
