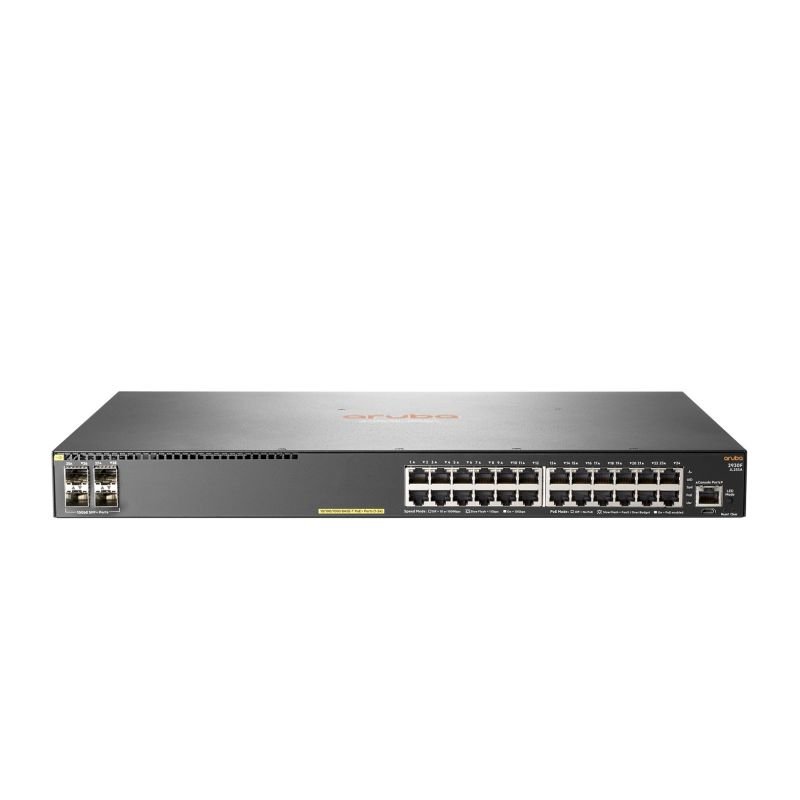

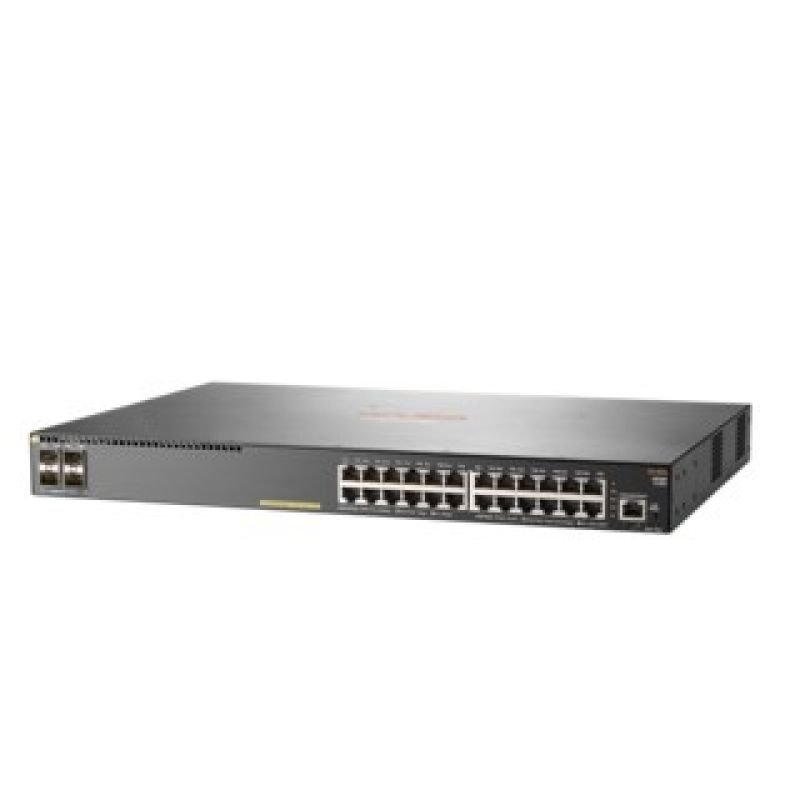

ARUBA 2930F 24G POE+ 4SF P+ database switch

Design Stackable: Yes Rack mounting options: Yes Layout: 1U Product color: Gray Power Power supply included: Yes AC input frequency: 50 – 60 Hz Power consumption (max): 445 W Power source: AC AC input voltage: 100 – 240 V Power consumption: 36.8 W Weight and dimensions Product weight: 3.9 kg Product height: 43.9 mm Product width: 442.5 mm Product depth: 304.2 mm Security IGMP snooping: Yes Access Control List (ACL): Yes Supports SSH/SSL: Yes DHCP functions: DHCP server Management features Switch type: Managed Traffic Classification: Yes Switch Layer: L3 Website management: Yes Quality of Service (QoS) Support: Yes Working conditions Heat emission: 1518 BTU/h Relative humidity range: 15 – 95% Temperature range (operation): 0 – 45 °C Temperature range (storage): -40 – 70 °C Network 10G Support: Yes Full duplex: Yes Frequency Limit: Yes IP forwarding: Yes Spanning Tree Protocol: Yes VLAN support: Yes Connection Aggregator: Yes Auto Detection: Yes Routing position: 10000 Copper Ethernet cabling technology 100BASE-TX 1000BASE-T 10BASE-T Flow Control Support: Yes Communication standards IEEE 802.3ab IEEE 802.3 IEEE 802.3at IEEE 802.3u Auto MDI/MDI-X: Yes Efficiency Built-in processor: Yes Memory type: DDR3-SDRAM Processor clock speed: 1016 MHz Processor model: ARM Cortex-A9 Internal memory capacity: 1 GB Ports and interfaces Number of SFP+ modules installed: 4 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Basic RJ-45 Switching Number of Ethernet Ports: 24 Console port: RJ-45 Logistics data Harmonized System (HS) code: 85176990 Data transfer Routing/switching capacity: 128 Gbit/s Address table size: 32768 entries Latency (10 Gbps): 1.6 µs Latency (1 Gbps): 3.8 µs Throughput: 95.2 Mpps Power over Ethernet (PoE) PoE Support: Yes Total Power over Ethernet (PoE) budget: 370 W Multicast functions Multicast Support: Yes
