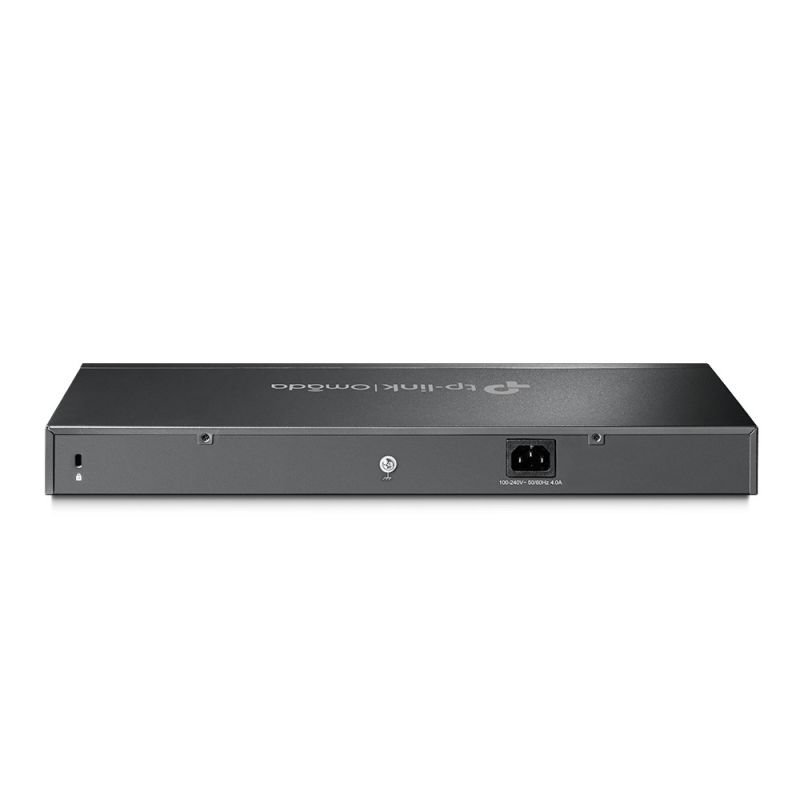

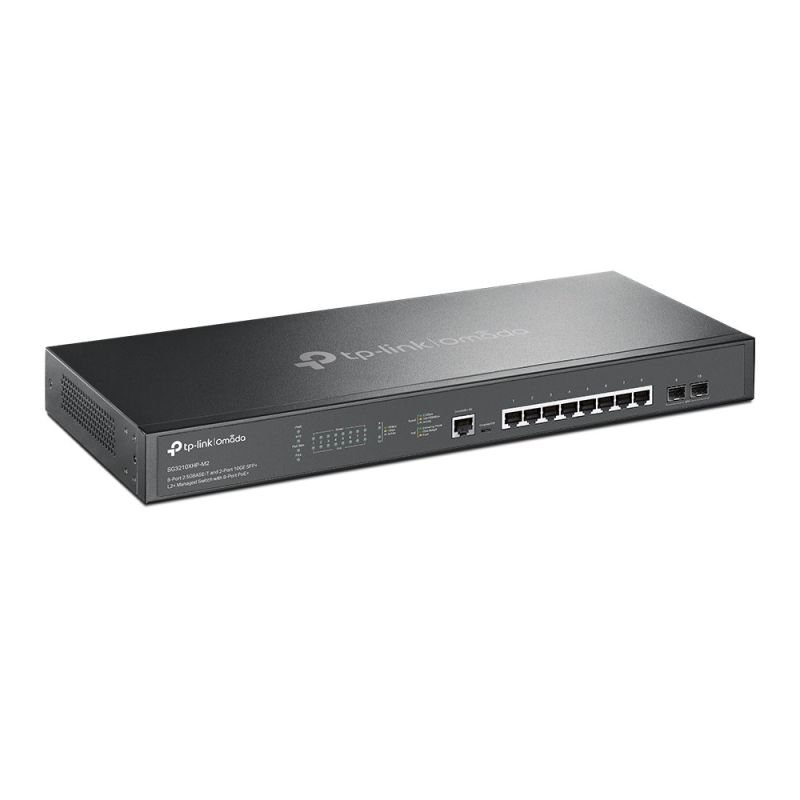

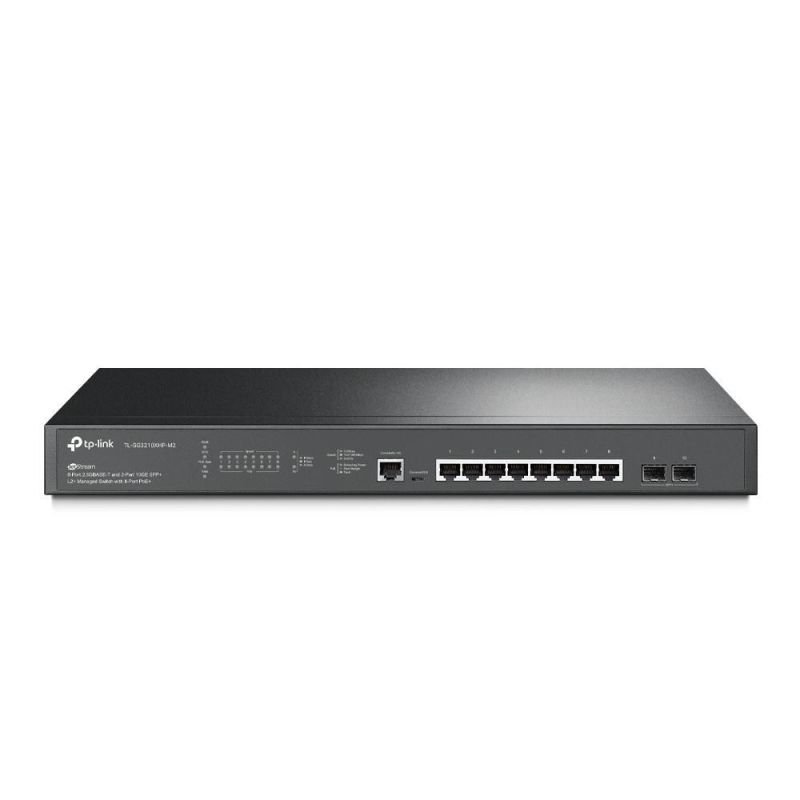

TP-LINK TL-SG3210XHP-M2 switch

Design LEDs: Yes Rack mounting options: Yes Layout: 1U Number of fans: 2 fans Product color: Black Power Power source: AC Power consumption (max): 285.9 W AC input frequency: 50/60 Hz AC input voltage: 100 – 240 V Power supply included: Yes Weight and dimensions Product depth: 180 mm Product height: 44 mm Product width: 440 mm Security Loop protection: Yes BPDU Filtering/Protection: Yes Supports SSH/SSL: Yes DHCP functions DHCPv6 snooping DHCPv6 client DHCP client DHCP server DHCP relay DHCP snooping Encryption/Security HTTPS SSL/TLS SSH-2 SSH Authentication type: AAA, TACACS+ IGMP snooping: Yes Queue planning algorithms Weighted Round Robin (WRR) SP WRR+SP Password protection: Yes Access Control List (ACL): Yes Authentication: MAC-based authentication, Port-based authentication MAC address filtering: Yes IP-MAC-Port Binding: Yes Static Port Protection: Yes Management features Website management: Yes MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 System Event Report: Yes Switch Layer: L2+ Traffic Classification: Yes Cloud-managed: Yes ARP Inspection: Yes Configuring Location Settings (CLI): Yes Quality of Service (QoS) Support: Yes Switch type: Managed Working conditions Temperature range (storage): -40 – 70 °C Temperature range (operation): 0 – 45 °C Permissible relative humidity: 5 – 90% Heat emission: 975.54 BTU/h Relative humidity range: 10 – 90% Network Data transfer speed via Ethernet LAN: 100,1000,2500 Mbit/s Traffic Growth Control: Yes Number of VLANs: 4000 Communication standards IEEE 802.1D IEEE 802.1w IEEE 802.1s Spanning Tree Protocol: Yes Connection Aggregator: Yes Frequency Limit: Yes Virtual LAN Features Tagged VLAN Voice VLAN Private VLAN Port-based VLAN Protocol-based VLAN MAC address-based VLAN Port Mirroring: Yes 10G Support: Yes Flow Control Support: Yes IP forwarding: Yes VLAN support: Yes Head-of-line (HOL) blocking: Yes Packaging data Packaging type: Box Package contents Wires: Alternating Current Quick Start Guide: Yes Protocols Management protocols: SNMPv1/v2c/v3, SNTP GARP VLAN Registration Protocol (GVRP): Yes Ports and interfaces Power Connector: AC Input Socket Basic Ethernet Switching RJ-45 ports type: 2.5G Ethernet (100/1000/2500) Number of SFP+ Module slots: 2 Basic RJ-45 Switching Number of Ethernet Ports: 8 Console Port: RJ-45/Micro-USB Number of 2.5G Ethernet ports (copper): 8 Data transfer Static Route: Yes Packet buffer memory: 12 MB Number of IP interfaces: 16 Forwarding speed: 59.52 Mpps Jumbo Frame Compatible: Yes Address table size: 16000 entries Number of static routes: 48 Jumbo Frames Expansion: 9000 Routing/switching capacity: 80 Gbit/s Power over Ethernet (PoE) Total Power over Ethernet (PoE) budget: 240 W Power over Ethernet Plus (PoE +) ports: 8 PoE Support: Yes Power over Ethernet (PoE) power per port: 30 W Multicast functions Multicast Listener Discovery (MLD) snooping: Y Multicast Support: Yes
