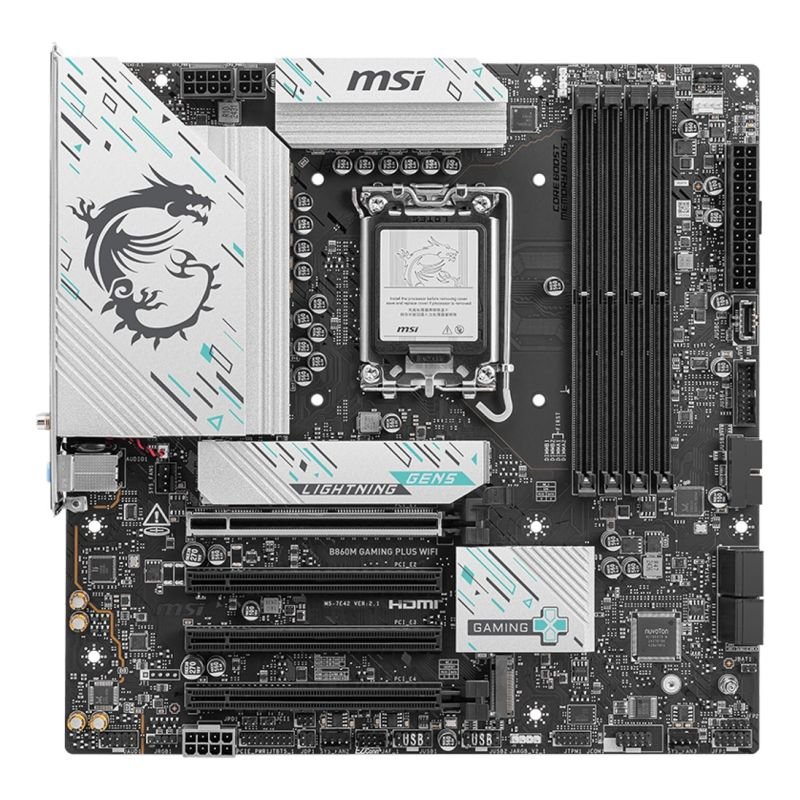

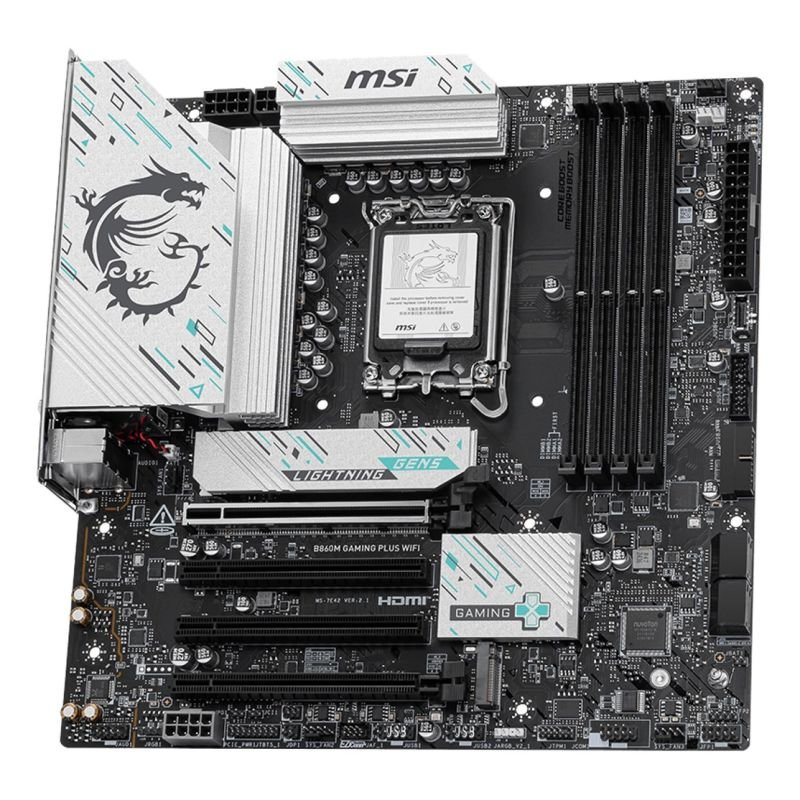

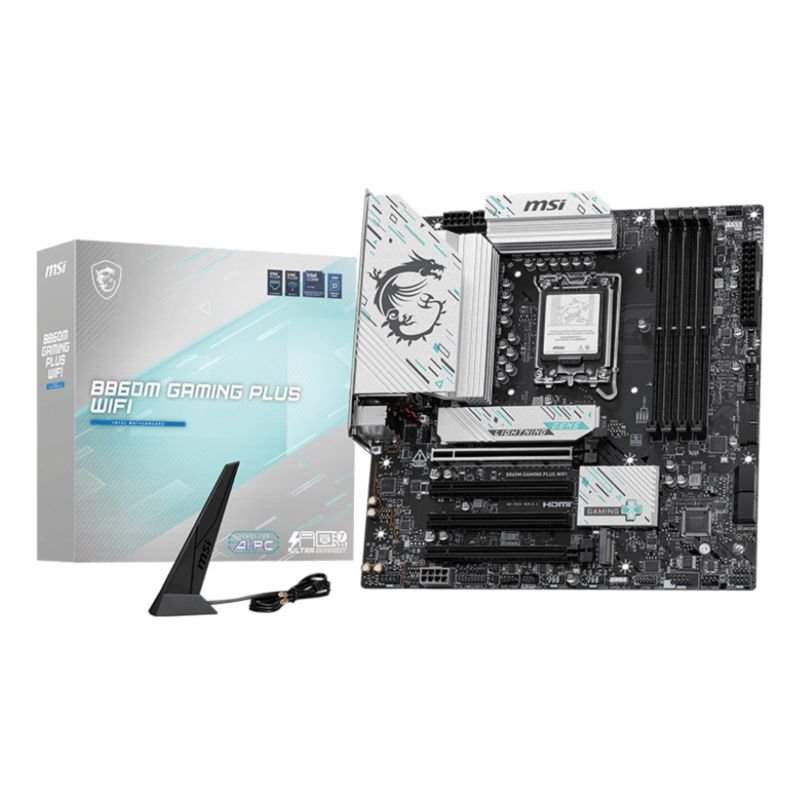

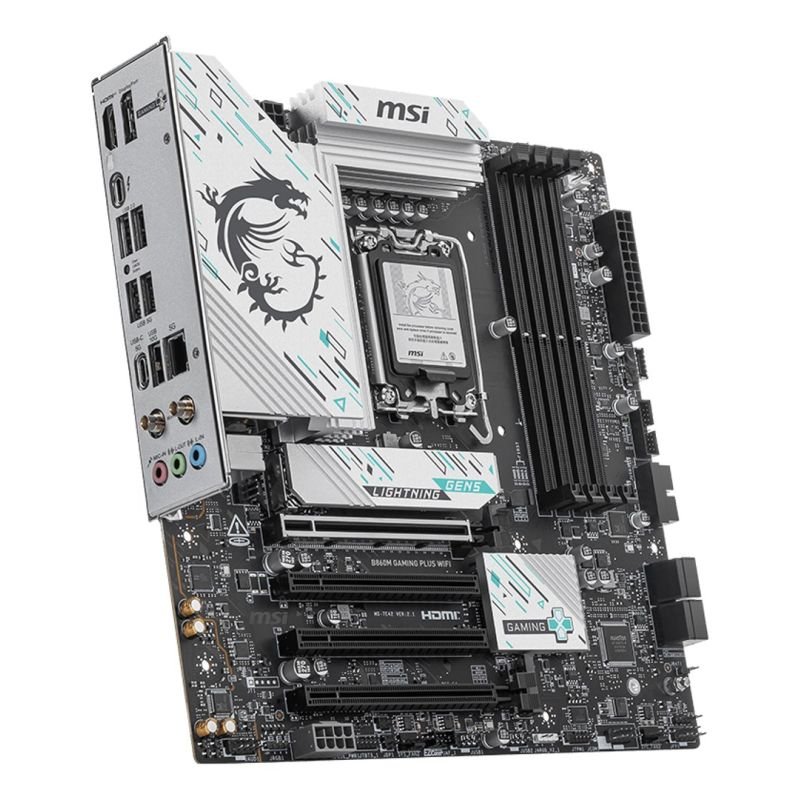

MSI B860M GAMING PLUS WIFI Motherboard

Processor Maximum internal memory supported by the processor: 256 GB Processor: Intel Core Ultra (Series 2) Supported CPU sockets: LGA 1851 Processor socket: LGA 1851 (Socket V1) Processor manufacturer: Intel Memory Supported memory clock speeds 6400 MHz 4800 MHz 8800 Maximum memory capacity: 256 GB ECC Compatibility: Non-ECC Supported memory types: DDR5-SDRAM Memory Channel Support: Dual Channel Supported memory clock speed (max): 8800 MHz Memory slot type: DIMM Number of memory slots: 4 Characteristics Audio chip: Realtek ALC897 Product color: Black Motherboard Layout: Intel B860 Audio output channels: 7.1 ch. Chipset Board Family: AMD Motherboard format: Micro ATX Supported Windows operating systems: Windows 11 x64 Weight and dimensions Product depth: 243.8 mm Product width: 243.8 mm Internal I/O Number of USB 2.0 ports: 4 Number of CPU fan connectors: 1 Number of RGB LED connectors: 3 Total number of SATA connectors: 4 USB 3.2 Gen 1 (3.1 Gen 1) ports: 4 USB 3.2 Gen 2 (3.1 Gen 2) ports: 1 RGB LED: Yes Number of SATA III connectors: 4 Number of water pump connections: 1 CPU fan connector: Yes Network Bluetooth: Yes Wi-Fi standards Wi-Fi 6E (802.11ax) 802.11g 802.11a 802.11b Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) WLAN Controller Model: Killer Wi-Fi 7 1750x Bluetooth version: 5.4 Ethernet interface type: 5 Gigabit Ethernet Wired LAN: Yes Wi-Fi: Yes Basic Wi-Fi standard: Wi-Fi 7 (802.11be) BIOS BIOS Type: UEFI AMI Memory drivers Supported drive types: HDD & SSD Number of supported storage drive sizes: 7 Supported hard drive interfaces: M.2, Micro SATA III RAID levels 5 10 1 0 RAID Service: Yes Number of supported HDDs: 4 Rear Panel I/O Ports Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 2 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 HDMI version: 2.1 Number of HDMI ports: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 Expansion slots 1. M.2 highest generation PCI Express: 5.0 Number of M.2 (M) slots: 3 2nd largest M.2 key size: 2280 2. M.2 highest generation PCI Express: 4.0 1. largest M.2 key size: 2280 PCI Express x16 (Gen 4.x) slots: 3 PCI Express x16 (Gen 5.x) slots: 1 3. M.2 highest generation PCI Express: 4.0 3. largest M.2 key size: 2280 Safety warning Warnings Do not open or modify the motherboard to prevent damage. If you experience any problems with installation, please contact a qualified service center. When disposing of this product, please follow local regulations for electronics recycling.
