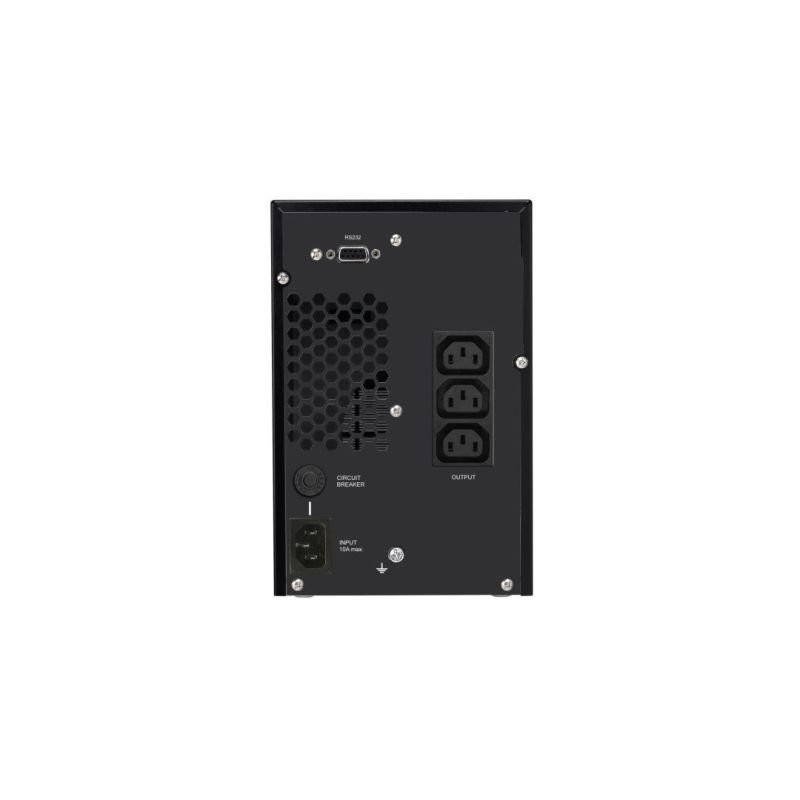

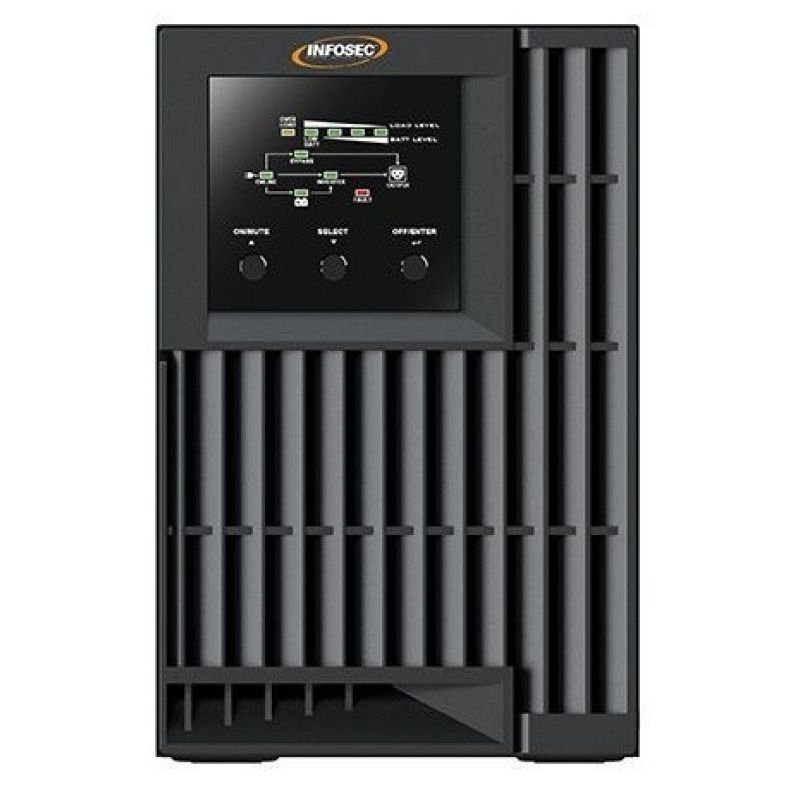

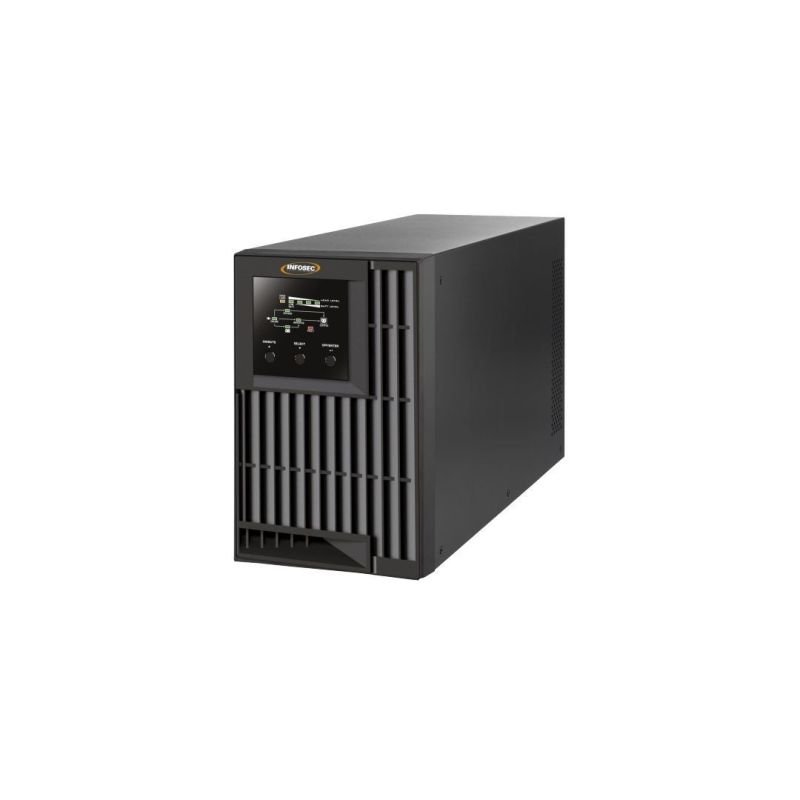

INFOSEC UPS E4 VALUE 1000, 1000VA, 800W, 3X C13

Characteristics Maximum configurable power: 1 kVA ECO mode: Yes Output operating voltage (maximum): 100 V Audible alarm modes: Battery alarm, Fault, Overload alarm, Low battery alarm Waveform: Pure sine Output frequency: 47/63 Hz Output voltage regulation: -1 – 1% Input operating voltage (minimum): 100 V Input frequency: 47 – 63 Hz Crest Factor: 3:1 Response time (typical): 4 ms Noise level: 50 dB Number of output phases: 1 Number of input phases: 1 Audible alarm: Yes Power factor: 0.8 Input power factor: 0.99 Efficiency: 88% UPS Topology: Double Conversion (Online) Input operating voltage (maximum): 240 V Maximum current: 10 A Output operating voltage (minimum): 240 V Output current THD level: 6% Design Layout: Tower Display type: LED Product color: Black Weight and dimensions Product width: 145 mm Product weight: 8.6 kg Product depth: 220 mm Product height: 282 mm Working conditions Temperature range (operation): 0 – 40 °C Relative humidity range: 20 – 90% Package contents Cables: Power output cable, RS-232, Power input cable User Manual: Yes Certificates Certificates of conformity: RoHS Ports and interfaces Serial communication ports: 1 SCSI interface: RS-232 Serial interface: Yes AC output types: C13 panel Number of network sockets: 3 x network socket Battery Typical backup time at half load: 9 min Battery capacity: 9 Ah Cold start: Yes Charging current: 1 A Typical backup time at full load: 30 min Battery type: Lead acid (VRLA) Charging time: 4 hours Battery voltage: 12 V Safety warning Warnings Do not disassemble the device housing, as this may result in electric shock. Store away from sources of heat and fire. The device should be used in well-ventilated areas to avoid overheating.
