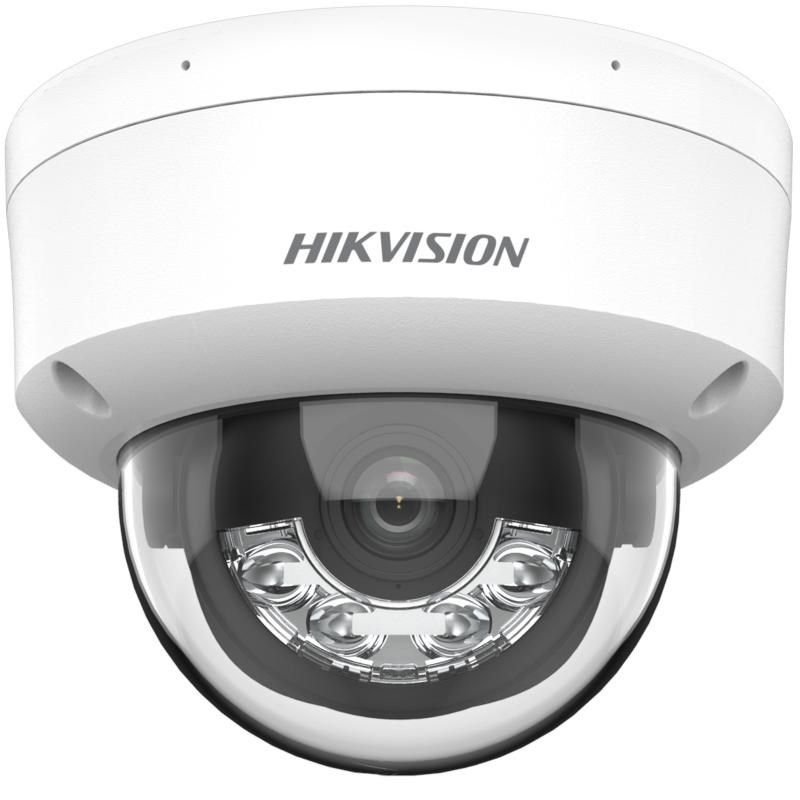

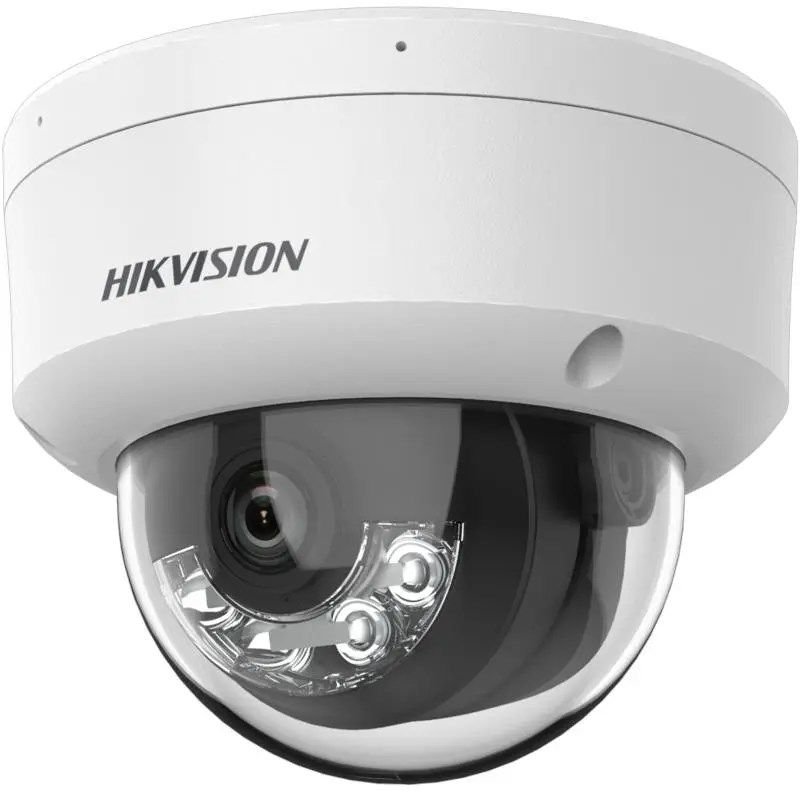

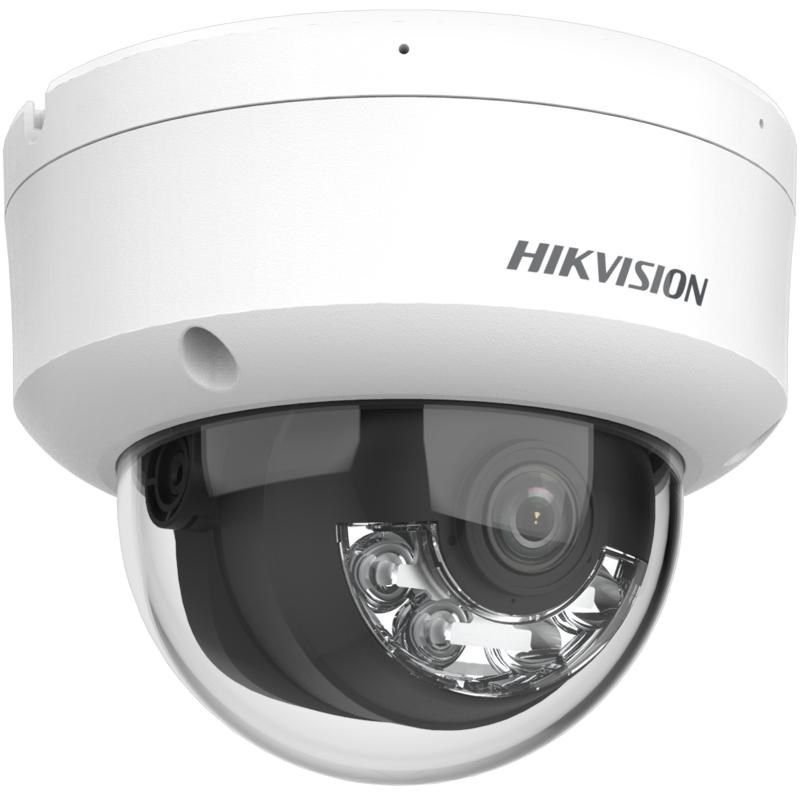

HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm PL

Technical details lens mount interface: M12 Iris: Yes Design Layout: Dome Product color: White Housing material Metal Plastic IP protection class: IP67 IK code: IK08 Mounting type: Ceiling Weather-resistant product: Yes Power Power consumption (max): 6 W Power supply type: DC, PoE Power consumption (PoE): 7.5 W DC Output (Volts): 12 DC Output (Amps): 0.5 A Weight and dimensions Product weight: 550 g Product height: 97.6 mm Diameter: 12.2 cm Security Password reset via email: Yes Heartbeat: Yes Password protection: Yes Digital Watermark: Yes Active intrusion alarm: Yes Mirror: Yes Video motion detection: Yes Management features Website management: Yes Working conditions Permissible relative humidity: 0 – 95% Temperature range (operation): -30 – 60 °C Temperature range (storage): -30 – 60 °C Relative humidity range: 0 – 95% Network Quality of Service (QoS) Support: Yes Bluetooth: No Client interoperability: iVMS-4200, Hik-Connect Supported network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP Wi-Fi: No Wired LAN: Yes Live View: Yes Number of users: 32 users Number of simultaneous live view channels: 6 channels User access level: Administrator, Operator, User Efficiency Connection method: Wired Model: IP Security Camera Number of languages: 2 Day/Night Mode: Yes Intended use: Indoor and outdoor Infrared (IR) Cut-off Filter: Yes Wide Dynamic Range (WDR): Yes Dynamic range: 120 dB Packaging data Weight with packaging: 800 g Package width: 150 mm Packaging depth: 150 mm Package height: 141 mm Package contents Number of cameras: 1 Audio Built-in microphone: Yes Supported audio formats PCM MP2L2 AAC-LC G.722.1 G.711 A-law G.726 Bit rate range: 16 – 160 Kbit/s Sampling rate: 8 – 16 kHz Signal-to-noise ratio: 52 dB Data carrier Integrated card reader: Yes Supported memory cards MicroSD microSDHC MicroSDXC Built-in HDD: No Maximum memory card size: 512 GB Ports and interfaces Number of Ethernet LAN ports (RJ-45): 1 Camera Tilt angle range: 0 – 75° Lens viewing angle, diagonal: 134° Shutter speed: 1/3 – 1/100000 s Lens viewing angle, horizontal: 113° Min. Illumination: 0 lx Vertical lens viewing angle: 62° Rotation angle: 355° Swivel range: 0 – 355° Photosensitive matrix CCD sensor size: 25.4 / 2.7 mm (1 / 2.7″) Number of sensors: 1 Progressive Scan: Yes Image sensor type: CMOS Night mode LED type: Infrared Infrared wavelength: 850 nm Night mode: Yes Night Vision Distance: 30 m Video Supported graphics resolutions 3200 x 1800 1280 x 720 (HD 720) 1920 x 1080 (HD 1080) 640 x 360 640 x 480 (VGA) 3860 x 2160 2688 x 1512 Maximum resolution: 3840 x 2160 px Highlight Compensation (HLC): Yes Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Total megapixels: 8 MP Frame rate: 15 fps Regional Area of Interest (ROI) Coding: Yes Noise reduction technology: 3D noise reduction Privacy Mask: Yes Backlight compensation: Yes Compression formats M-JPEG H.265 H.264 H.265+ H.264+ Data flow speed: 32 Kbps – 16 Mbps Noise reduction: Yes Video recording: Yes Quality regulation Contrast White balance Sharpness Saturation Brightness Lens system Fixed focal length: 2.8 mm Maximum aperture: 2 Number of lenses: 1 Detection distance: 79 m Recognition distance: 15 m Observe distance: 31 m Determining distance: 7 m Sustainable development Certificates of conformity Federal Communications Commission (FCC) REACH WEEE CB Central Committee RoHS Low Voltage Directive (LVD)
