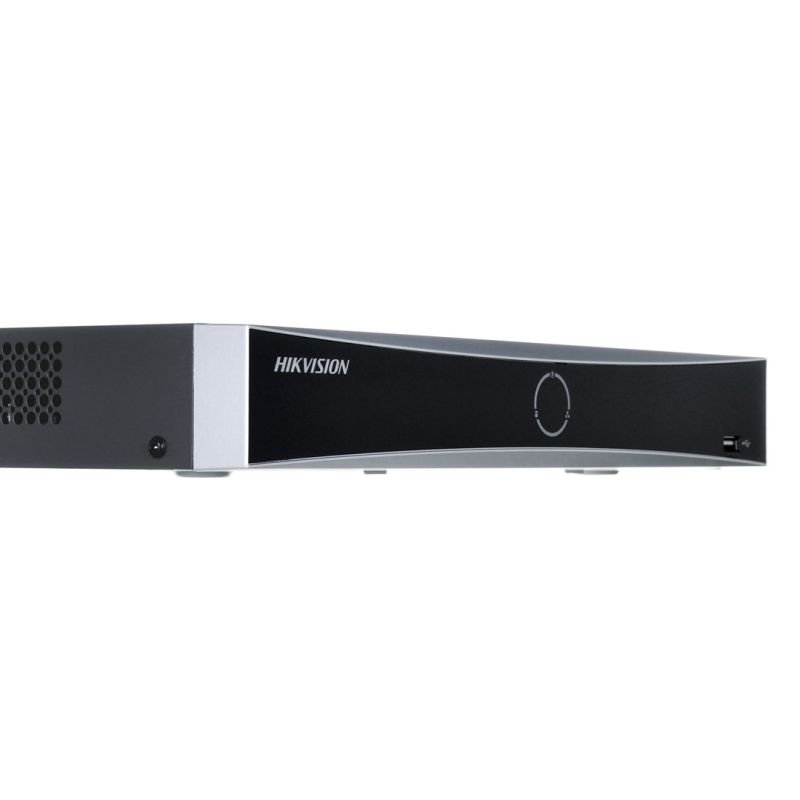

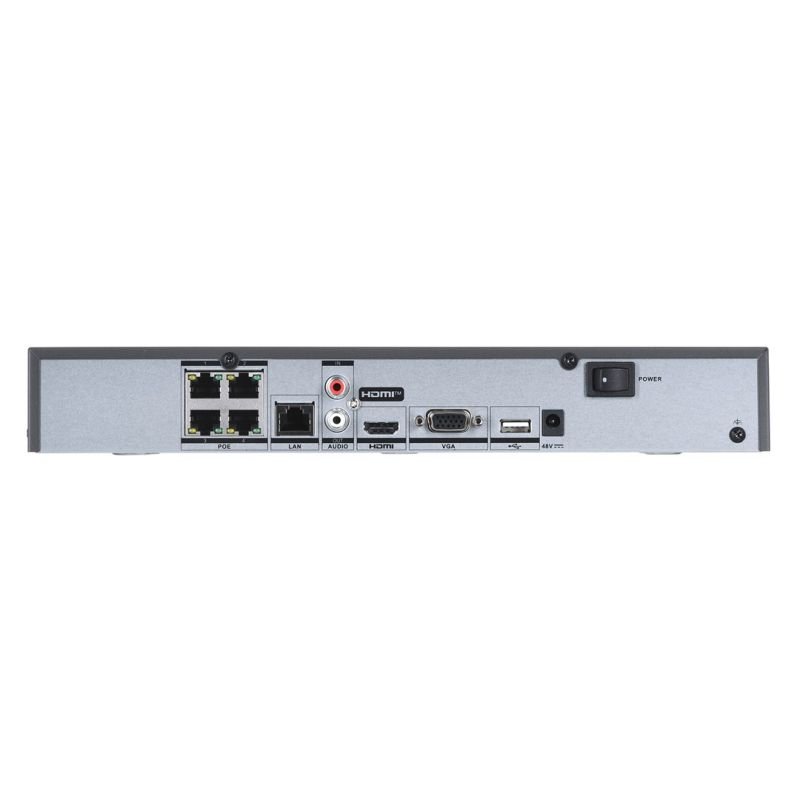

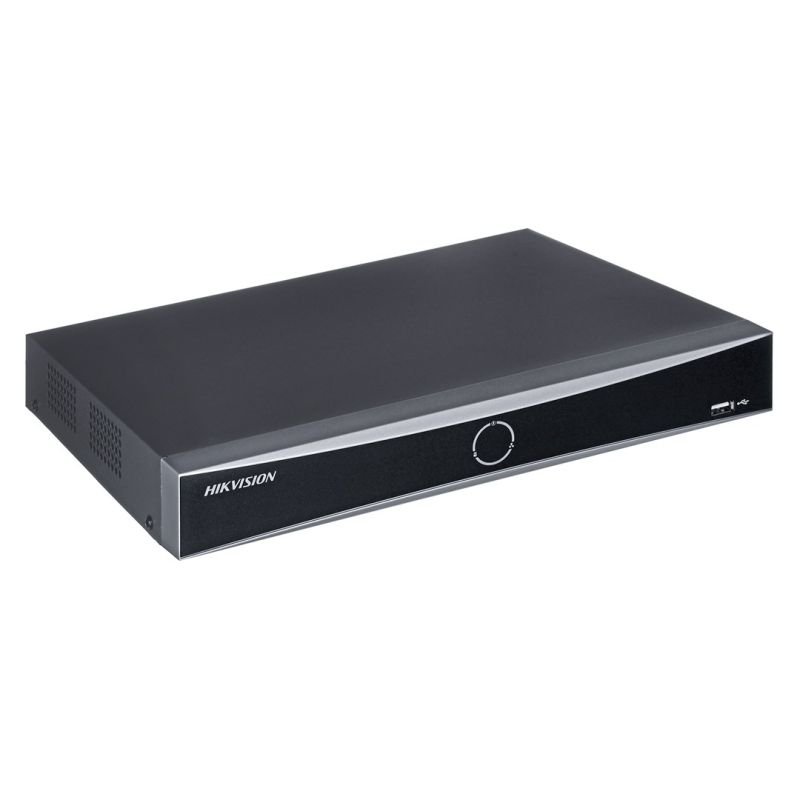

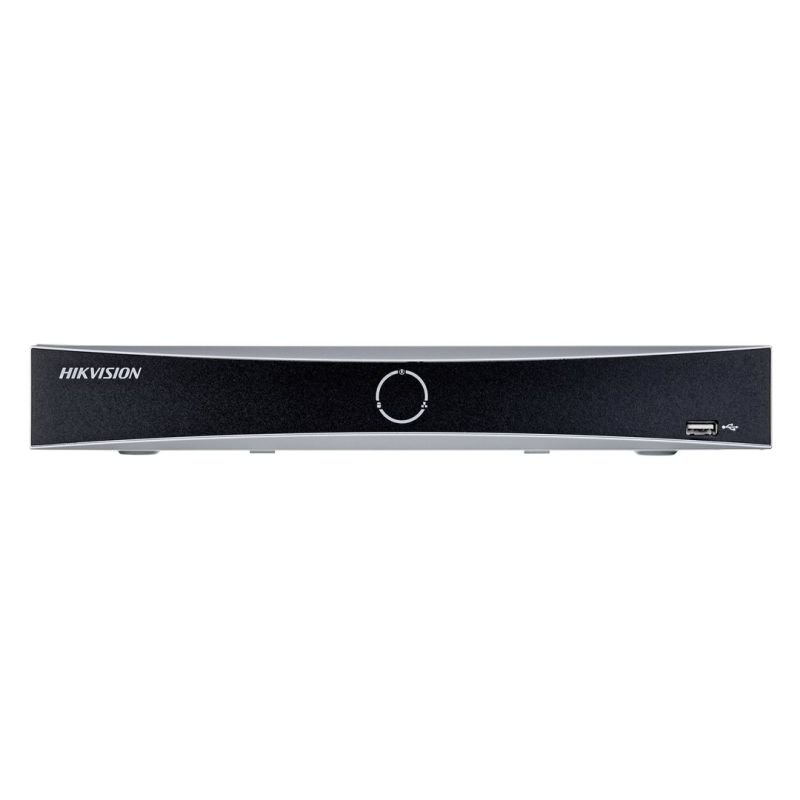

HIKVISION DS-7604NXI-K1/4P(D) IP Recorder

Technical details Environmental certificate (sustainable development) CE Federal Communications Commission (FCC) Characteristics Rack capacity: 1U Rack mounting options: Yes Product color: Black Power Operating voltage: 48 V Power consumption: 10 W Output current: 1.35 A Total Power over Ethernet (PoE) budget: 50 W Weight and dimensions Product height: 48 mm Product width: 320 mm Product depth: 240 mm Product weight: 1 kg Working conditions Relative humidity range: 10 – 90% Temperature range (operation): -10 – 55 °C Efficiency Maximum resolution: 3840 x 2160 px Supported audio formats G.711 μ-law G.722 AAC G.726 G.711 A-law Face detection function: Yes Output bandwidth: 80 Mbit/s Supported video file formats H.264+ H.265 H.265+ H.264 Maximum frame rate: 30 fps Input bandwidth: 40 Mbit/s Video channel inputs: 4 channels Number of simultaneous playback channels: 4 channels Wireless LAN Features Wi-Fi: No Data carrier Number of supported HDDs: 1 Maximum storage capacity: 16 TB HDD interface: SATA Ports and interfaces Data transfer speed via Ethernet LAN 100 Mbps 1000 Mbps 10 Mbps Number of Fast Ethernet (PoE) ports: 4 Number of USB 2.0 ports: 2 Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 5 Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS RCA audio connectors: 1 Number of internal SATA ports: 1 VGA (D-Sub) Outputs: 1 RCA audio outputs: 1 PoE Support: Yes HDMI output: Yes Communication standards IEEE 802.3af IEEE 802.3at Safety warning Warnings The device should be installed by a qualified specialist. Do not expose the device to moisture or extreme temperatures. The product must be disposed of properly in accordance with local regulations for electronics disposal.
