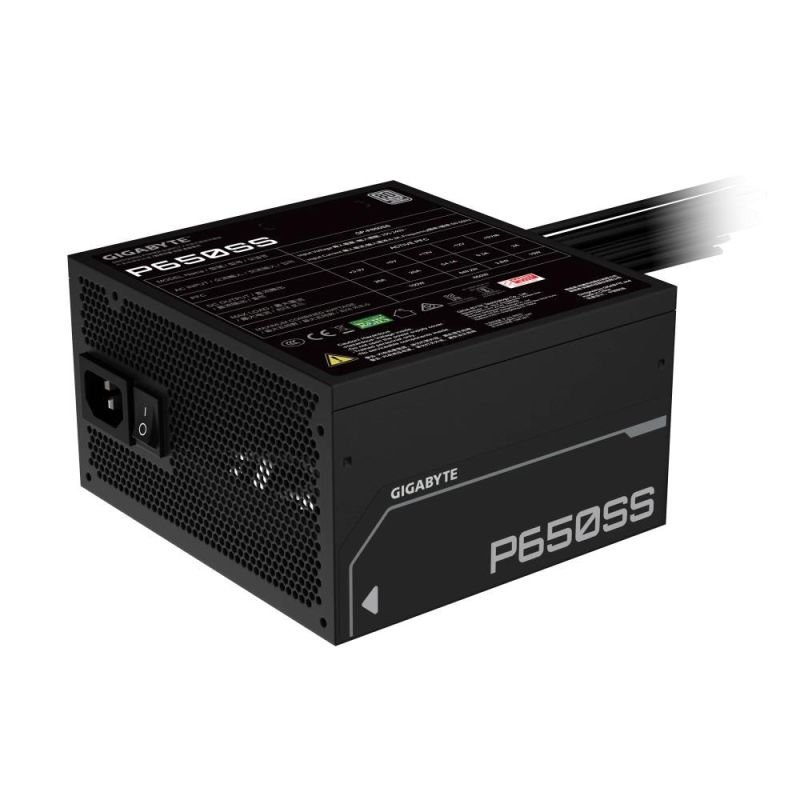

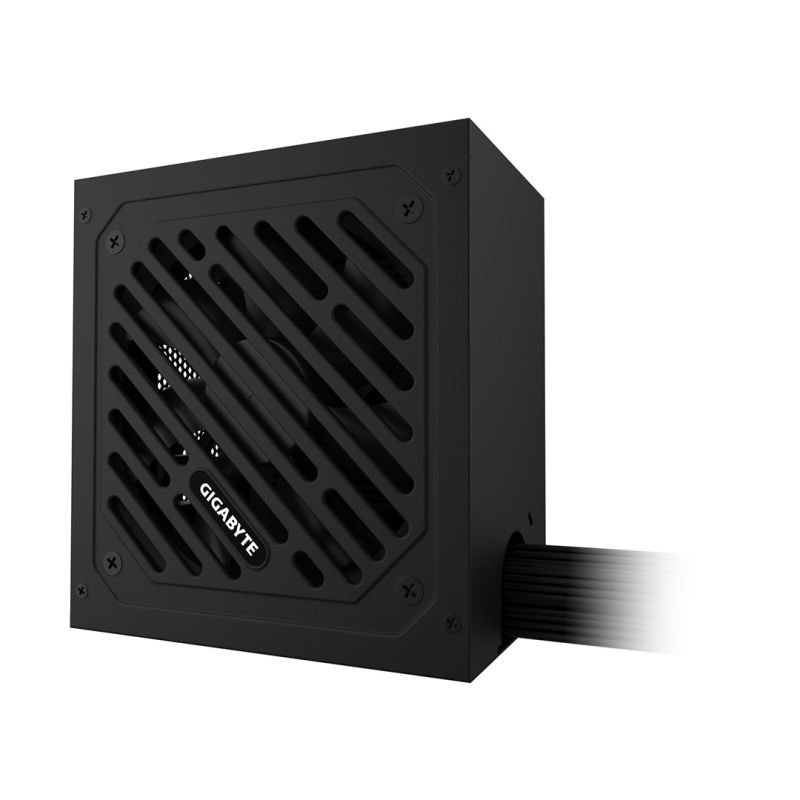

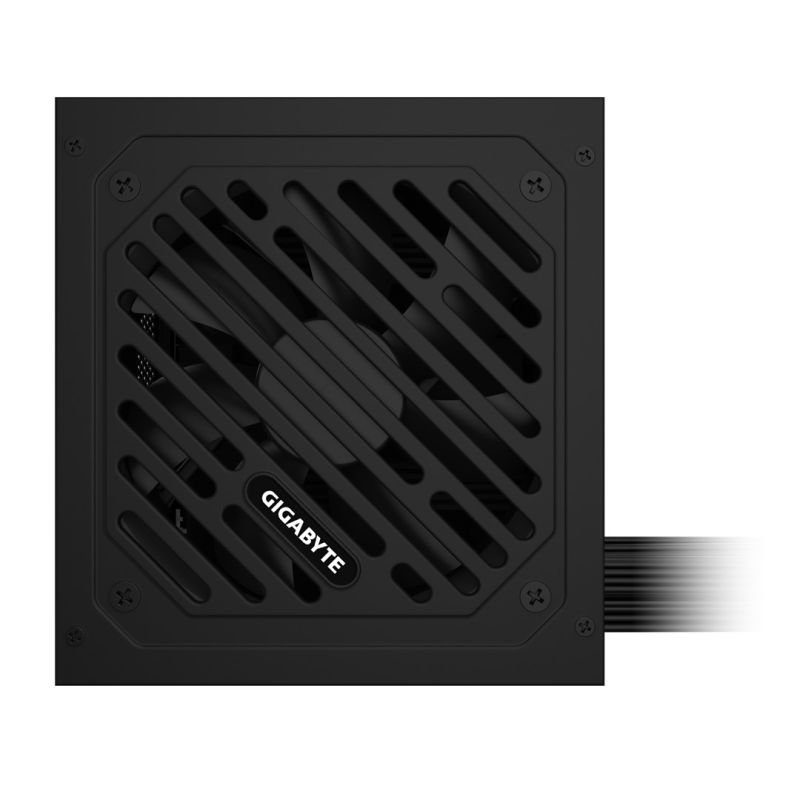

GIGABYTE P650SS Power Supply Module 650W 20+4 pin ATX Black

Design Fan Location: Top Cooling type: Active Number of fans: 1 fan Built-in switch: Yes Product color: White Fan bowl diameter: 12 cm Power Good Signal Power Delay Range: 100 – 150 ms Total power (+5V): 100 W AC input frequency: 50/60 Hz Maximum output current (+5 Vsb): 3 A Total power (+12V): 549.6 W AC input voltage: 155-240V Maximum output current (-12V): 0.3A Total power: 550 W Maximum output current (+3.3V): 20 A Total power (+5 Vsb): 15 W Efficiency: 90% PFC (Power Factor Correction) Type: Active Maximum output current (+12V): 45.8 A Input current: 6.3 A Total power (-12V): 3.6 W Maximum output current (+5V): 20A Power protection features Short circuit Overheating protection Protection against overvoltage Overcurrent Overload protection Low voltage protection Total power (+3.3V): 100 W Hold time: 16 ms Weight and dimensions Product depth: 150 mm Product width: 140 mm Product weight: 2.46 kg Product height: 86 mm Efficiency 80 PLUS Certificate: 80 PLUS Silver Intended use: PC Power supply type (PSU): ATX ATX version: 3.1 Bearing technology: Ball bearing MTBF (Mean Time Between Failures): 100000 h Packaging data Package depth: 206 mm Packaging type: Box Package height: 117 mm Package width: 254 mm Weight with packaging: 2.63 kg Ports and interfaces ATX power supply connector (20+4 pin): Yes Floppy drive connector: 2 CPU power supply connector (4+4 pin): Yes PCI Express slot: Yes Number of SATA power connectors: 5 PCI Express power connectors (6+2 pin): 2 Wiring Type: Fully Modular Floppy disk drive slot: Yes Motherboard power connector: 20+4 pin ATX Motherboard cable length: 60 cm Peripheral (Molex) Power Connectors (4-pin): 4 Logistics data Warranty period: 3 years
