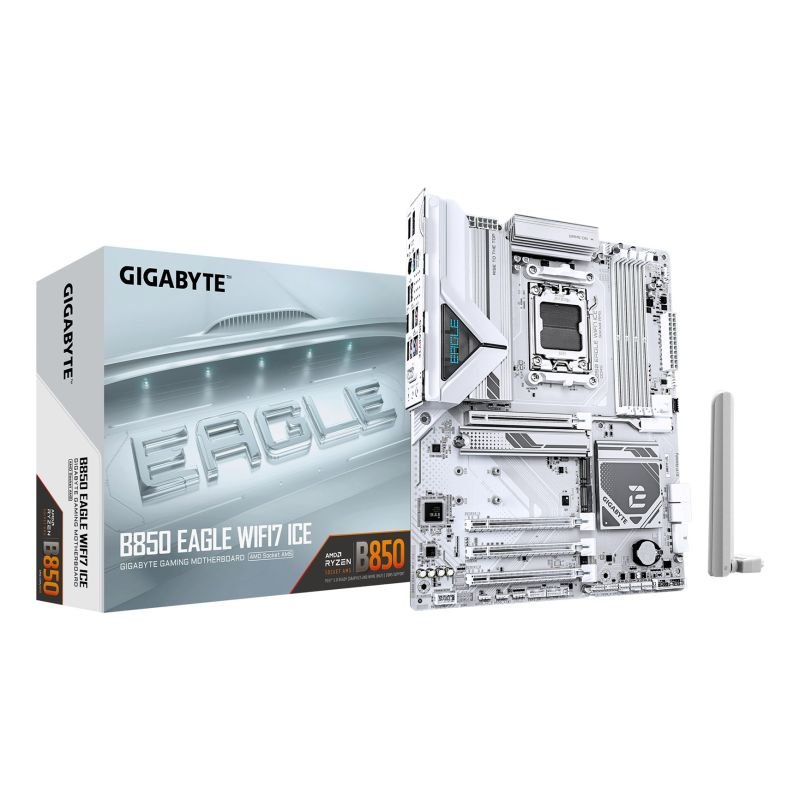

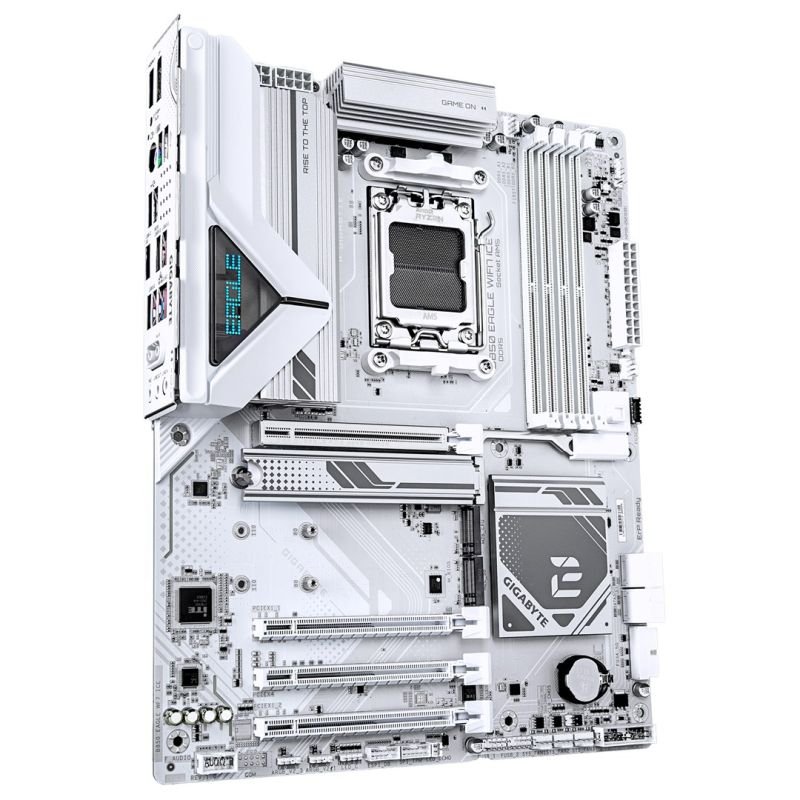

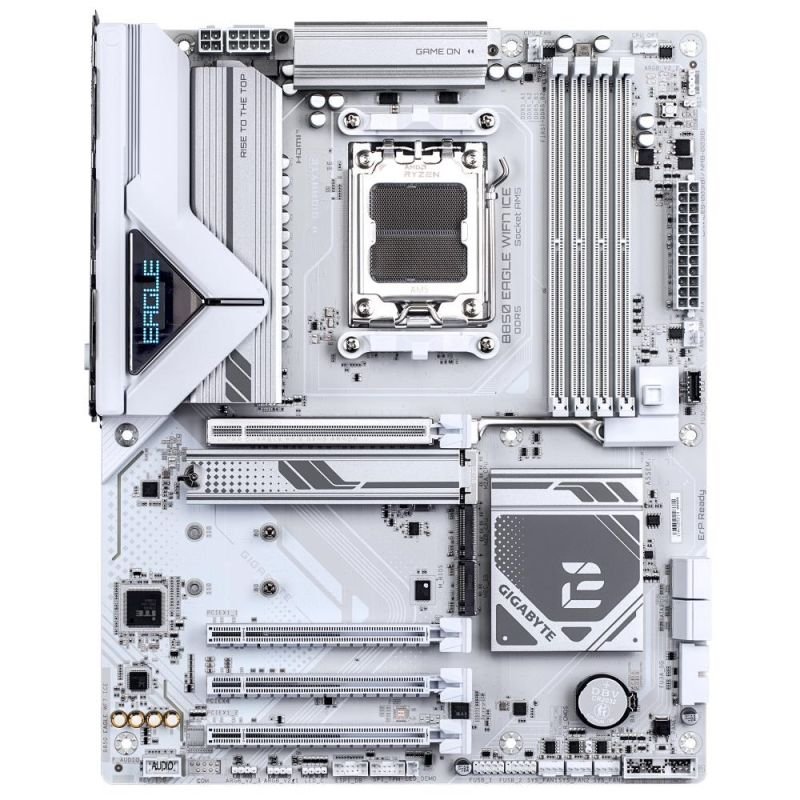

GIGABYTE B850 EAGLE WIFI7 ICE AMD B850 AM5 ATX Socket

Technical details Warranty period: 3 years Processor Supported CPU sockets: Socket AM5 Processor manufacturer: AMD Processor AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series Processor socket: Socket AM5 Graphics DirectX Version: 12.0 Parallel Processing Support: Not Supported Maximum resolution: 4096 x 2160 px HDCP: Yes Built-in graphics card: No Memory Supported memory clock speeds 8000 6000 MHz 8200 5600 MHz 6400 MHz 7900 7800 7950 4400 MHz 4800 MHz 7000 5800 MHz 7600 7400 7200 5200 MHz 6200 MHz 6600 6800 Maximum internal memory per slot: 64 GB ECC Compatibility: Non-ECC Maximum memory capacity: 256 GB Unbuffered memory: Yes Memory slot type: DIMM Supported memory types: DDR5-SDRAM Memory Channel Support: Dual Channel Number of memory slots: 4 Supported memory clock speed (max): 8200 MHz Characteristics Audio chip: Realtek ALC897 Power supply type: ATX Monitoring computer status Fan Tension Temperature Water cooling Audio output channels: 7.1 ch. Chipset Board Family: AMD Product color: White Motherboard Layout: AMD B850 Motherboard format: ATX Cooling type: Passive Intended use: PC Supported Windows operating systems: Windows 11 x64 Weight and dimensions Product depth: 244 mm Product height: 35 mm Product width: 305 mm Internal I/O Number of CPU fan connectors: 2 Number of water pump connections: 2 Number of EPS power connectors (8-pin): 1 Number of RGB LED connectors: 4 Number of SATA III connectors: 4 ATX power socket (24-pin): Yes Front panel audio connector: Yes Number of USB 2.0 ports: 2 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 12V power connector: Yes RGB LED: Yes Front panel connector: Yes Peripheral (Molex) Power Connectors (4-pin): 1 Number of case fan connectors: 4 CPU fan connector: Yes EPS power supply connector (8-pin): Yes TPM Connector: Yes Network Bluetooth: Yes LAN controller: Realtek RTL8125 WLAN controller model: Realtek RTL8922AE Wi-Fi: Yes Basic Wi-Fi standard: Wi-Fi 7 (802.11be) Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi standards Wi-Fi 6 (802.11ax) Wi-Fi 7 (802.11be) Wi-Fi 5 (802.11ac) 802.11g 802.11a Wi-Fi 6E (802.11ax) 802.11b Wi-Fi 4 (802.11n) Wired LAN: Yes Bluetooth version: 5.4 BIOS System BIOS (SMBIOS) version: 2.7 BIOS Type: UEFI AMI Desktop Management Interface (DMI) Version: 2.7 Clear CMOS Jumper: Yes BIOS memory size: 256 Mbit ACPI version: 5.0 Packaging data Weight with packaging: 1.89 kg Package depth: 270 mm Package width: 335 mm Package height: 80 mm Package contents Antenna Included: Yes Batteries included: Yes Screws Included: Yes Memory drivers RAID Service: Yes Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III Supported drive types: HDD & SSD RAID levels 0 10 1 Number of supported storage drive sizes: 7 Number of supported HDDs: 4 Rear Panel I/O Ports DisplayPort version: 1.4 Number of USB 2.0 ports: 4 Number of Ethernet LAN ports (RJ-45): 1 DisplayPort Quantity: 1 Number of HDMI ports: 1 Number of PS/2 ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 Line Input: Yes Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2 HDMI version: 1.4 WiFi-AP Antenna Jack Plug: 2 Headphone outputs: 1 Microphone: Yes Expansion slots 3. M.2 highest generation PCI Express: 4.0 2nd largest M.2 key size: 22110 2. M.2 highest generation PCI Express: 4.0 1. M.2 highest generation PCI Express: 5.0 1. largest M.2 key size: 22110 3. largest M.2 key size: 22110 PCI Express x16 (Gen 5.x) slots: 1 PCI Express x16 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 3 Battery Lithium battery weight: 0.07 g Battery weight: 3 g Number of battery compartments: 1 Supported battery type: CR2032 Battery type: Lithium-Manganese Dioxide (LiMnO2) Other functions Product weight: 1.69 kg Logistics data Products per shipping crate (inner): 1 pc.
