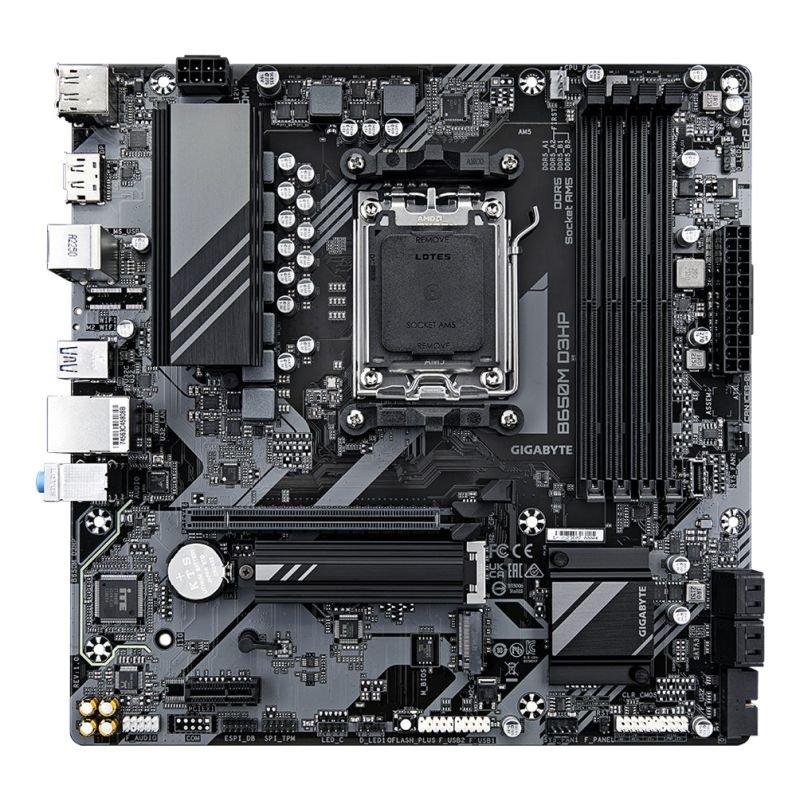

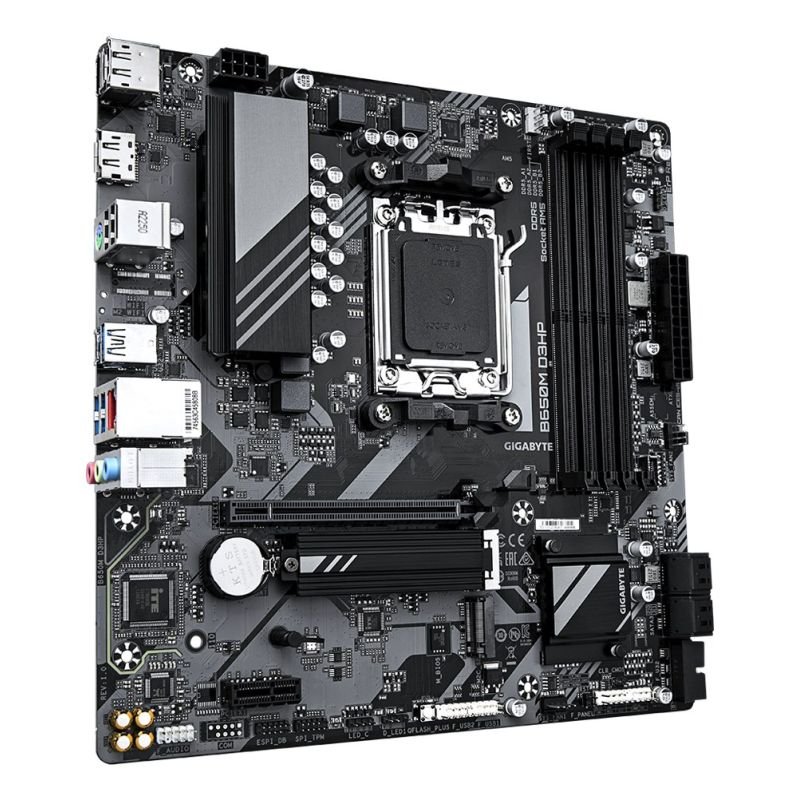

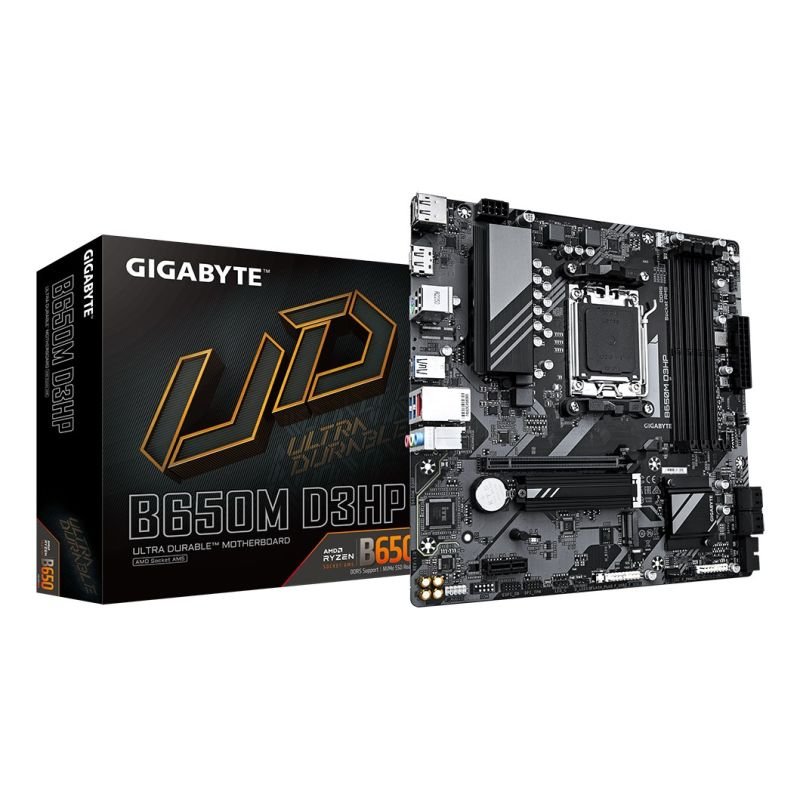

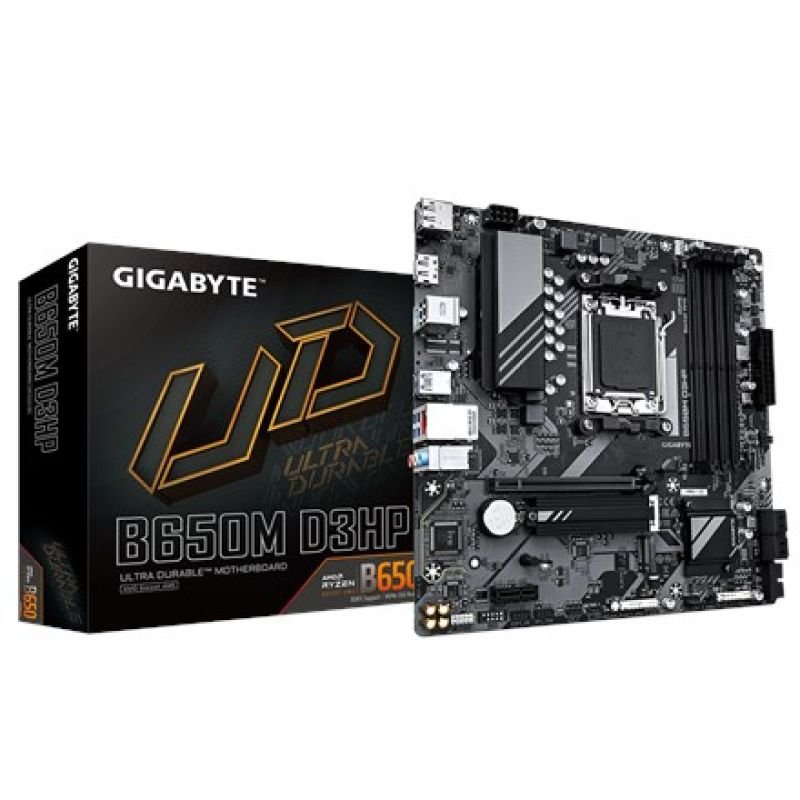

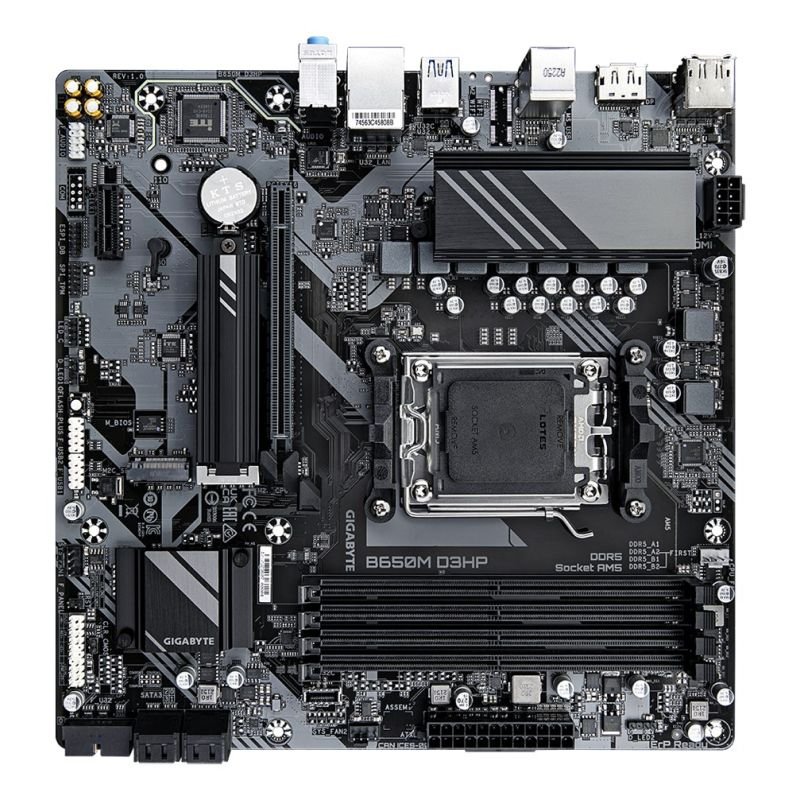

GIGABYTE B650M D3HP AMD B650 Motherboard Socket AM5 Micro ATX

Technical details Warranty period: 3 years Processor Supported CPU sockets: Socket AM5 Processor manufacturer: AMD Processor AMD Ryzen 9000 Series AMD Ryzen 7000 Series AMD Ryzen 8000 Series Processor socket: Socket AM5 Graphics DirectX Version: 12.0 HDCP: Yes Discrete graphics support: Yes Parallel Processing Support: Not Supported Maximum resolution: 4096 x 2160 px Memory Supported memory clock speeds 7200 6200 MHz 7600 5600 MHz 6400 MHz 6000 MHz 5200 MHz 4800 MHz 7000 6600 6800 Unbuffered memory: Yes Maximum memory capacity: 256 GB Supported memory clock speed (max): 7600 MHz Memory slot type: DIMM Number of memory slots: 4 Memory Channel Support: Dual Channel Supported memory types: DDR5-SDRAM Maximum internal memory per slot: 64 GB ECC Compatibility: Non-ECC Characteristics Motherboard Layout: AMD B650 Product color: Brown Audio chip: Realtek ALC897 Power supply type: ATX Intended use: PC Monitoring computer status Fan Tension Temperature Audio output channels: 7.1 ch. Chipset Board Family: AMD Motherboard format: Micro ATX Supported Windows operating systems Windows 10 x64 Windows 11 x64 Weight and dimensions Product width: 244 mm Product height: 35 mm Product depth: 244 mm Internal I/O Number of USB 2.0 ports: 2 Number of SATA III connectors: 4 ATX power socket (24-pin): Yes Front panel connector: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 12V power connector: Yes Front panel audio connector: Yes EPS power supply connector (8-pin): Yes CPU fan connector: Yes Number of case fan connectors: 2 TPM Connector: Yes USB 3.2 Gen 2 (3.1 Gen 2) ports: 1 RGB LED: Yes Number of RGB LED connectors: 3 Number of EPS power connectors (8-pin): 1 Number of CPU fan connectors: 1 Network LAN controller: Realtek RTL8125 Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: No Wired LAN: Yes BIOS BIOS Type: UEFI AMI Clear CMOS Jumper: Yes BIOS memory size: 256 Mbit ACPI version: 5.0 Desktop Management Interface (DMI) Version: 2.7 System BIOS (SMBIOS) version: 2.7 Packaging data Package depth: 265 mm Package height: 54 mm Weight with packaging: 1.02 kg Package width: 265 mm Package contents Screws Included: Yes Batteries included: Yes Memory drivers Supported drive types: HDD & SSD Supported hard drive interfaces: M.2, SATA III Number of supported storage drive sizes: 6 Number of supported HDDs: 4 RAID levels 0 10 1 RAID Service: Yes Rear Panel I/O Ports HDMI version: 2.1 Number of PS/2 ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1 Line Input: Yes Number of USB 2.0 ports: 2 Headphone outputs: 1 Number of DisplayPorts: 2 DisplayPort version: 1.4 Number of Ethernet LAN ports (RJ-45): 1 Microphone: Yes Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Number of HDMI ports: 1 Expansion slots Number of M.2 (M) slots: 2 PCI Express x1 (Gen 3.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 2nd largest M.2 key size: 22110 2. M.2 highest generation PCI Express: 4.0 1. M.2 highest generation PCI Express: 4.0 1. largest M.2 key size: 2580 Battery Supported battery type: CR2032 Battery weight: 3 g Number of battery compartments: 1 Battery type: Lithium-Manganese Dioxide (LiMnO2) Lithium battery weight: 0.07 g Logistics data Country of origin: China Products per shipping crate (inner): 1 pc.
