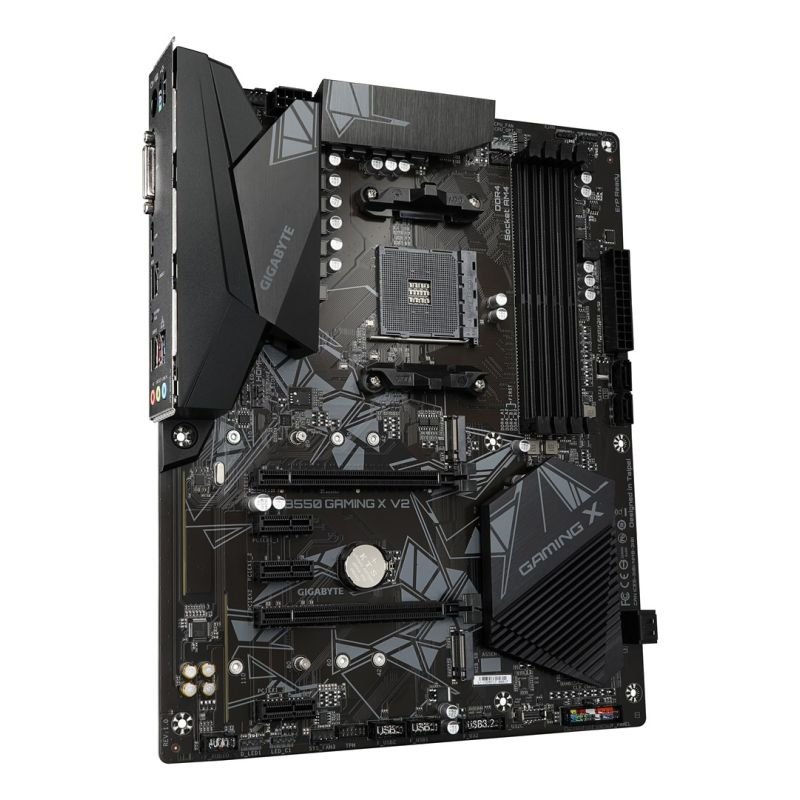

Gigabyte B550 GAMING X V2 Motherboard

Technical details Warranty period: 3 years Processor Supported processor sockets: Socket AM4 Processor manufacturer: AMD Maximum number of SMP processors: 1 Processor socket: Socket AM4 Processor AMD Ryzen 5000 Series AMD Ryzen 4000 Series AMD Ryzen 3000 Series Graphics Parallel Processing Support: Not Supported DirectX Version: 12.0 HDCP: Yes Memory Supported memory types: DDR4-SDRAM ECC Compatibility: ECC or Non-ECC Memory slot type: DIMM Maximum internal memory per slot: 32 GB Supported memory clock speed (max): 4733 MHz Memory Channel Support: Dual Channel Number of memory slots: 4 Supported memory clock speeds 2667 MHz 3200 MHz 2133 MHz 4266 MHz 3600 MHz 2400 MHz 4000 MHz 2933 MHz 4733 MHz 3733 MHz 3466 MHz 4400 MHz 4133 MHz 3400 MHz 3866 MHz 4600 MHz Maximum memory capacity: 128 GB Unbuffered memory: Yes Characteristics Chipset Board Family: AMD Power supply type: ATX Supported Windows operating systems Windows 11 x64 Windows 10 x64 Cooling type: Passive Audio chip: Realtek ALC897 Monitoring computer status Water cooling Fan Tension Temperature Audio output channels: 7.1 ch. Motherboard Layout: AMD B550 Motherboard format: ATX Product color: Brown Weight and dimensions Product depth: 244 mm Product height: 35 mm Product width: 305 mm Internal I/O 12V power connector: Yes Number of SATA III connectors: 4 Front panel connector: Yes Number of RGB LED connectors: 5 ATX power socket (24-pin): Yes Number of water pump connections: 4 RGB LED: Yes CPU fan connector: Yes Number of CPU fan connectors: 1 EPS power supply connector (8-pin): Yes Number of case fan connectors: 3 TPM Connector: Yes Number of EPS power connectors (8-pin): 1 Front panel audio connector: Yes Number of USB 2.0 ports: 2 USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Network Wi-Fi: No Ethernet interface type: Gigabit Ethernet Wired LAN: Yes LAN controller: Realtek RTL8111H BIOS BIOS Type: UEFI AMI Clear CMOS Jumper: Yes Desktop Management Interface (DMI) Version: 2.7 Packaging data Package depth: 270 mm Package width: 335 mm Package height: 80 mm Weight with packaging: 1.71 kg Package contents Batteries included: Yes Screws Included: Yes Memory drivers RAID Service: Yes RAID levels 1 10 0 Number of supported HDDs: 4 Number of supported storage drive sizes: 6 Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD Rear Panel I/O Ports Number of USB 2.0 ports: 2 Microphone: Yes Line Input: Yes Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 Number of HDMI ports: 1 Headphone outputs: 1 Number of Ethernet LAN ports (RJ-45): 1 Number of PS/2 ports: 1 HDMI version: 2.1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Number of DVI-D ports: 1 Expansion slots 2nd largest M.2 key size: 22110 PCI Express x16 (Gen 3.x) slots: 2 Number of M.2 (M) slots: 2 1. largest M.2 key size: 22110 2. M.2 highest generation PCI Express: 3.0 PCI Express x16 (Gen 4.x) slots: 1 PCI Express x1 (Gen 3.x) slots: 3 1. M.2 highest generation PCI Express: 4.0 Battery Number of battery compartments: 1 Lithium battery weight: 0.07 g Battery weight: 3 g Battery type: Lithium-Manganese Dioxide (LiMnO2) Supported battery type: CR2032 Other functions DVI port: Yes Product weight: 1.12 kg Logistics data Harmonized System (HS) code: 84733020 Products per shipping crate (inner): 1 pc. Country of origin: China
