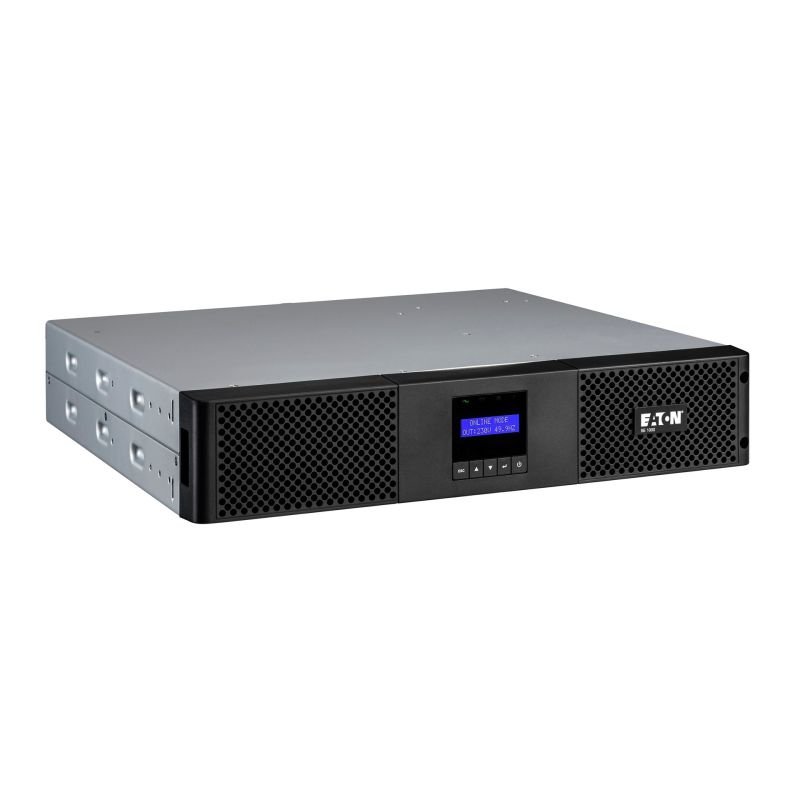

Eaton – 9E 1000i Rack2U UPS

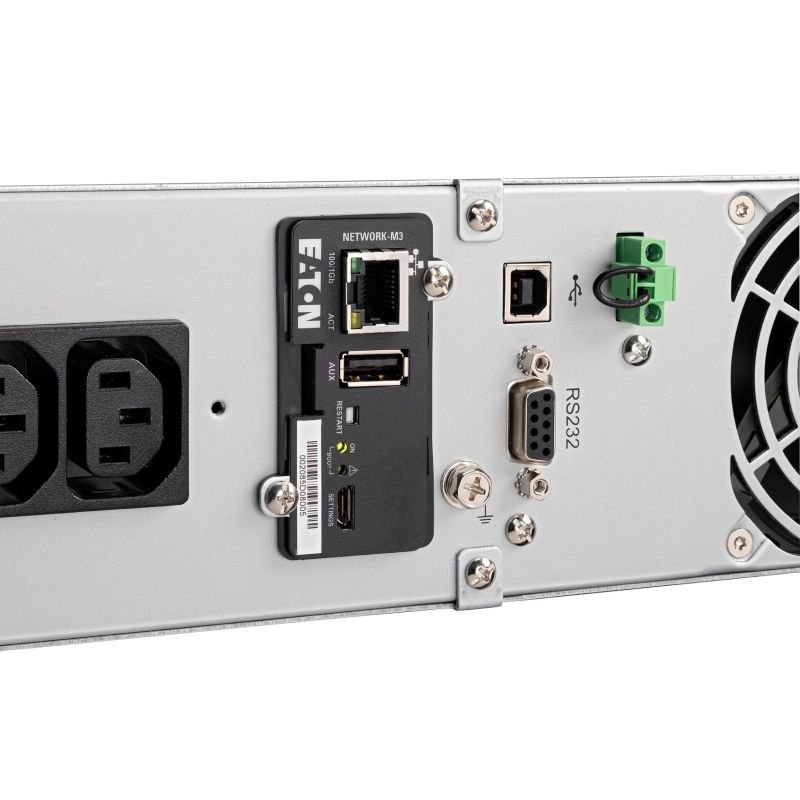

Technical details Environmental certificate (sustainability): CE Sustainability: Yes Characteristics Input frequency: 40/70 Hz Efficiency: 90% Audible alarm: Yes Heat emission: 375 BTU/h Power supply type: AC Efficiency (ECO mode): 95.5% UPS Topology: Double Conversion (Online) Waveform: Sine Output operating voltage (minimum): 240 V Input power factor: 99 Actual power: 900 W Input operating voltage (minimum): 120 V Maximum configurable power: 1 kVA Output power factor: 0.9 Output frequency: 50/60 Hz Number of input phases: 1 Input operating voltage (maximum): 276 V Output operating voltage (maximum): 220 V Noise level: 41 dB Number of output phases: 1 Design Rack capacity: 2U Product color: Black Control Type: Buttons Layout: Tower Display type: LCD LEDs: Yes Weight and dimensions Product depth: 438 mm Product width: 438 mm Product height: 86.5 mm Product weight: 17.6 kg Working conditions Temperature range (operation): 0 – 40 °C Relative humidity range: 0 – 96% Packaging data Cables: Power output cable, USB cable Quick Installation Guide: Yes Hook mounting kit: Yes Ports and interfaces SCSI interface: RS-232 Serial communication ports: 1 RS-232 port: 1 Plug: C13 panel USB port: Yes Serial interface: Yes AC Output Types C13 panel C14 panel Number of network sockets: 4 x network socket Battery Battery capacity: 7 Ah Typical backup time at full load: 6 min Number of batteries supported: 3 Battery voltage: 12 V Typical backup time at half load: 15 min Battery type: Lead-acid battery Safety warning Warnings Do not disassemble the device housing, as this may result in electric shock. Keep away from sources of fire and water. The device should be used in well-ventilated areas to avoid overheating.
