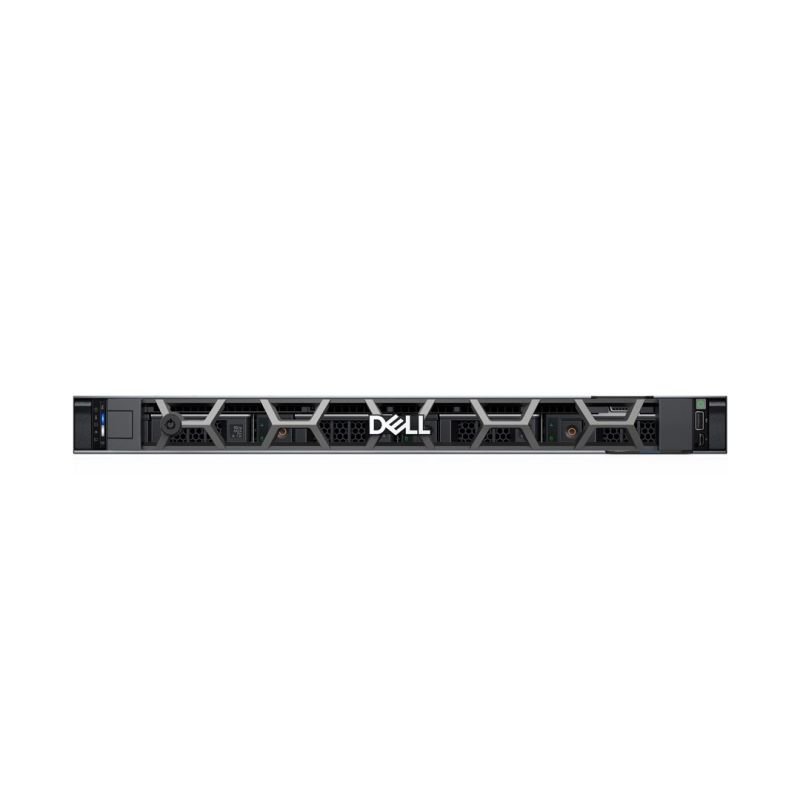

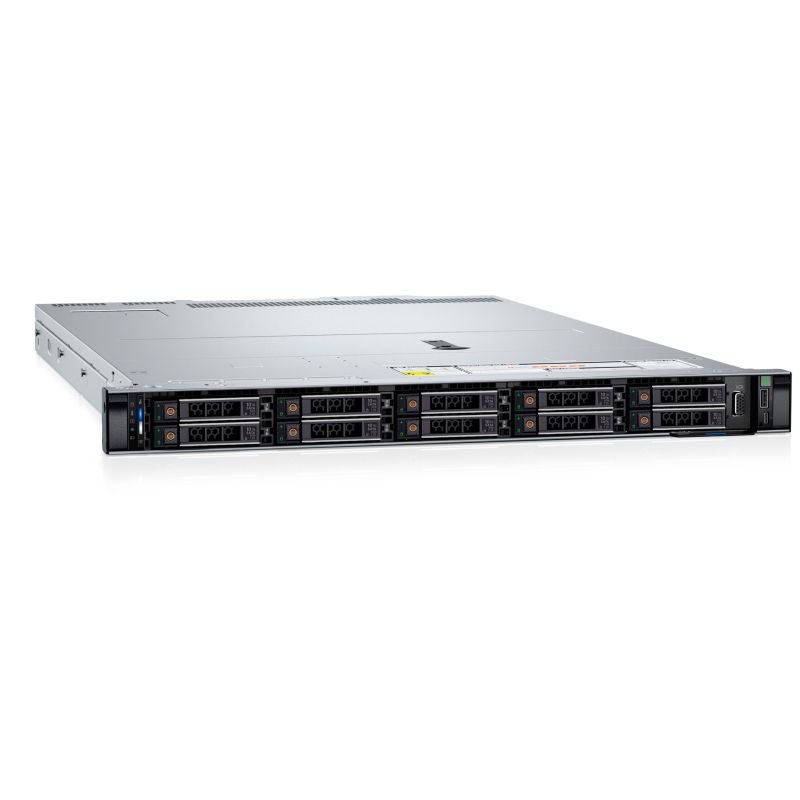

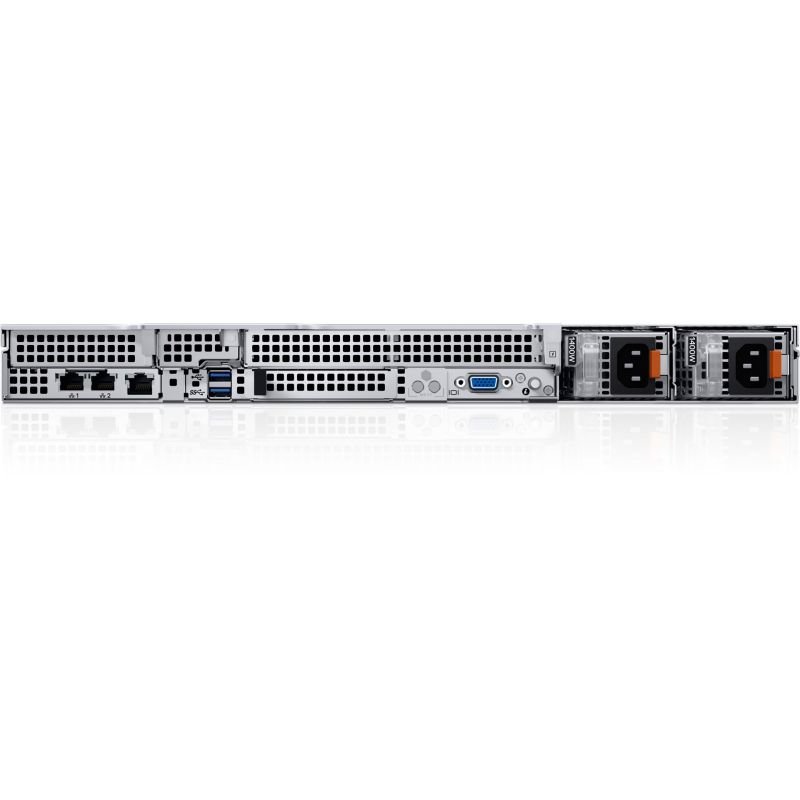

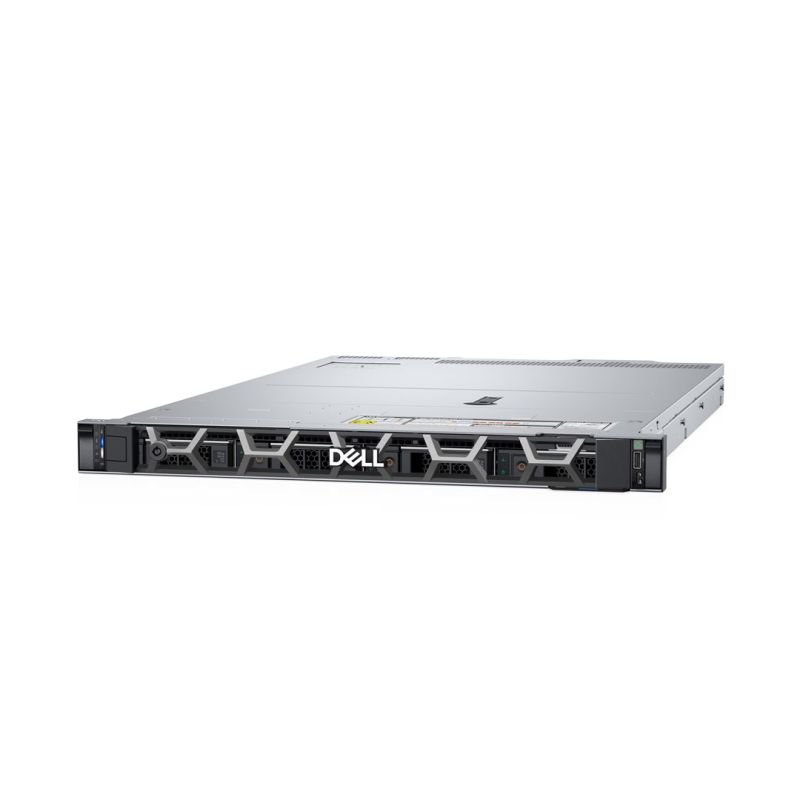

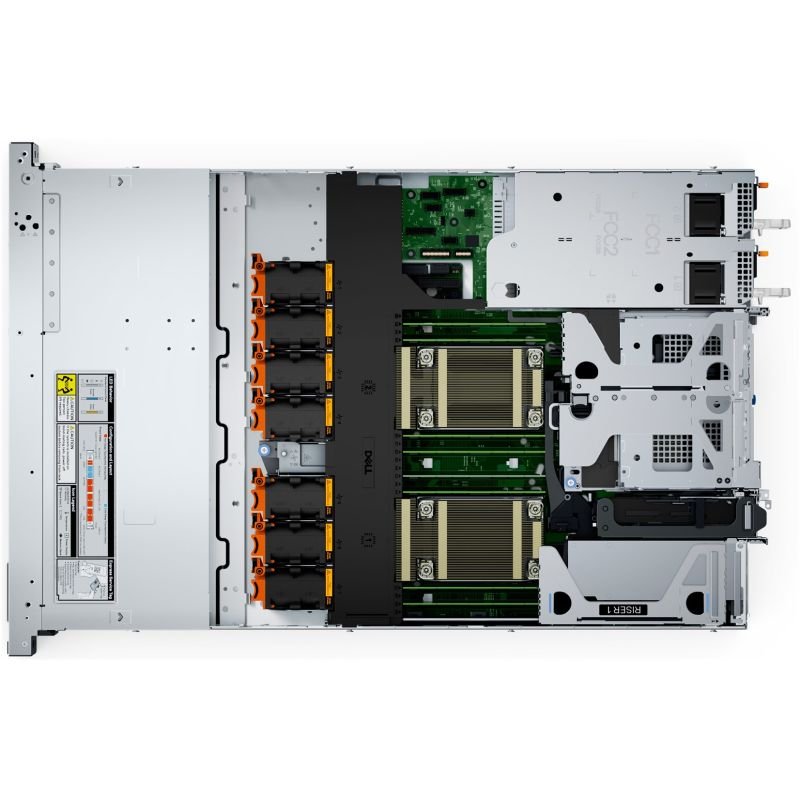

DELL PowerEdge R660XS server 960 GB Rack (1U) Intel® Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W

Technical details Supported RAID configuration: Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) Processor Memory clock speed supported by the processor: 4400 MHz Motherboard Layout: Intel C741 Memory types supported by the processor: DDR5-SDRAM System bus rate: 16 GT/s Processor type: Intel® Xeon Silver Processor model: 4514Y Number of processor cores: 16 Maximum processor clock speed: 3.4 GHz Processor Cache: 30 MB Number of processors: 1 Processor manufacturer: Intel Number of threads: 32 Thermal Design Power (TDP): 150 W Processor clock speed: 2 GHz Memory Buffer memory type: Registered (buffered) RAM: 64 GB Memory slots: DIMM x 16 Maximum memory capacity: 1 TB RAM type: DDR5-SDRAM Memory data transfer rate: 5600 MT/s Memory chip: 2 x 32 GB Memory Ranking: 2 Design Housing: Rack (1U) Railings: Yes Frame: Yes Product color: Black Power Number of installed redundant power sources: 2 Power supply input voltage: 100-240 V Power supply: 1100 W Backup Power Supply (RPS) Support: Yes Weight and dimensions Product width: 434 mm Product height: 42.8 mm Working conditions Permissible altitude (above sea level): 0 – 12000 m Permissible relative humidity: 5 – 95% Permissible operating altitude (above sea level): 0 – 3048 m Temperature range (operation): 10 – 35 °C Temperature range (storage): -40 – 65 °C Network LAN Controller: Broadcom 5720 Ethernet interface type: Gigabit Ethernet Wired LAN: Yes Cabling technology: 10/100/1000Base-T(X) Efficiency Trusted Platform Module (TPM): Yes TPM version: 2.0 Remote Administration: iDRAC9, Enterprise 16G Expansion slots PCI Express x16 (Gen 4.x) slots: 1 PCI Express x8 (Gen 5.x) slots: 1 Software Installed operating system: None Certificates 80 PLUS Certified: 80 PLUS Titanium Data carrier SSD storage interface: SATA III SSD memory capacity: 480 GB Hot Plug Support: Yes Number of SSDs installed: 2 Supported RAID Controllers: Front PERC H755 Front Load Total disk capacity: 960 GB Optical drive: No Number of SSDs supported: 8 Supported SSD sizes: 2.5″ SSD size: 2.5″ Ports and interfaces Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1 Number of USB 2.0 ports: 2 Number of VGA (D-Sub) ports: 2 Other functions Bits per sector: 512 Target Workload: Read Intensive (RI) Data transfer speed: 6 Gbit/s Open Compute Project (OCP): NIC 3.0 Carbon footprint Total carbon dioxide emissions, standard deviation (kg CO2e): 3677 Total carbon footprint (kg of CO2e): 6561 PAIA Version: PAIA 1.3.2, 2022 Carbon dioxide emissions, production (kg CO2e): 459.27 Carbon dioxide emissions, energy consumption (kg CO2e): 5970.51 Carbon dioxide emissions, logistics (kg CO2e): 131.22
