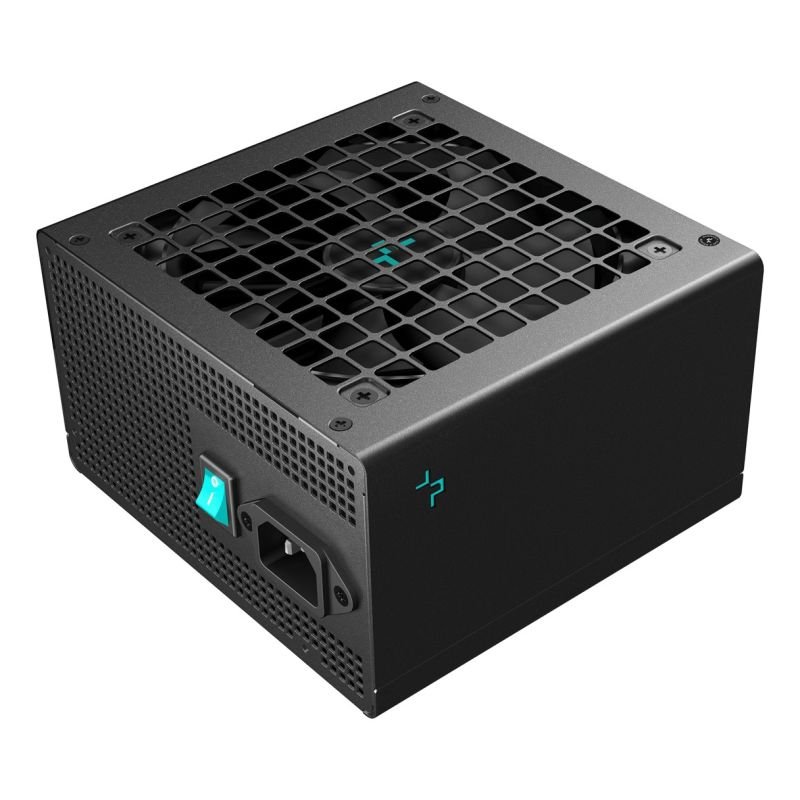

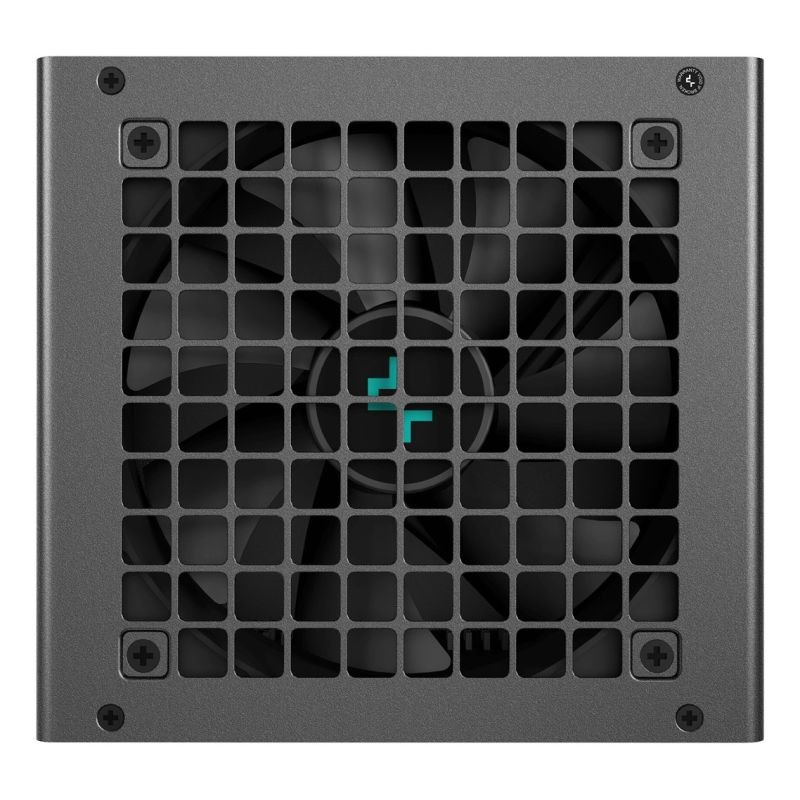

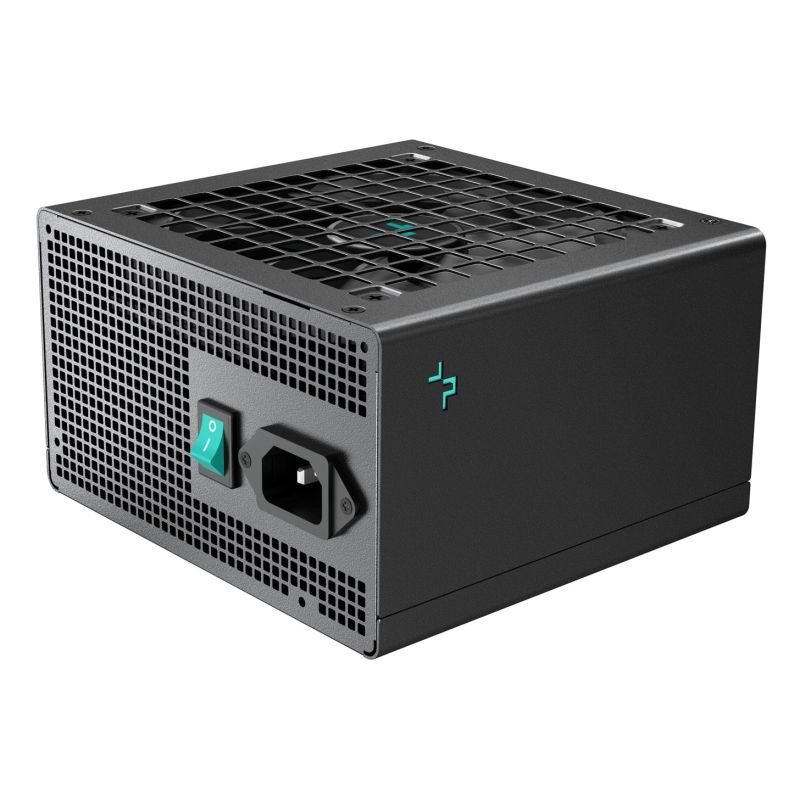

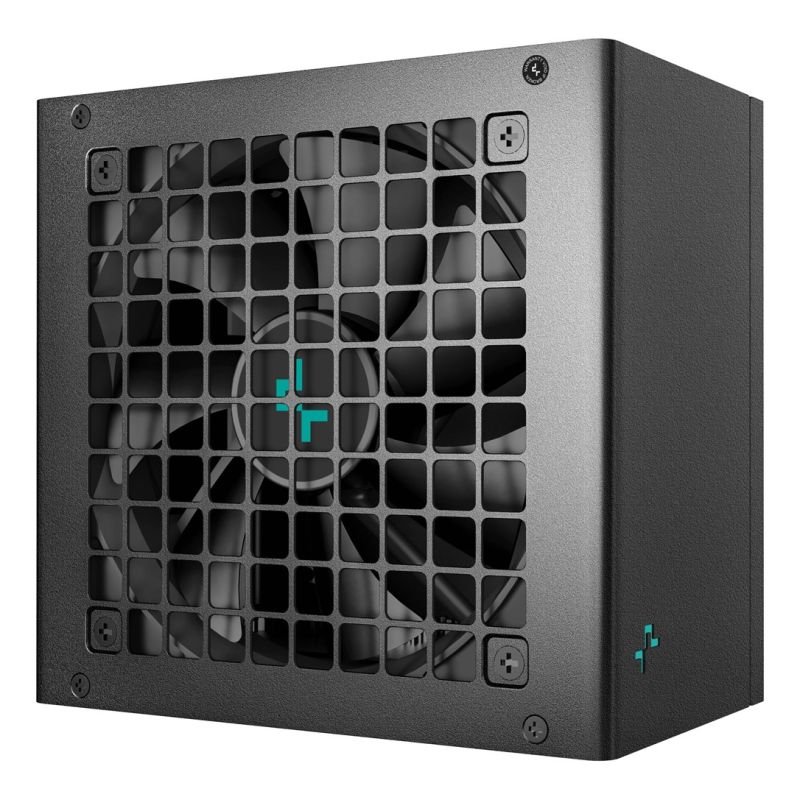

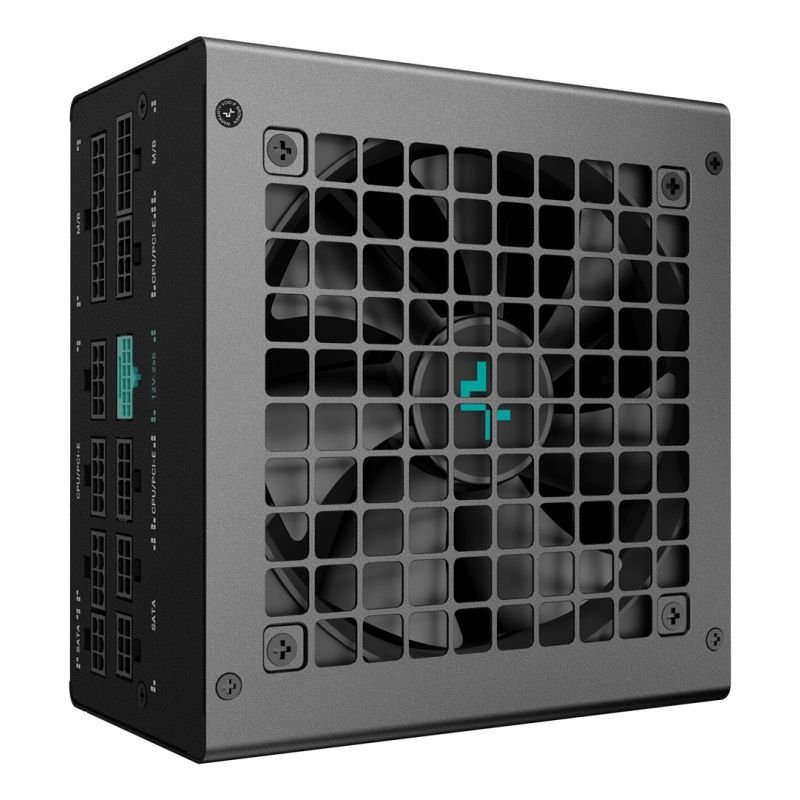

Deepcool PN850M 850w Gold Modular Power Supply

Technical details Sustainability: Yes Environmental certificate (sustainable development) Triman ErP Design Fan Location: Top Built-in switch: Yes Product color: Black Cooling type: Active Fan bowl diameter: 12 cm Number of fans: 1 fan Power Power protection features Surge protection Overload protection Short circuit Overheating protection No load operation Surge & inrush protection (SIP) Low voltage protection Protection against overvoltage Total power (+3.3V): 110 W Efficiency: 90% PFC (Power Factor Correction) Type: Active Input current: 10 – 5 A Total power (-12V): 3.6 W Total power (+5 Vsb): 15 W Maximum output current (+3.3V): 20 A AC input voltage: 100 – 240 V Total power: 850 W Maximum output current (-12V): 0.3A AC input frequency: 50/60 Hz Maximum output current (+12V): 70.5A Total power (+5V): 110 W Hold time: 16 ms Maximum output current (+5 Vsb): 3 A Total power (+12V): 846 W Maximum output current (+5V): 20A Good Signal Power Delay Range: 100 – 150 ms Weight and dimensions Product height: 86 mm Product depth: 140 mm Product width: 150 mm Working conditions Temperature range (operation): 0 – 40 °C Efficiency Bearing Technology: FDB ATX version: 3.1 Intended use: PC MTBF (Mean Time Between Failures): 100000 h 80 PLUS Certificate: 80 PLUS Gold Power supply type (PSU): ATX Packaging data Packaging type: Box Package contents Wires: Alternating Current Cable clamps included: Yes Certificates Certificates of conformity RoHS Federal Communications Commission (FCC) CCC WEEE RCM CE EAC Ports and interfaces Motherboard power connector: 20+4 pin ATX SATA power cable length 450 690 mm 810 570 CPU power cable length: 70 cm Wiring Type: Fully Modular PCI Express power connectors (6+2 pin): 3 Number of SATA power connectors: 8 Peripheral (Molex) Power Connectors (4-pin): 2 Motherboard cable length: 55 cm ATX power supply connector (20+4 pin): Yes PCI Express power connectors (16-pin): 1 Peripheral (Molex) Power cable length: 930 mm CPU power supply connector (4+4 pin): Yes
