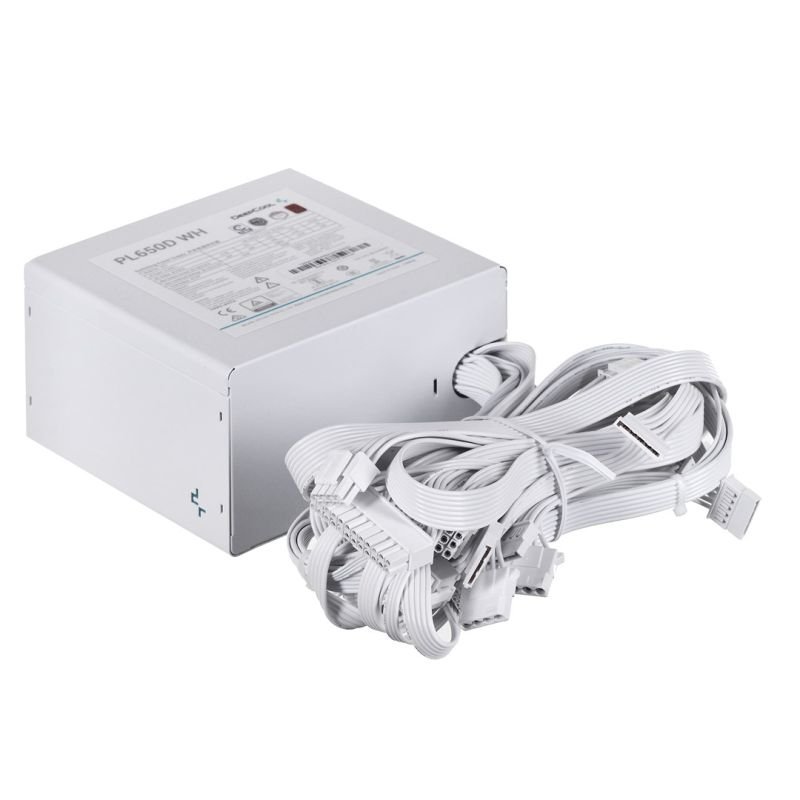

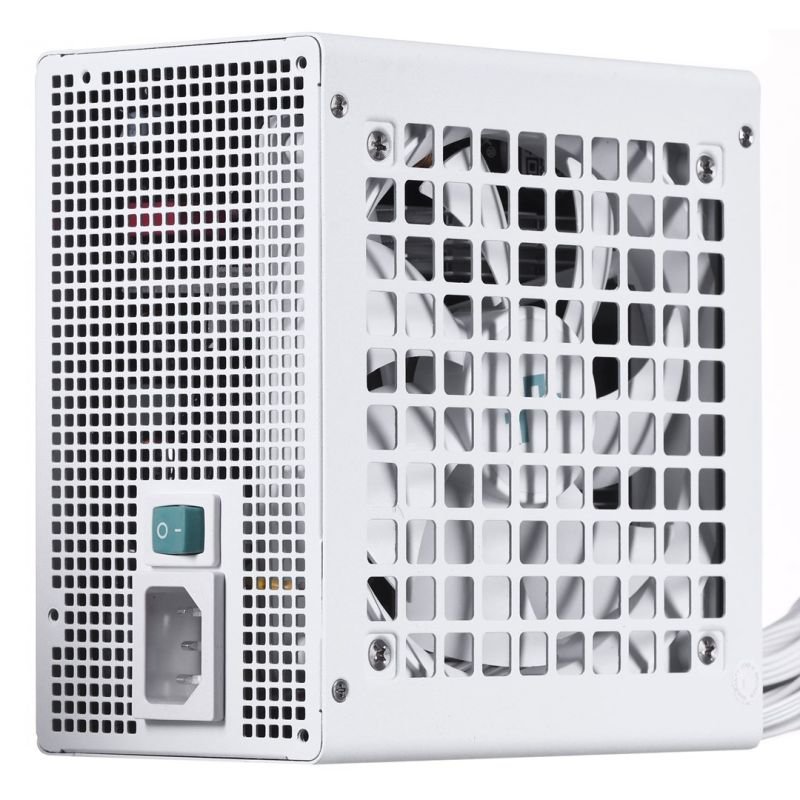

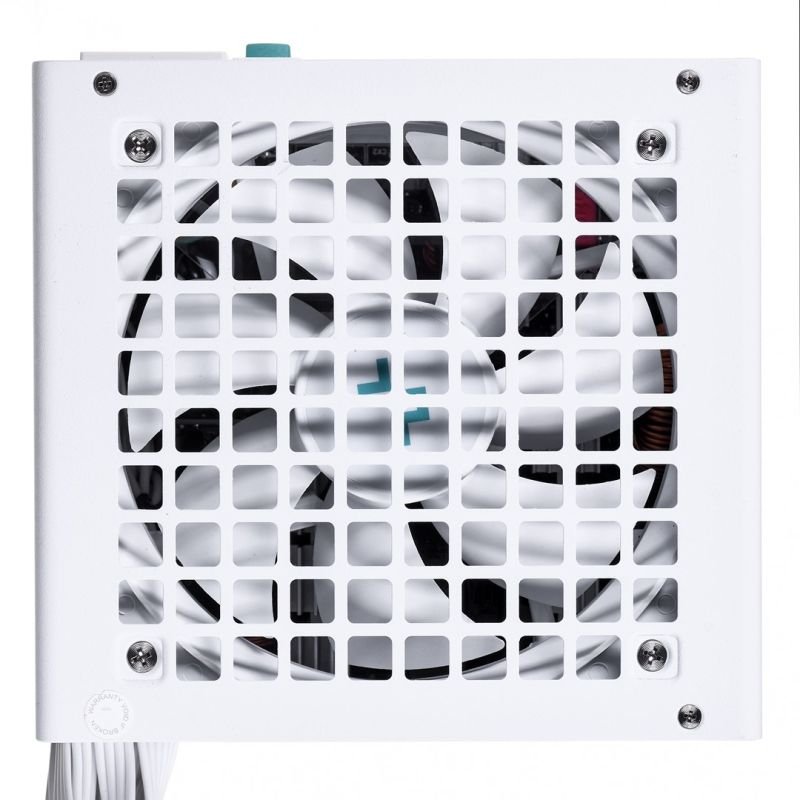

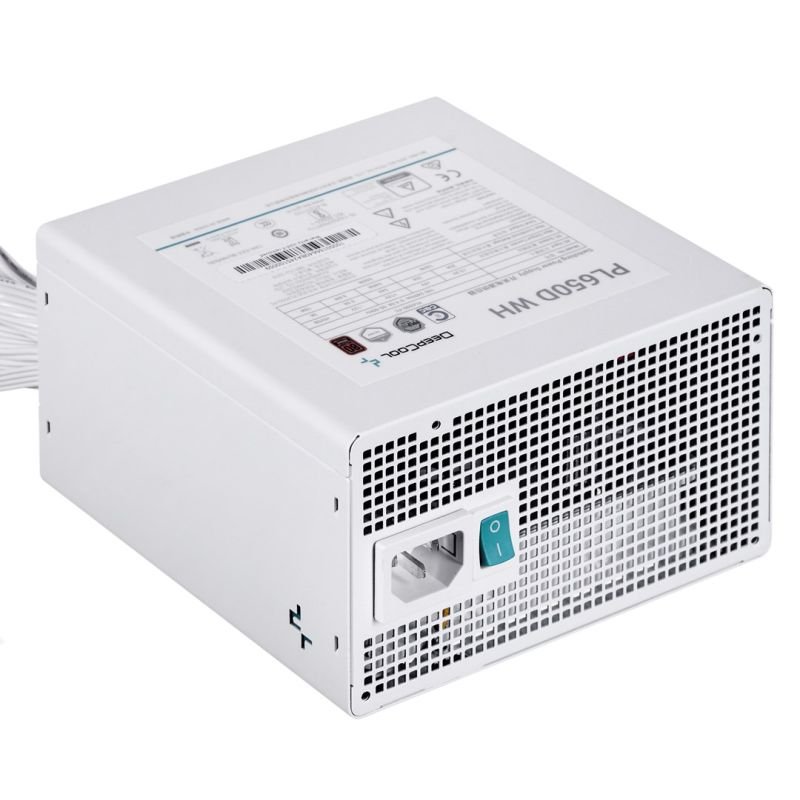

Deepcool PL650D WH 650W Bronze white power supply

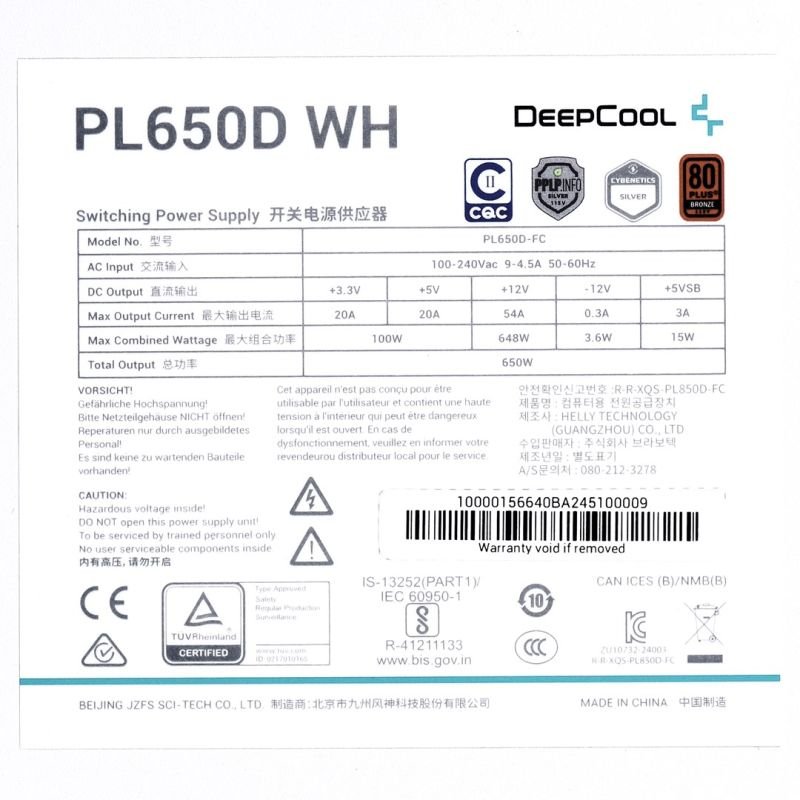

Technical details Environmental certificate (sustainable development) ErP Triman Sustainability: Yes Design Product color: White Cooling type: Active Built-in switch: Yes Fan bowl diameter: 12 cm Number of fans: 1 fan Fan Location: Top Power AC input voltage: 100 – 240 V Input current: 9 – 4.5 A AC input frequency: 50/60 Hz PFC (Power Factor Correction) Type: Active Maximum output current (-12V): 0.3A Maximum output current (+12V): 54 A Power protection features Overheating protection Protection against overvoltage Overcurrent Surge protection Low voltage protection No load operation Surge & inrush protection (SIP) Overload protection Total power (+12V): 648 W Total power: 650 W Hold time: 16 ms Maximum output current (+3.3V): 20 A Maximum output current (+5V): 20A Maximum output current (+5 Vsb): 3 A Efficiency: 85% Total power (-12V): 3.6 W Total power (+3.3V): 100 W Good Signal Power Delay Range: 100 – 150 ms Total power (+5V): 100 W Total power (+5 Vsb): 15 W Weight and dimensions Product width: 150 mm Product depth: 140 mm Product height: 86 mm Working conditions Temperature range (operation): 0 – 40 °C Efficiency ATX version: 3.0 80 PLUS Certificate: 80 PLUS Bronze MTBF (Mean Time Between Failures): 100000 h Bearing technology: HYB Power supply type (PSU): ATX Intended use: PC Packaging data Packaging type: Box Certificates Certificates of conformity RoHS WEEE Ports and interfaces PCI Express power connectors (16-pin): 1 Peripheral (Molex) Power Connectors (4-pin): 2 SATA power cable length 550 650 450 Motherboard power connector: 20+4 pin ATX CPU power supply connector (4+4 pin): Yes Wiring Type: Non-Modular PCI Express power connectors (6+2 pin): 3 Motherboard cable length: 55 cm Number of SATA power connectors: 6 ATX power supply connector (20+4 pin): Yes
