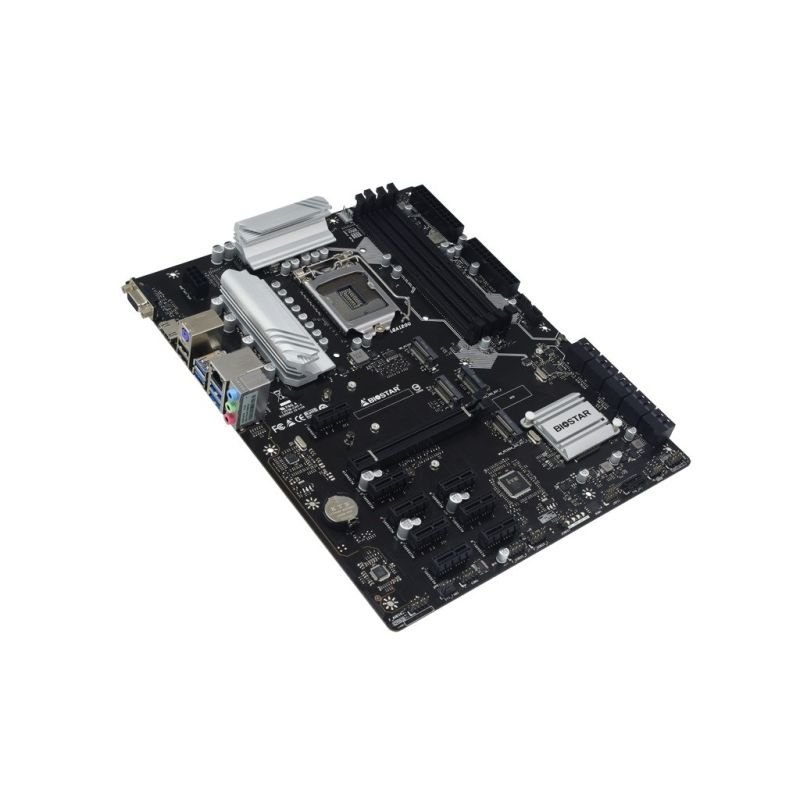

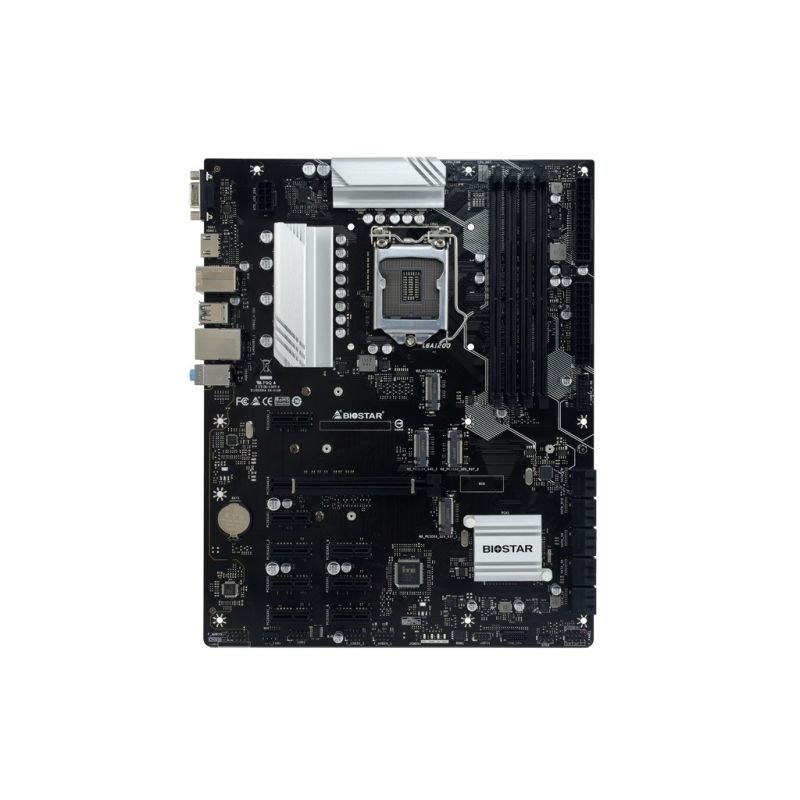

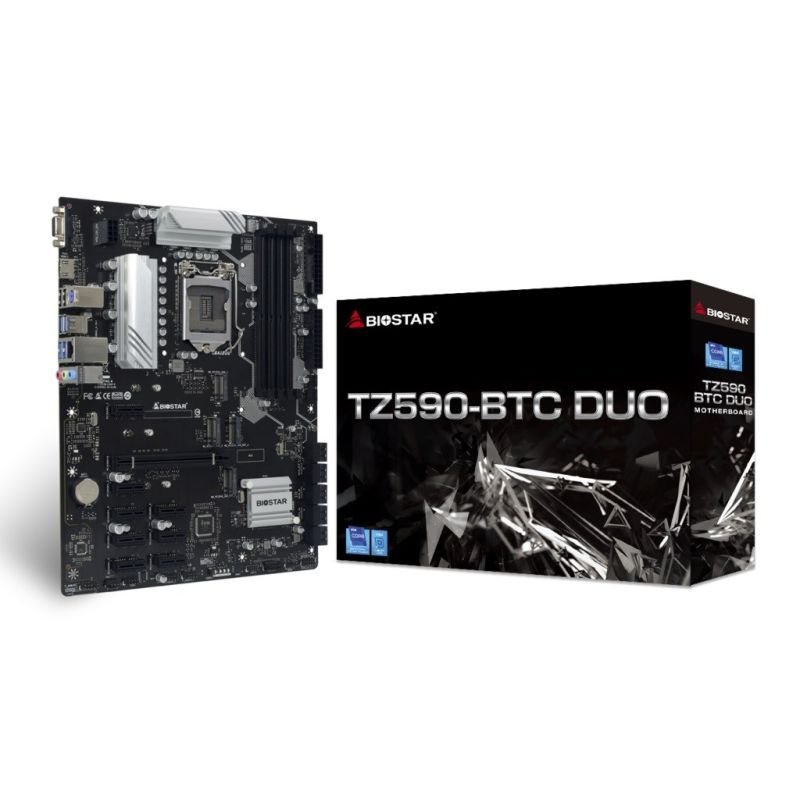

BIOSTAR TZ590-BTC DUO motherboard

Processor Processor manufacturer: Intel Processor Intel® Core™ i9 Intel® Core™ i3 Intel® Core™ i7 Intel® Core™ i5 Processor socket: LGA 1200 (Socket H5) Graphics HDCP: Yes Memory Supported memory clock speeds 2933 MHz 2133 MHz 2800 MHz 3200 MHz 2666 MHz 3600 MHz 2400 MHz Maximum memory capacity: 128 GB Supported memory clock speed (max): 3600 MHz Number of memory slots: 4 Memory Channel Support: Dual Channel ECC Compatibility: Non-ECC Supported memory types: DDR4-SDRAM Characteristics Motherboard Layout: Intel Z590 Audio output channels: 7.1 ch. Motherboard format: ATX Audio chip: Realtek ALC887 Product color: Black Chipset Board Family: Intel Supported Windows operating systems Windows 10 x64 Windows 11 x64 Weight and dimensions Product width: 305 mm Product depth: 244 mm Internal I/O Number of USB 2.0 ports: 2 USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 TPM Connector: Yes ATX power socket (24-pin): Yes Front panel connector: Yes Number of COM sockets: 1 Number of SATA III connectors: 10 CPU fan connector: Yes EPS power supply connector (8-pin): Yes Front panel audio connector: Yes Network LAN Controller: Intel I219V Ethernet network interface type Fast Ethernet Gigabit Ethernet Wi-Fi: No Mobile network connectivity: No Wired LAN: Yes Memory drivers Supported hard drive interfaces: M.2, SATA III Number of supported HDDs: 10 Number of supported storage drive sizes: 14 Rear Panel I/O Ports Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of Ethernet LAN ports (RJ-45): 1 Number of USB 2.0 ports: 2 Number of VGA (D-Sub) ports: 1 Number of PS/2 ports: 1 Number of HDMI ports: 1 Expansion slots PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 4 PCI Express x1 (Gen 3.x) slots: 8 Safety warning Warnings Be careful when installing to avoid damage to electronic components caused by electrostatic discharge. Avoid contact with liquids that may damage electronic components. Do not make any changes or modifications to the device, which may result in voiding the warranty or damage.
