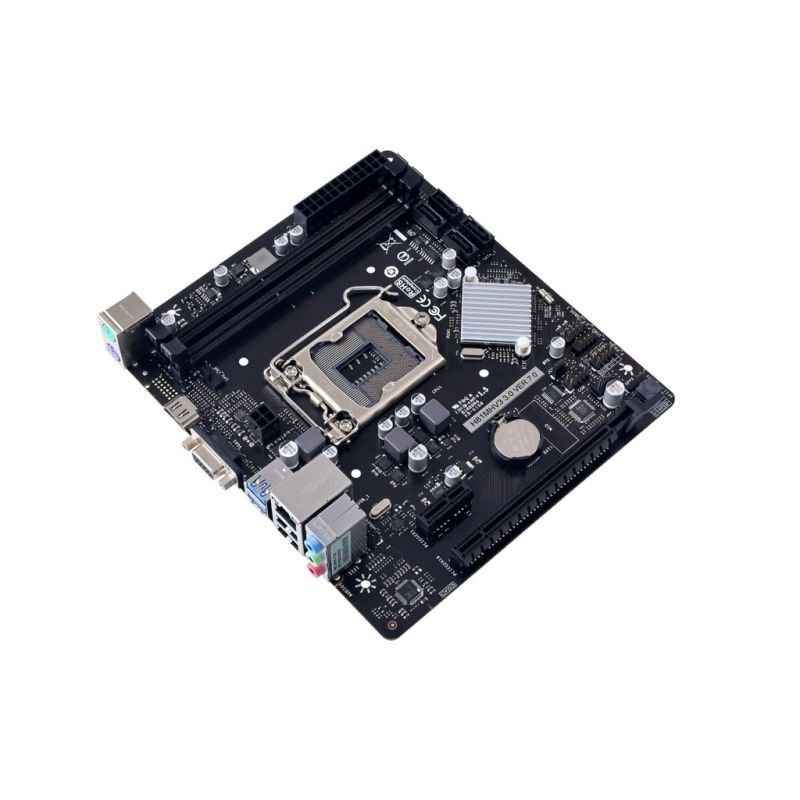

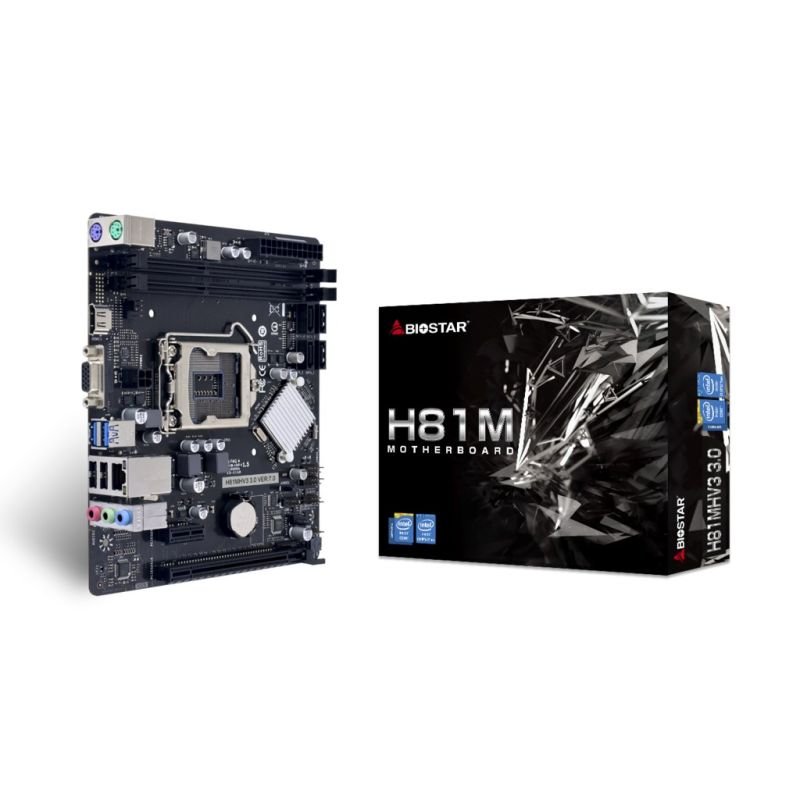

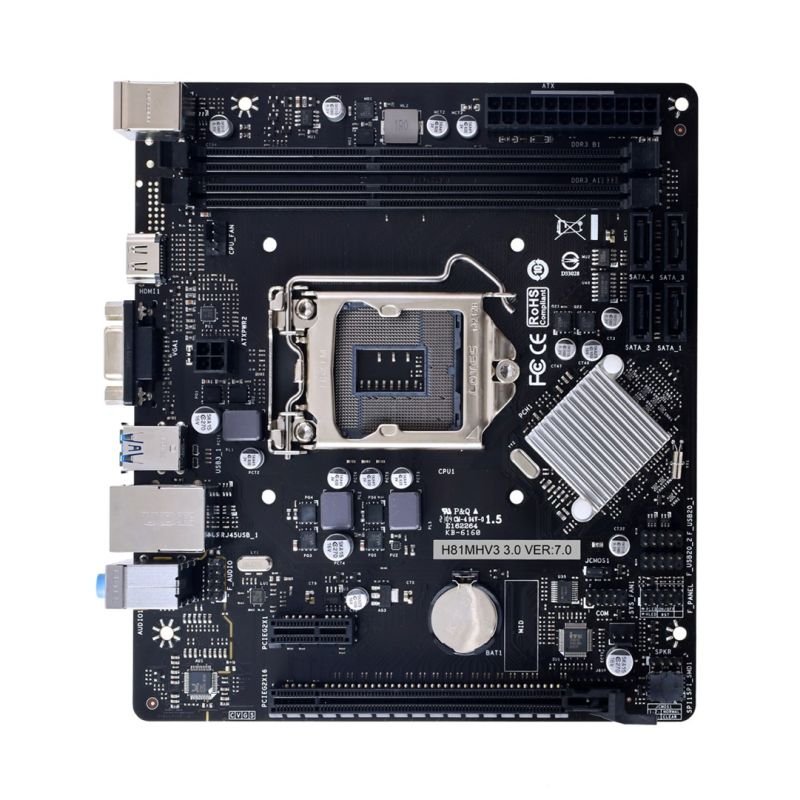

BIOSTAR H81MHV3 3.0 motherboard

Processor Maximum number of SMP processors: 1 Processor manufacturer: Intel Processor Intel® Core™ i5 Intel® Celeron® Intel® Core™ i7 Intel® Pentium® Intel® Core™ i3 Processor socket: LGA 1150 (Socket H3) Graphics HDCP: Yes DirectX Version: 11.1 Memory ECC Compatibility: Non-ECC Supported memory types: DDR3-SDRAM Number of memory slots: 2 Memory slot type: DIMM Memory Channel Support: Dual Channel Supported memory clock speeds 1600 MHz 1066 MHz 1333 MHz Maximum memory capacity: 16 GB Characteristics Supported Windows operating systems Windows 10 Windows 8 Windows 8.1 Windows 7 Chipset Board Family: Intel Motherboard format: Micro ATX Audio output channels: 5.1 ch. Motherboard Chipset: Intel® H81 Audio chip: Realtek ALC887 Weight and dimensions Product width: 170 mm Product depth: 190 mm Internal I/O Number of USB 2.0 ports: 2 CPU fan connector: Yes ATX power socket (24-pin): Yes Number of SATA III connectors: 2 Peripheral (Molex) Power Connectors (4-pin): 1 Front panel connector: Yes Front panel audio connector: Yes Number of SATA II connectors: 2 Network Ethernet interface type: Gigabit Ethernet Wi-Fi: No Wired LAN: Yes BIOS Clear CMOS Jumper: Yes Package contents Cables: SATA Memory drivers Supported hard drive interfaces: SATA II, SATA III Rear Panel I/O Ports Number of USB 2.0 ports: 2 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 Number of Ethernet LAN ports (RJ-45): 1 Number of PS/2 ports: 2 Headphone outputs: 3 Number of VGA (D-Sub) ports: 1 Number of HDMI ports: 1 Expansion slots PCI Express x16 (Gen 2.x) slots: 1 PCI Express x1 (Gen 2.x) slots: 1 Safety warning Warnings Do not place on conductive surfaces or in high humidity areas. Beware of static electricity, make sure you are grounded before installation. Do not interfere with the construction of the board or its components, as this may damage the equipment.
