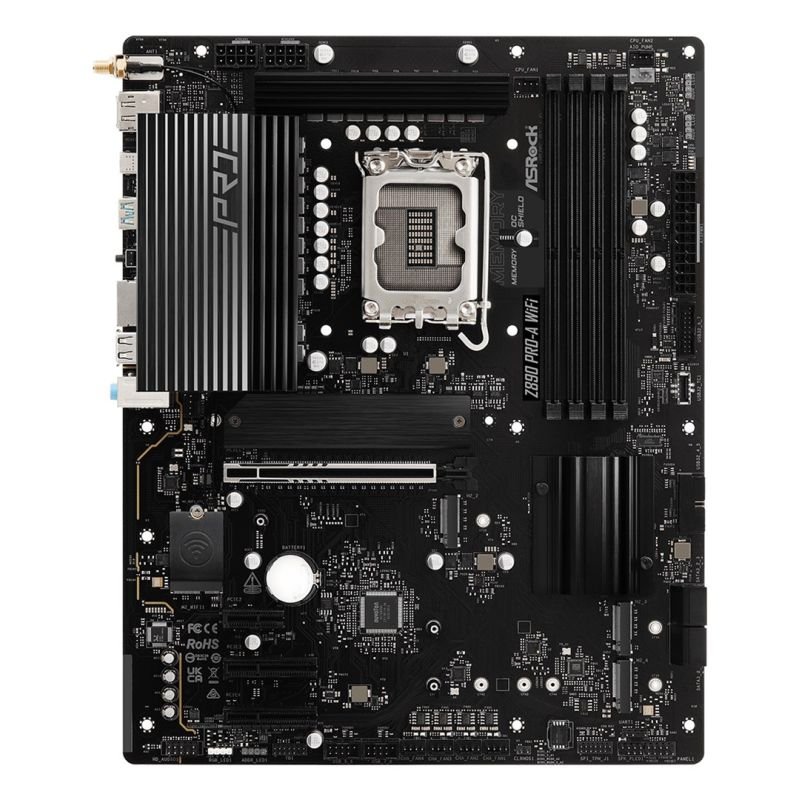

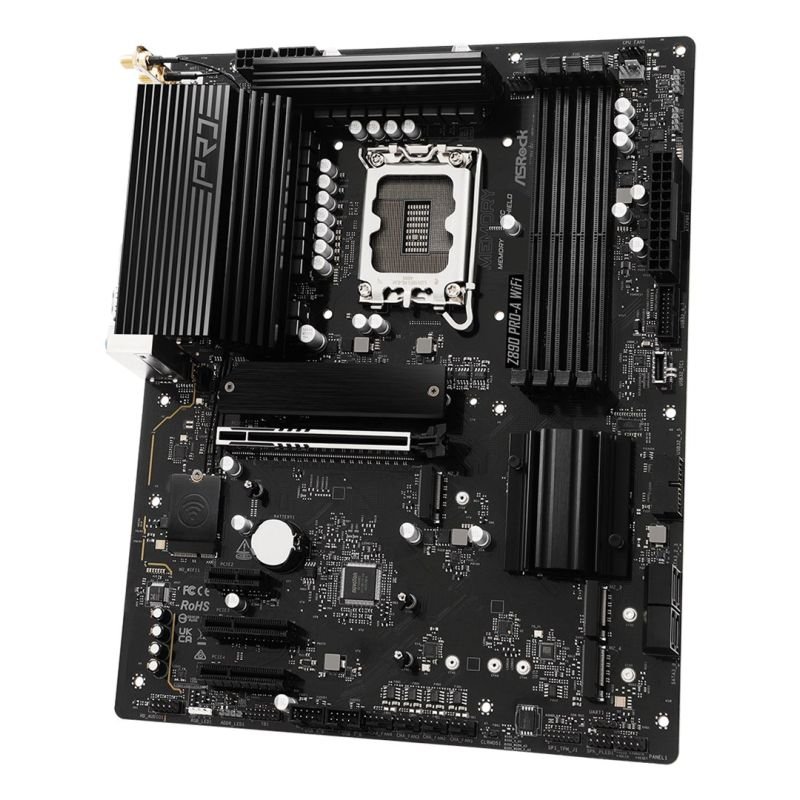

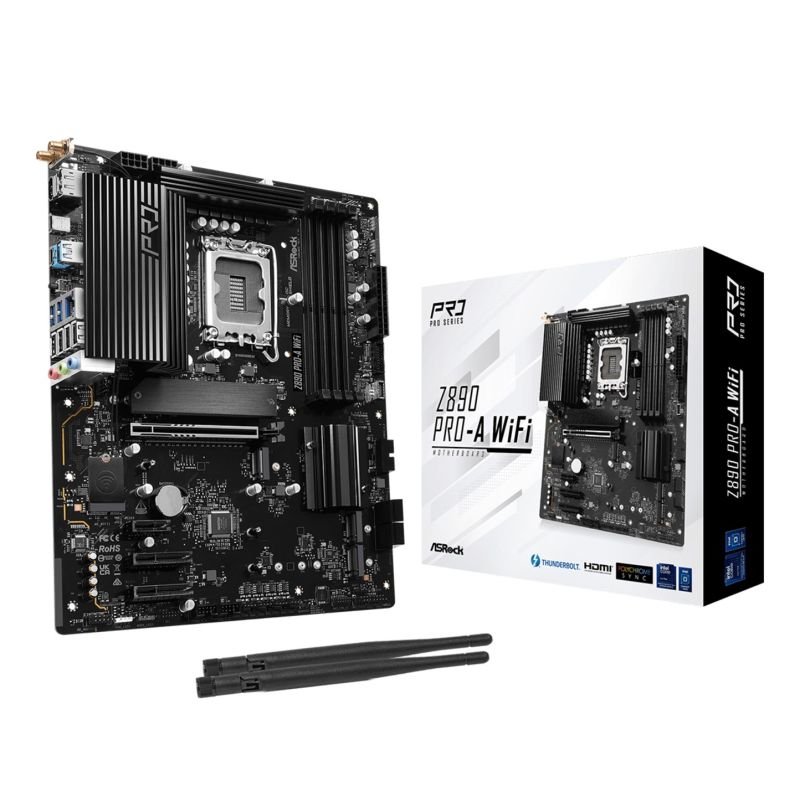

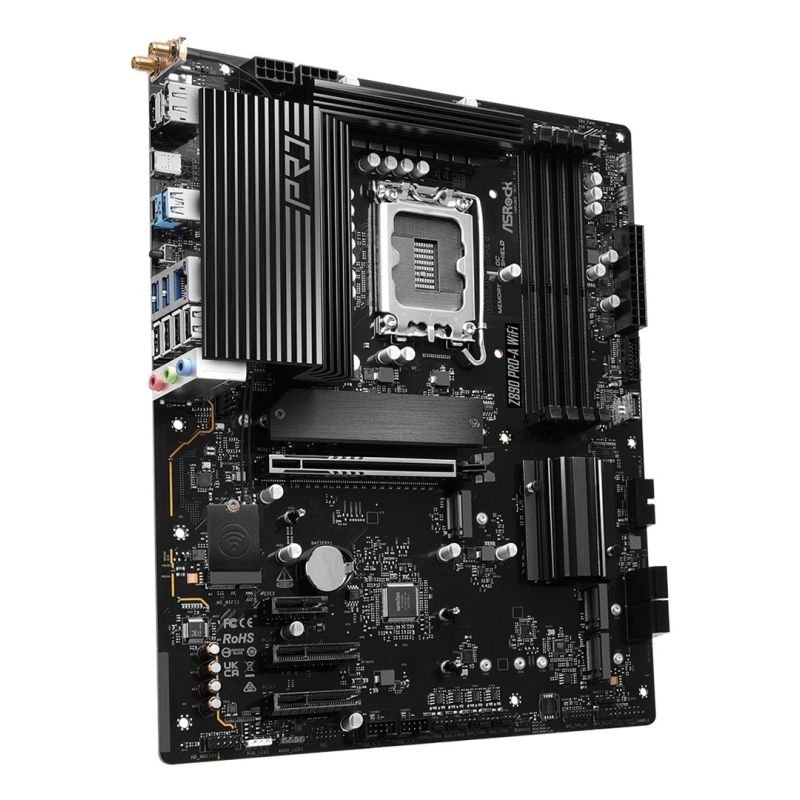

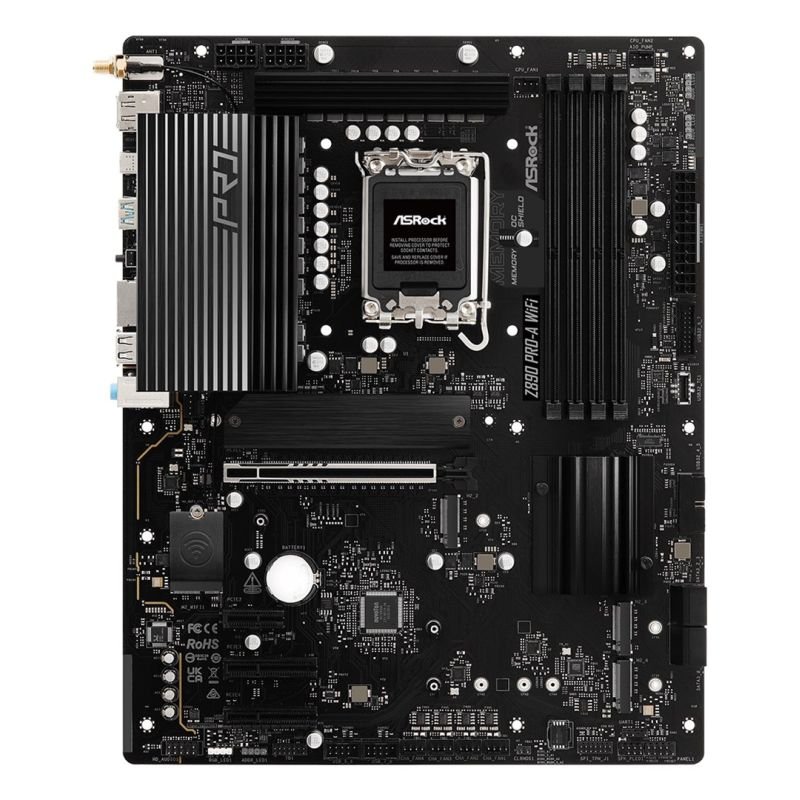

ASRock Z890 Pro-A WiFi Motherboard

Technical details Certificates of conformity Federal Communications Commission (FCC) CE Processor Processor: Intel Core Ultra (Series 2) Processor manufacturer: Intel Supported CPU sockets: LGA 1851 Processor socket: LGA 1851 (Socket V1) Memory Maximum memory capacity: 256 GB Unbuffered memory: Yes ECC Compatibility: Non-ECC Memory Channel Support: Dual Channel Number of memory slots: 4 Memory slot type: DIMM Supported memory types: DDR5-SDRAM Supported memory clock speed (max): 9066 MHz Characteristics Audio chip: Realtek ALC897 Supported Windows operating systems: Windows 11 x64 Motherboard format: ATX Chipset Board Family: Intel Audio output channels: 7.1 ch. Motherboard Layout: Intel Z890 Weight and dimensions Product depth: 244 mm Product width: 305 mm Internal I/O ATX power socket (24-pin): Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes TPM Connector: Yes Number of CPU fan connectors: 2 Number of case fan connectors: 5 Number of USB 2.0 ports: 2 USB 3.2 Gen 2×2 ports: 1 CPU fan connector: Yes Audio connector: Yes 12V power connector: Yes RGB LED: Yes Network Wi-Fi standards Wi-Fi 5 (802.11ac) 802.11g 802.11a Wi-Fi 6E (802.11ax) Wi-Fi 6 (802.11ax) 802.11b Wi-Fi 4 (802.11n) Basic Wi-Fi standard: Wi-Fi 6E (802.11ax) Bluetooth: Yes LAN controller: Dragon RTL8125BG Ethernet interface type: 2.5 Gigabit Ethernet Wired LAN: Yes Wi-Fi: Yes Bluetooth version: 5.3 BIOS BIOS Type: UEFI AMI Package contents Cables: SATA Screws Included: Yes Memory drivers Supported hard drive interfaces: M.2, SATA III Supported drive types: HDD & SSD RAID Service: Yes RAID levels 10 0 1 5 Number of supported storage drive sizes: 8 Number of supported HDDs: 4 Rear Panel I/O Ports Number of HDMI ports: 1 Microphone: Yes DisplayPort Quantity: 1 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1 Number of USB 2.0 ports: 4 Number of Ethernet LAN ports (RJ-45): 1 DisplayPort version: 1.4 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2 Line Input: Yes Number of Thunderbolt ports: 1 Headphone outputs: 1 Number of USB 3.2 Gen 2×2 Type-C ports: 1 Expansion slots PCI Express x1 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 PCI Express x4 slots (Gen 4.x): 2
