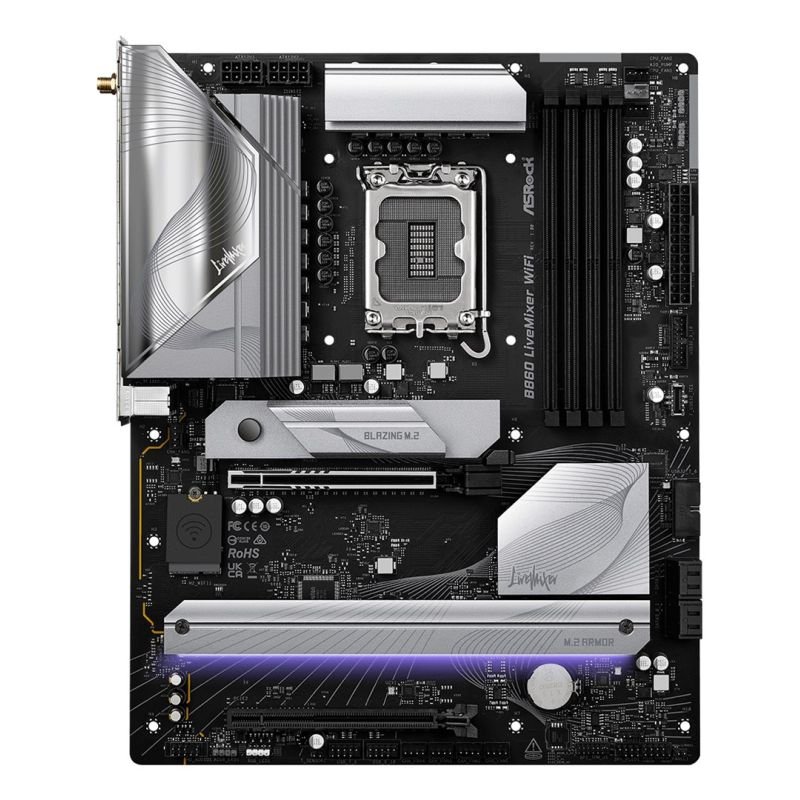

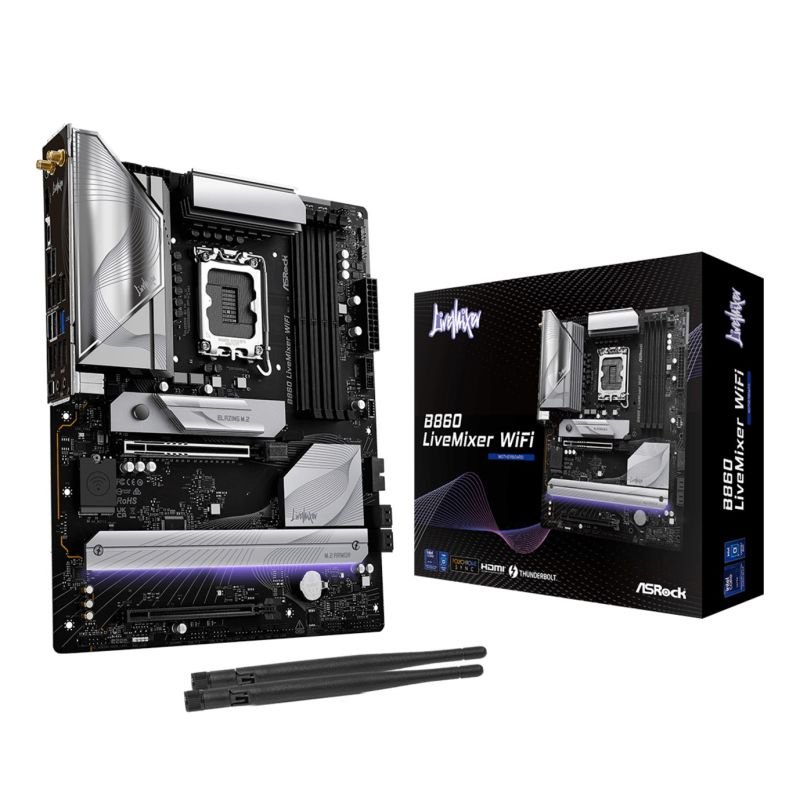

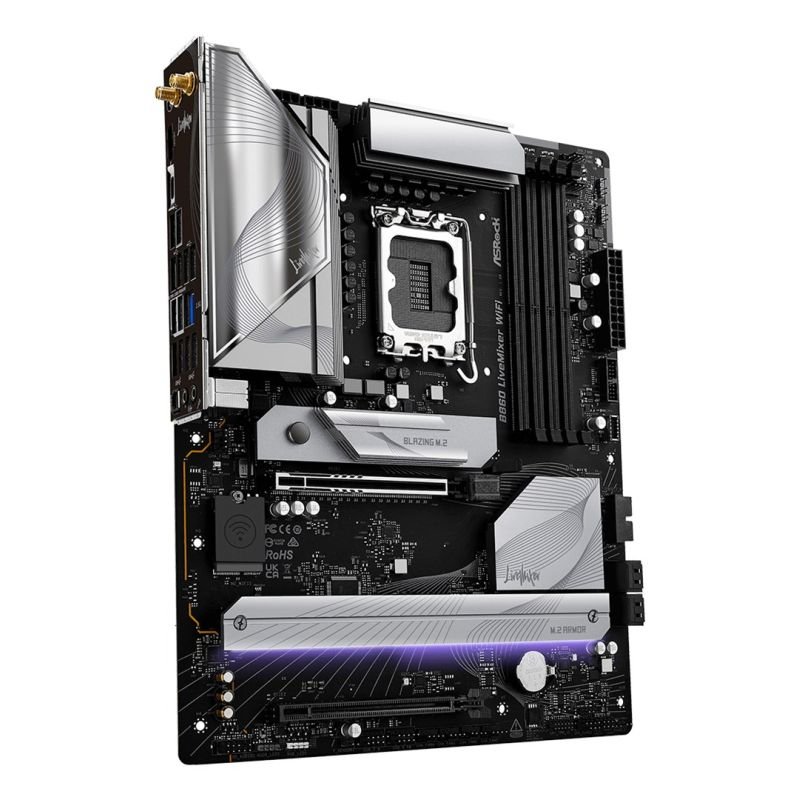

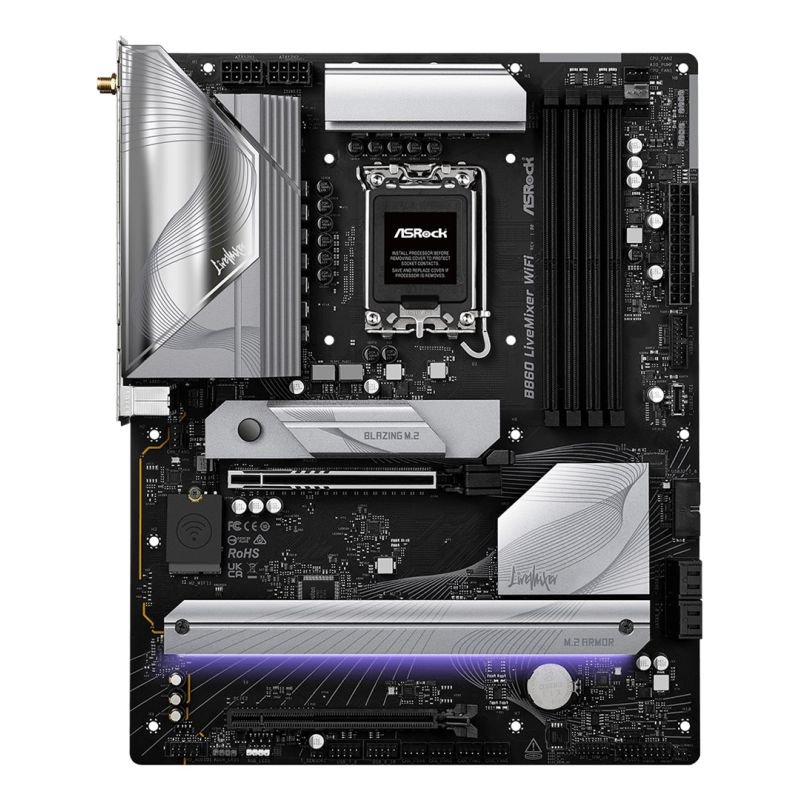

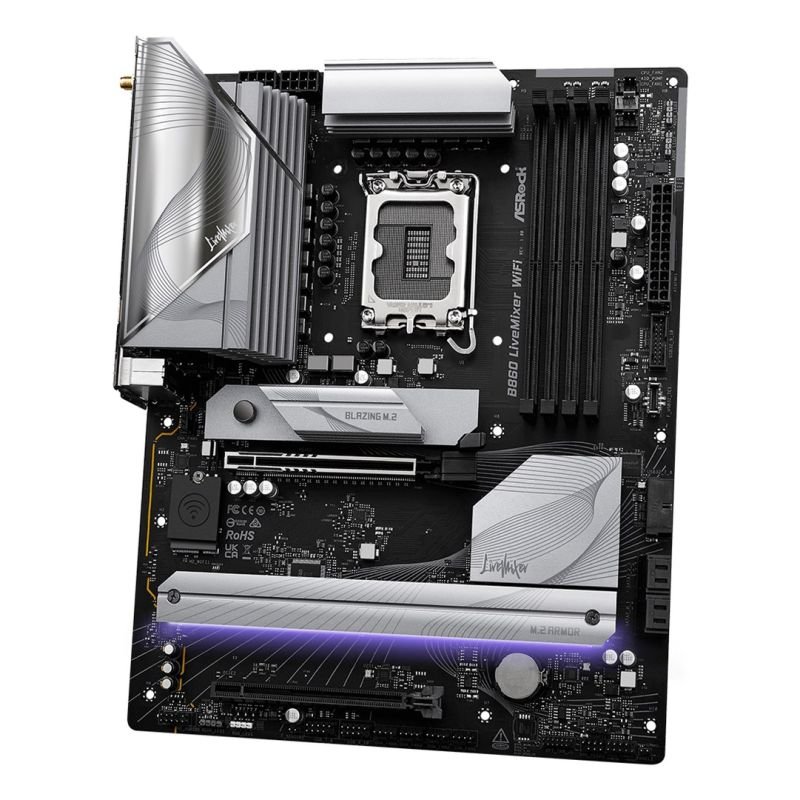

Asrock B860 LIVEMIXER WIFI Motherboard

Processor Processor: Intel Core Ultra (Series 2) Processor manufacturer: Intel Supported CPU sockets: LGA 1851 Processor socket: LGA 1851 (Socket V1) Graphics HDCP: Yes Parallel Processing Support: Not Supported Maximum resolution: 7680 x 4320 px Memory Memory slot type: DIMM Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory Channel Support: Dual Channel ECC Compatibility: Non-ECC Unbuffered memory: Yes Maximum memory capacity: 256 GB Characteristics Supported Windows operating systems: Windows 11 x64 Motherboard Layout: Intel B860 Motherboard format: ATX Audio output channels: 7.1 ch. Product color: Black Chipset Board Family: Intel Audio chip: Realtek ALC1220 Weight and dimensions Product width: 305 mm Product depth: 244 mm Internal I/O Number of CPU fan connectors: 2 EPS power supply connector (8-pin): Yes CPU fan connector: Yes 12V power connector: Yes TPM Connector: Yes Number of water pump connections: 1 Number of case fan connectors: 5 RGB LED: Yes Number of RGB LED connectors: 1 Number of EPS power connectors (8-pin): 2 Number of SATA III connectors: 4 ATX power socket (24-pin): Yes Number of USB 2.0 ports: 2 USB 3.2 Gen 1 (3.1 Gen 1) ports: 3 Front panel audio connector: Yes Network Wi-Fi standards Wi-Fi 6E (802.11ax) Wi-Fi 6 (802.11ax) 802.11b 802.11g 802.11a Wi-Fi 5 (802.11ac) Wi-Fi 4 (802.11n) Wired LAN: Yes Bluetooth version: 5.3 Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes Basic Wi-Fi standard: Wi-Fi 6E (802.11ax) Bluetooth: Yes LAN controller: Dragon RTL8125BG BIOS BIOS Type: UEFI AMI Package contents Cables: SATA Antenna Included: Yes Memory drivers RAID levels 1 10 5 0 Number of supported storage drive sizes: 7 Supported drive types: HDD & SSD Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III RAID Service: Yes Rear Panel I/O Ports Number of Thunderbolt ports: 1 HDMI version: 2.1 Microphone: Yes Headphone outputs: 1 WiFi-AP Antenna Jack Plug: 2 Number of HDMI ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6 Number of Ethernet LAN ports (RJ-45): 1 Supported USB type USB Type-C USB Type-A S/PDIF Output Port: Yes Number of USB 2.0 ports: 6 Expansion slots 2. M.2 highest generation PCI Express: 4.0 Number of M.2 (M) slots: 3 3. M.2 highest generation PCI Express: 4.0 2nd largest M.2 key size: 2280 1. M.2 highest generation PCI Express: 5.0 PCI Express x16 (Gen 4.x) slots: 1 1. largest M.2 key size: 2280 3. largest M.2 key size: 2280 PCI Express x16 (Gen 5.x) slots: 1 Safety warning Warnings If you experience any problems with installation, please contact a qualified service center. Do not open or modify the motherboard to prevent damage. When disposing of this product, please follow local regulations for electronics recycling.
