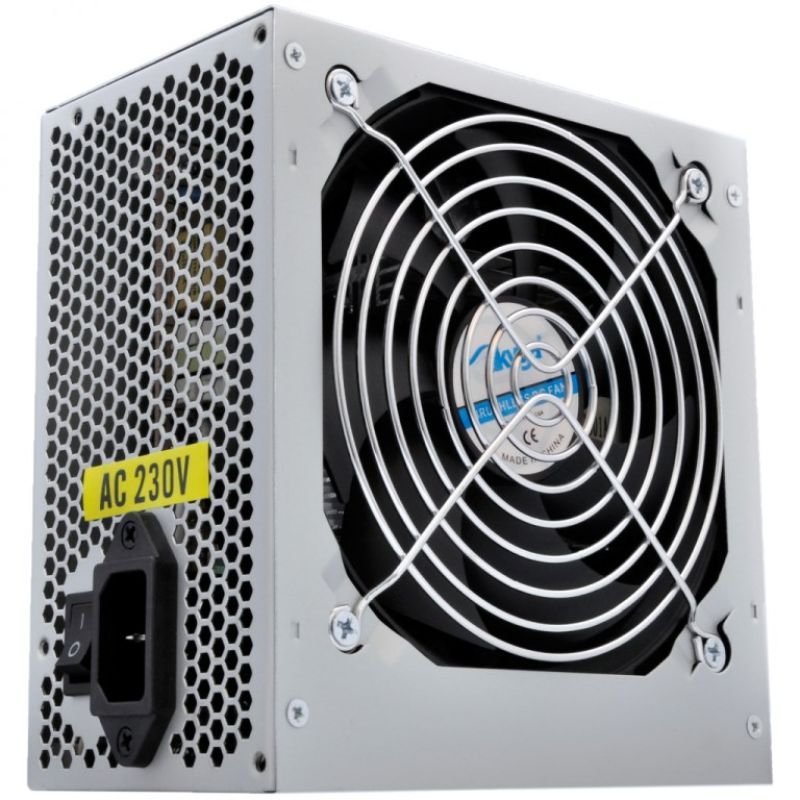

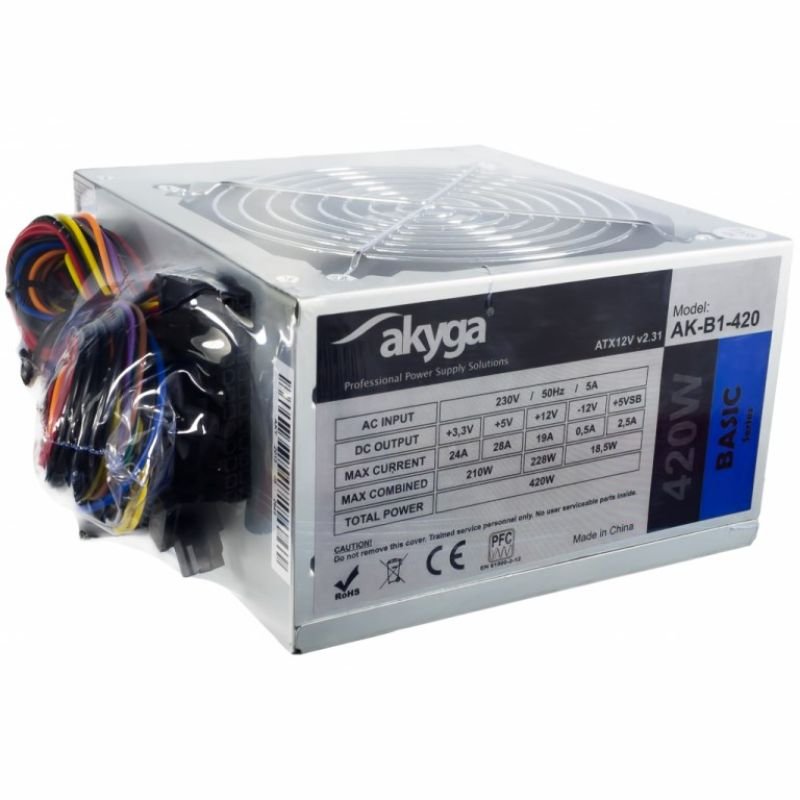

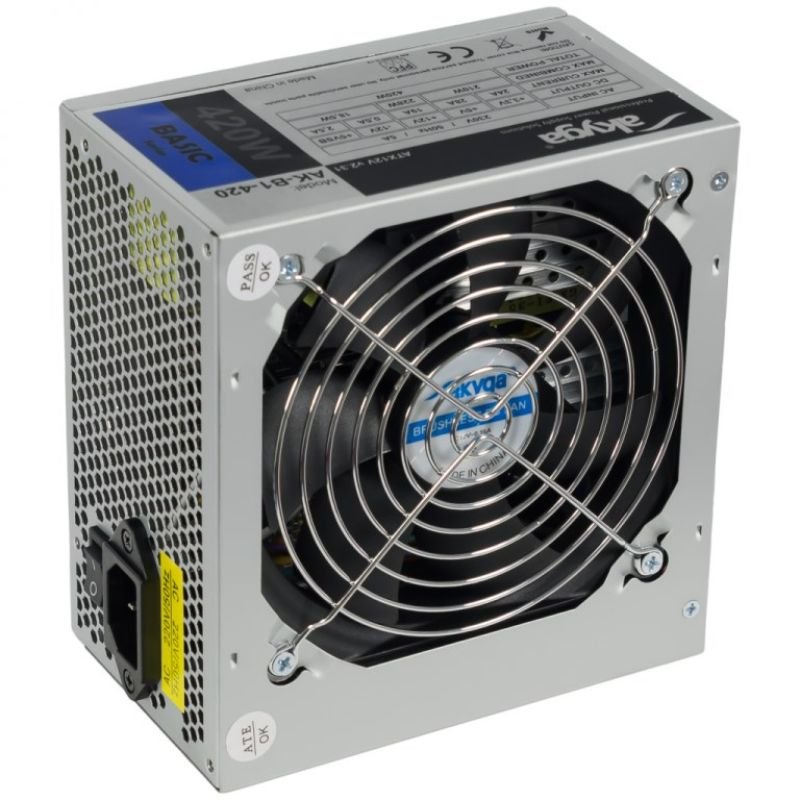

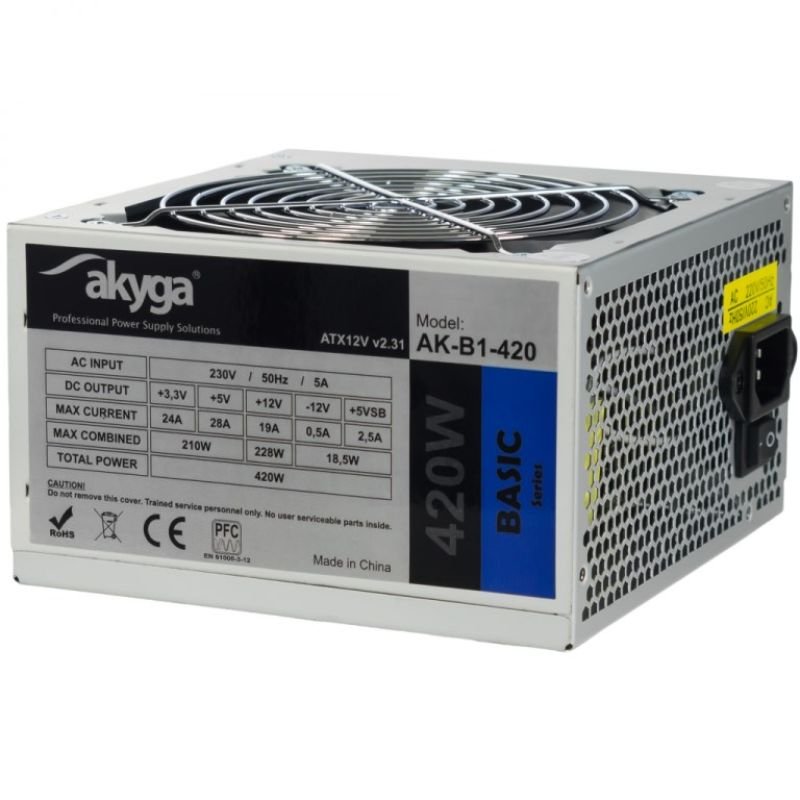

Akyga AK-B1-420 Power Supply (420 W; Passive; 120 mm)

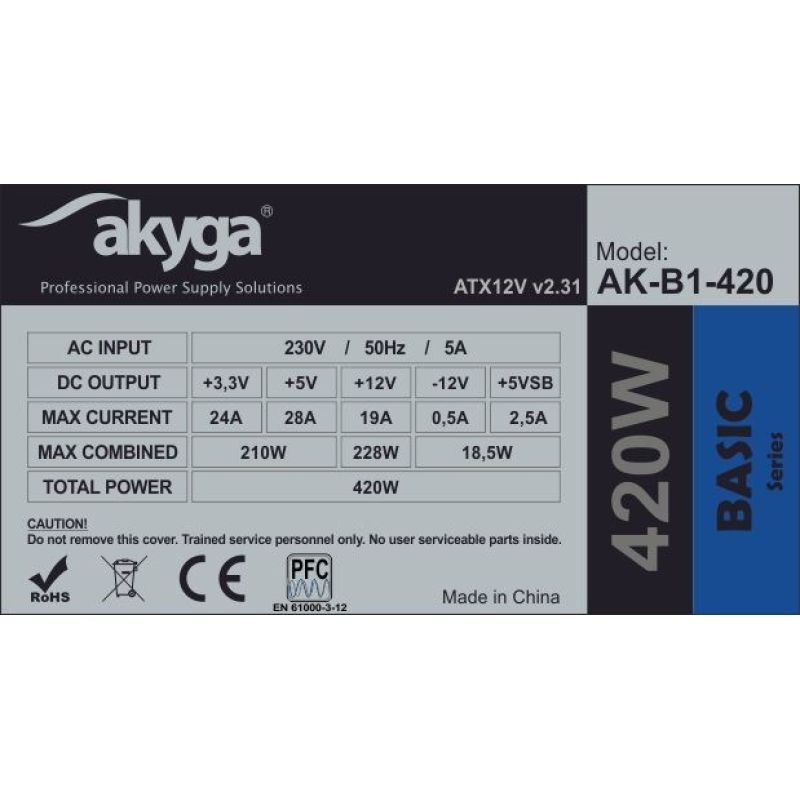

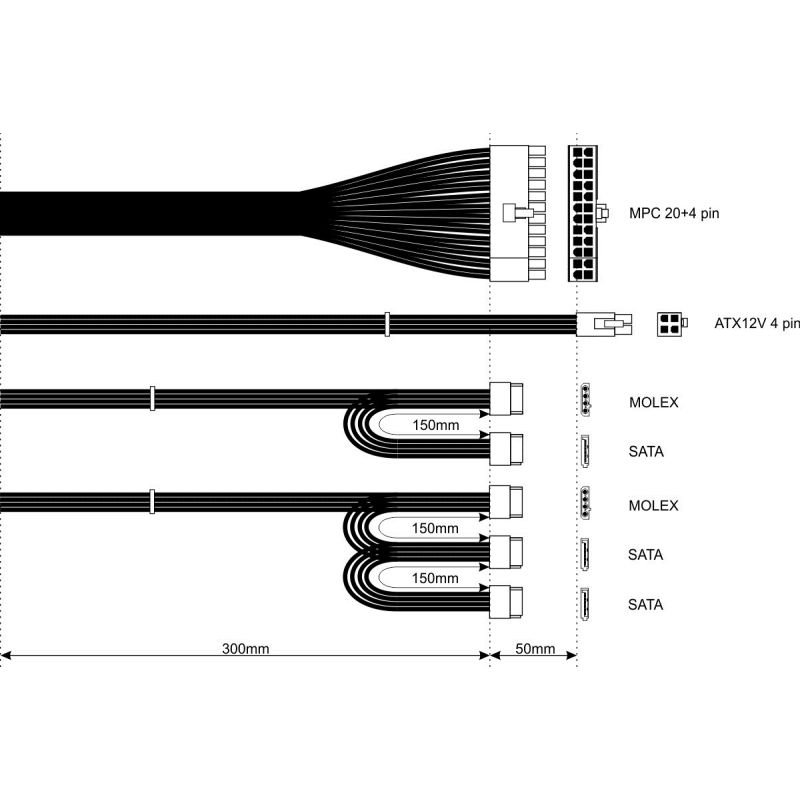

Technical details Environmental (sustainability) certification: RoHS Design Product color: Gray Power Maximum output current (+3.3V): 24 A Total power (-12V): 18.5 W Total power: 420 W AC input voltage: 230 V Total power (+3.3V): 210 W Power protection features Protection against overvoltage Overcurrent Overload protection Short circuit Low voltage protection AC input frequency: 50 Hz Maximum output current (+5 Vsb): 2.5 A Total power (+12V): 228 W Input current: 5 A Total power (+5V): 210 W Total power (+5 Vsb): 18.5 W Maximum output current (-12V): 0.5A Efficiency: 70% Maximum output current (+12V): 19A Maximum output current (+5V): 28A Weight and dimensions Product depth: 140 mm Product width: 150 mm Product height: 85 mm Product weight: 1.04 kg Working conditions Temperature range (operation): 5 – 50 °C Efficiency ATX version: 2.31 MTBF (Mean Time Between Failures): 100000 h Intended use: PC Power supply type (PSU): ATX Packaging data Packaging type: Box Package depth: 196 mm Package width: 151 mm Weight with packaging: 1.05 kg Package height: 86 mm Ports and interfaces Peripheral (Molex) Power Connectors (4-pin): 2 P4 CPU connector (4-pin): 1 ATX Power Supply Connector (20-pin): Yes Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 3 Safety warning Warnings Do not open the housing – risk of electric shock. Avoid contact of the product with water or other liquids. The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
